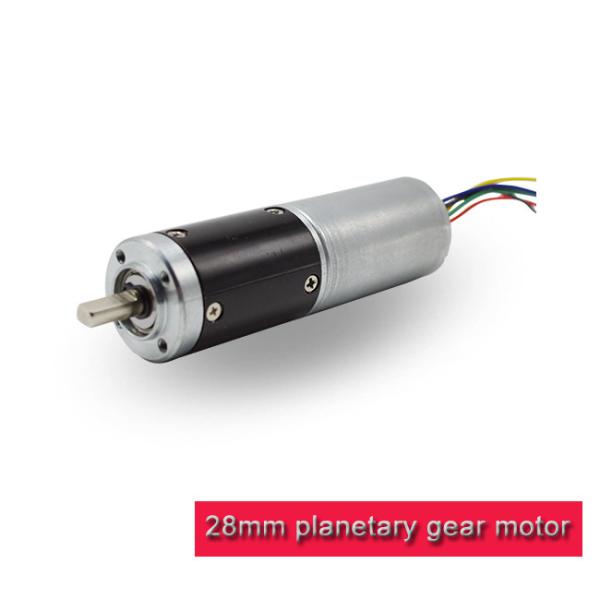

28mm metal planetary gearbox with brushless dc motor for smart robots

Model: 28PA2838

Tytical Application:

Electric Curtains

Smar robots

Vending Machine

ATM

Printer

Precision Instruments

Features:

Combine with 28mm brushless dc motor

Shaft can be custom made such as threaded shaft

Special customized gears available

Oil-impregnated bearing or ball bearing

28mm high precision metal planetary gearbox

1-4 gear stage

Speed 10rpm-500rpm

output power 2.0-40.0W

Rated torque 5kg.cm-20kg.cm

The brushless dc motor can control the speed via PWM, and brake function available.

Pin arrangement

1. VCC (red wire)

2. FG (Green wire)

3. CW/CCW (Yellow wire)

4. GND (black wire)

5. PWM (Blue wire)

Product Showcase:

Outline Drawing:

​

Gearbox Reduction Ratio:

Motor Performance:

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

28PA2838.pdf

Why Us

1. 100% inspection in production.

2. fast response within 24h

3. Professional experts at both gearbox and motors

4. All the gears are produced by hobbing machine

5. Experienced sales engineer for international communication

6. Accessories available
