36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor
36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor
36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor
36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor
Specifications
Brand Name :
Tronsun Motor
Model Number :
36PA545
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
micro planetary gear motor
Gearbox Size :
36mm
Voltage Range :
3-24v
Gear Reduction Ratio :
3.7/1-3736/1
Motor Type :
Brush dc motor
Typical Appliacation :
Home appliance
Rotation :
CW/CCW
Motor :
RS-545 dc motor
Description

High Torque 36mm metal planetary gear motor with 12v 24v RS 545 555 brush dc motor for Robots

Model: 36PA545 / 36PA555

Tytical Application:

Robots

Smart home appliance

Electric toys

Vending machine

Features:

Combine with RS-545 555 carbon brush dc motor

Shaft can be custom made such as threaded shaft

Special customized gears available

Encoder available

Oil-impregnated bearing or ball bearing

36mm high precision metal planetary gearbox

1-5 gear stage, 3.7/1-3736/1 ratio

10-50kg.cm rated torque

Cooling fan available

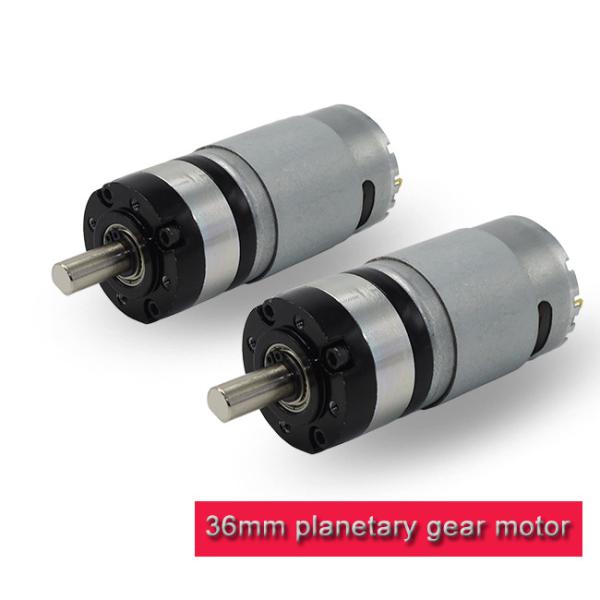

Product Showcase:

36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor

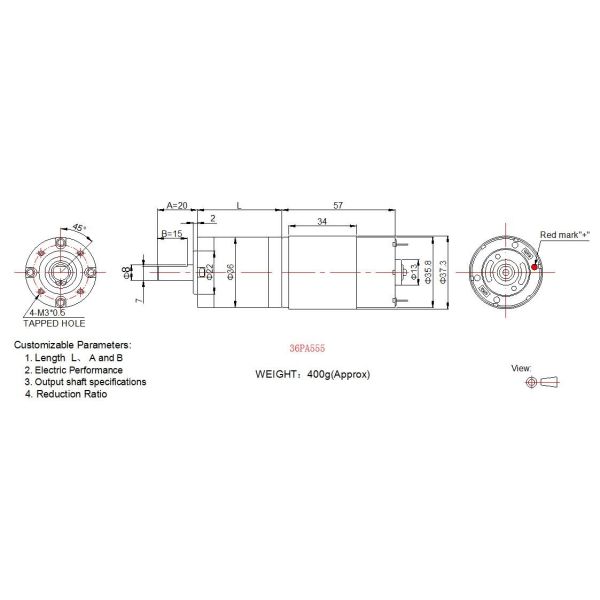

Outline Drawing:

36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor​

36mm Metal High Torque Planetary Gear Motors With RS 545 555 Brush DC Motor

Gearbox Reduction Ratio:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
26.5 1 3.7/1 5.2/1 8.0 20.0
34.5 2 14/1 19/1 27/1 15.0 30.0
42.5 3 51/1 71/1 100/1 139/1 25.0 50.0
50.5 4 189/1 264/1 369/1 515/1 721/1 30.0 60.0
58.5 5 977/1 1367/1 1910/1 2671/1 3736/1 45.0 80.0

Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
36PA545-5.2-121200 5.2/1 5.0~13.0 12.0 1200 0.43 1005 2.28 1.4 14.43 8.6 11.95
36PA545-27-12230 27/1 5.0~13.0 12.0 230 0.43 193 2.26 6.3 12.47 39.3 11.95
36PA545-100-1260 100/1 5.0~13.0 12.0 60 0.43 51 2.26 20 10.46 129.6 11.95
36PA545-264-2432 264/1 60~25.0 24.0 32 0.17 27 0.9 36 9.97 236.9 5.2
36PA545-977-2409 977/1 6.0~25.0 24.0 9 0.43 8.3 0.58 60 5.11 783.9 5.2


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
36PA555-19-12560 19/1 5.0~13.0 12.0 560 0.75 480 4.5 5.5 27.08 38.5 27.6
36PA555-71-12150 71/1 5.0~13.0 12.0 150 0.75 129 4.5 18 23.82 127.8 27.6
36PA555-139-1276 139/1 5.0~13.0 12.0 76 0.75 65 4.6 35 23.33 243.5 27.6
36PA550-264-2428 264/1 60~25.0 24.0 28 0.28 25 1.15 40 10.26 400.7 9
36PA550-27-24270 27//1 6.0~25.0 24.0 270 0.43 216 1.8 10 22.15 50.3 9

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

36PA545.pdf

36PA555.pdf

Our Advantages:

1. Fast response within 24h

2. Professional sales team

3. Experts at both gearbox and motor

4. All gears are produced by hobbing machine

5. 100% inspection

6. Fast delivery

7. Sample available.

8. Small trial order available.

FAQ
Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!

Q: Can you make a motor with custom specifications?

A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.

Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.

Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.

Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
