L Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded Shaft
L Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded Shaft
L Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded Shaft
L Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded Shaft
Specifications
Brand Name :
Tronsun Motor
Model Number :
38GF520/38GF3530
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
DC motor gearbox high torque
Gearbox Size :
38*64mm
Voltage Range :
3-24v
Gear Reduction Ratio :
36/1-450/1
Motor Type :
Carbon brush motor
Typical Appliacation :
Medical instruments
Rotation :
CW/CCW
Encoder :
Available
Description

High torque L shape 12v 24v dc spur gear motor with threaded shaft for medical instruments

Model: 38GF520/38GF3530

Characters:

Carbon brush dc motor

Encoder available

Shaft can be custom made

High torque spur gearbox

L shape high precision gearbox

Bi-direction

Tytical Application:

Vending machine

Printer

Valve

Home appliance

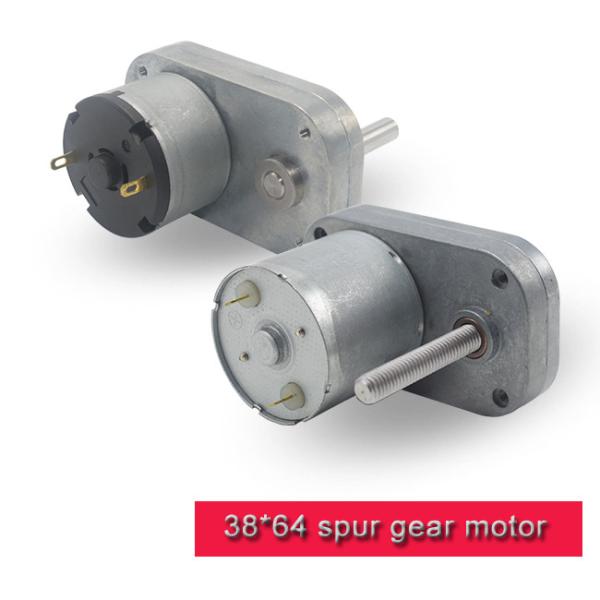

Product Showcase:

L Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded Shaft

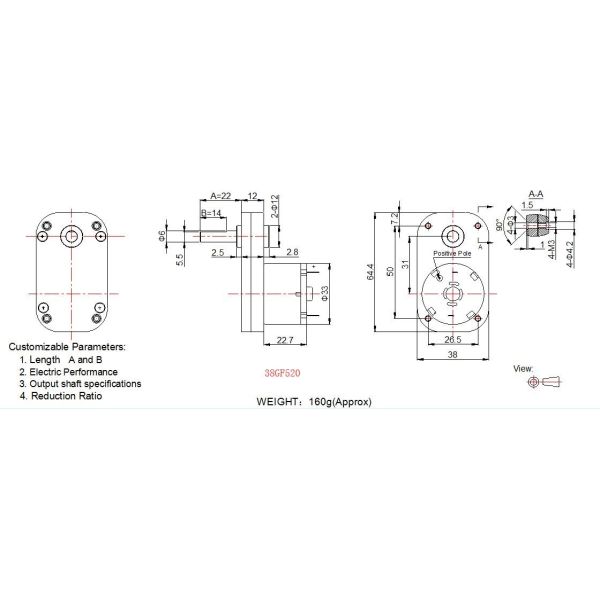

Outline Drawing:

L Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded ShaftL Shape DC Spur Gear Motor 12v 24v High Torque DC Motor With Threaded Shaft​

Gearbox Reduction Ratio:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
64.4 x 38 x 12 3 36/1 40/1 60/1 67/1 3.0 6.0
4 85/1 90/1 114/1 120/1 200/1 6.0 10.0
4 96/1 101/1 128/1 135/1 225/1 8.0 15.0
5 400/1 450/1 10.0 20.0

Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
38GF520-36-12160 36/1 5.0~14.0 12.0 160 0.05 133 0.3 1.0 1.36 6.1 1.6
38GF520-135-1242 135/1 5.0~14.0 12.0 42 0.05 36 0.28 3.0 1.11 20.9 1.6
38GF520-225-1225 225/1 5.0~14.0 12.0 25 0.05 22 0.28 5.0 1.13 34.9 1.6
38GF520-450-1212 450/1 5.0~14.0 12.0 12 0.05 10 0.3 10.0 1.03 62.4 1.6


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
38GF3530-36-12180 36/1 5.0~14.0 12.0 180 0.09 152 0.8 2.0 3.12 13.5 4.5
38GF3530-67-1296 67/1 5.0~14.0 12.0 96 0.09 80 0.8 4.2 3.45 26.2 4.5
38GF3530-135-1248 1351 5.0~14.0 12.0 48 0.09 42 0.64 6.5 2.80 52.0 4.5
38GF3530-450-1214 450/1 5.0~14.0 12.0 14 0.1 12.5 0.64 15.0 1.92 145.0 4.5

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

38GF520.pdf

38GF3530.pdf

FAQ

Q: What's the main usage of the micro dc gear motor?
A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
