12v 24v High Torque DC Motor 42mm Diameter 35mm Length With Ball Bearing
12v 24v High Torque DC Motor 42mm Diameter 35mm Length With Ball Bearing
12v 24v High Torque DC Motor 42mm Diameter 35mm Length With Ball Bearing
12v 24v High Torque DC Motor 42mm Diameter 35mm Length With Ball Bearing
Specifications
Brand Name :
Tronsun Motor
Model Number :
BL4235I
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
small high torque DC motor
Voltage Range :
6v-24v
Diameter :
42mm
Bearing :
Ball Bearing
Shaft diameter :
5.0
Application :
Power tools
Length :
35mm
Housing :
Metal
Description

High Torque 42mm diameter 35mm length 12v 24v brushless dc motor for power tool

Model No.: BL4235I

Application:

Home appliance

Vacuum cleaner

Smart Robots


Description:

Inner PCBA driving

Current Limit protection function

PWM Control

FG output

CW/CCW control

Low EMI

Low noise

Brake function

Lifetime more than 20000h

Motor Teminals:

No. Pin Arrangement
1 VCC
2 FG
3 CW/CCW
4 GND
5 PWM
6 Brake

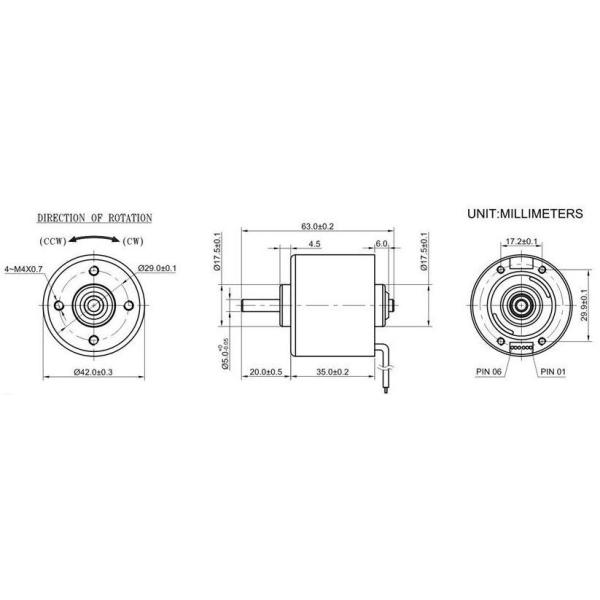

2D Drawing:
12v 24v High Torque DC Motor 42mm Diameter 35mm Length With Ball Bearing

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
BL4235I-V1 8.0~16.0 12.0 2860 0.21 2288 0.874 282.5 27.69 6.629 1412.3 138.41 3.529
BL4235I-V2 8.0~26.0 18.0 4290 0.25 3518 1.127 381.3 37.37 13.76 2118.5 207.61 5.123
BL4235I-V3 8.0~26.0 24.0 5200 0.30 4160 1.214 457.1 44.80 15.91 2285.7 224 4.871



Product Showcase:

12v 24v High Torque DC Motor 42mm Diameter 35mm Length With Ball Bearing

FAQ

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.

Q: Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
