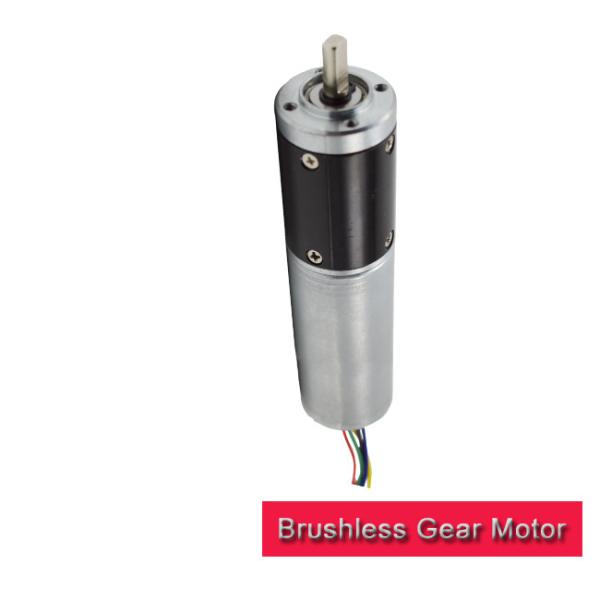

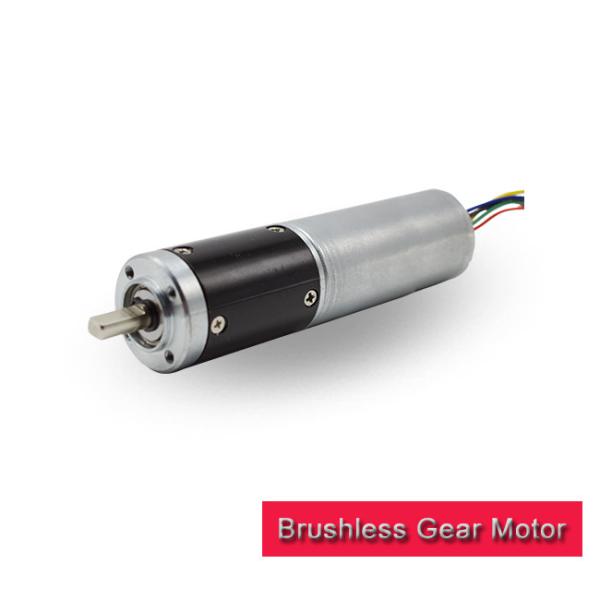

High torque 28mm brushless planetary gear motor with 12v 24v bldc motor for electric curtains

Model: 28PA2847

Tytical Application:

Smart Robots

Precious instruments

Electric curtains

Home appliance

Features:

Combine with high quality 28mm brushless dc motor

12 volt to 24 volt Voltage

Shaft can be custom made such as threaded shaft

28mm planetary gearbox

Special customized gears available

1-4 stage gearbox, 3.7/1-721/1 reduction ratio

Lifetime more than 2000h

Rated torque 10-20kg.cm

Ball bearing available

Lifetime more than 3000h

-20℃ operating temperature

Pin Arrangement

1. Vcc , Red

2. FG , Green

3. CW/CCW, Yellow

4. GND, Black

5. PWM, Blue

Product Showcase:

Outline Drawing:

​

Gearbox Reduction Ratio:

Motor Performance:

The Shaft and the motor performance such as voltage and speed can be custom made.

Pls find the PDF spec for referrence.

28PA2847.pdf

Our Advantages:

Professional international sales team.

Experts at gearbox and motor

Quickly response within 24h

100% inspection during production

High quality export package

High quality IC components

Long lifetime bldc motor

Express Delivery:

Fedex, UPS, TNT, HK DHL

FAQ

Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.
