High Efficiency DC Vibration Motor 12mm Diameter RF-1230CA-Z With Brass Vibrator
High Efficiency DC Vibration Motor 12mm Diameter RF-1230CA-Z With Brass Vibrator
High Efficiency DC Vibration Motor 12mm Diameter RF-1230CA-Z With Brass Vibrator
High Efficiency DC Vibration Motor 12mm Diameter RF-1230CA-Z With Brass Vibrator
Specifications
Brand Name :
Tronsun Motor
Model Number :
RF-1230CA-Z
Certification :
RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25-35 days
Packaging Details :
TBD
Product Name :
3v mini vibration motor
Voltage Range :
1.5v - 6v
Diameter :
12mm
Material :
RoHS material
Rotation Direction :
CW/CCW
Usage :
Beauty product
Brush :
Metal brush
Shaft :
Stainless steel
Description

high speed mini 12mm dc vibration motor with brass vibrator for adult toy
Mode No.: RF-1230CA

Applications:

Sex toys

Adult toys

Massager product

Features:

Plastic end cap

Copper or SECC eccentric wheel

Permanent magnet

3 slots rotor

12mm*30mm housing

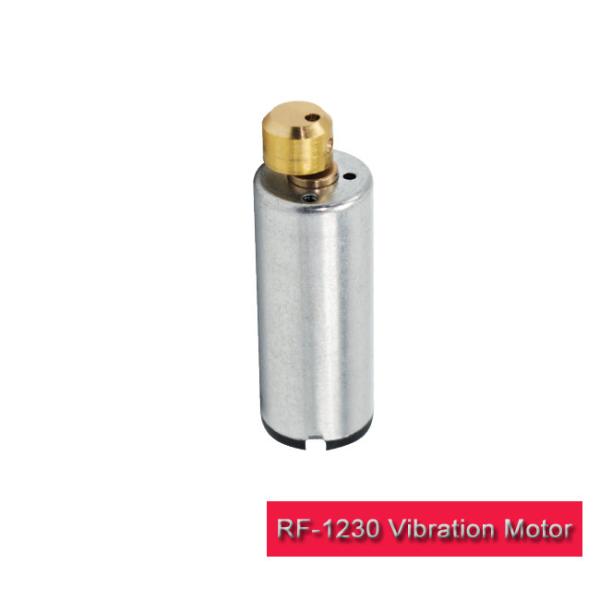

Product Showcase:


High Efficiency DC Vibration Motor 12mm Diameter RF-1230CA-Z With Brass Vibrator

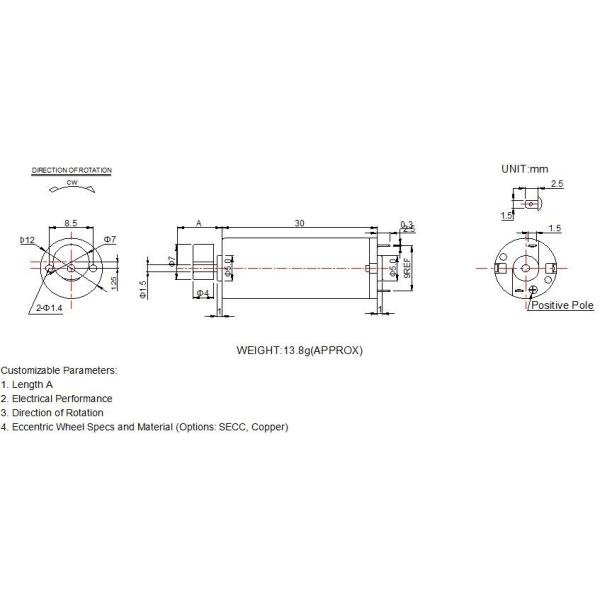

Outline Drawing:

High Efficiency DC Vibration Motor 12mm Diameter RF-1230CA-Z With Brass Vibrator


Motor Performance:

MODEL VOLTAGE VOLTAGE RATED PERFORMANCE STALL CURRENT
VOLTAGE RANGE NOMINAL SPEED CURRENT LOAD
V V rpm A mm A
RF-1230CA-1575 Φ7×4.0 1.0-2.0 1.5 0.8 6000 0.95 Φ7×4.0 0.75
RF-1230CA-1578 Φ7×7.0 2.0-6.5 6 0.6 16500 0.71 Φ7×7.0 2.45
RF-1230CA-12120 Φ7x4.0 2.0-5.5 5 0.8 11800 0.13 Φ7x4.0 0.91


The shaft length and motor performance can be custom made, such as the voltage and speed.

FAQ

Q: What's your main products?
A: Dia4~42mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.

Q: What's the main usage of the micro dc gear motor?
A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
