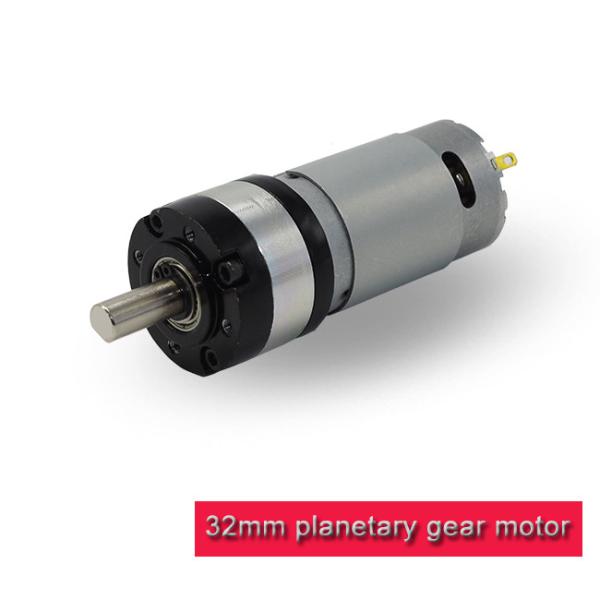

High Torque 32mm planetary gear motor with RS 395 dc motor for precision instruments

Model: 32PA395

Size: 32mm*96mm

Tytical Application:

Smart Home appliance

Electric Curtains

Smar robots

Printer

Precision Instruments

Features:

Combine with 28mm brushless dc motor or RS-380 390 carbon brush dc motor

Shaft can be custom made such as threaded shaft

Special customized gears available

Encoder available

Oil-impregnated bearing or ball bearing

32mm high precision metal planetary gearbox

1-4 gear stage

Speed 10rpm-500rpm

output power 2.0-20.0W

Rated torque 5kg.cm-20kg.cm

Product Showcase:

Outline Drawing:

​

Gearbox Reduction Ratio:

Motor Performance:

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

32PA395.pdf

Our Advantages:

1. Fast response within 24h

2. Professional sales team

3. Experts at both gearbox and motor

4. All gears are produced by hobbing machine

5. 100% inspection

6. Fast delivery

7. Sample available.

8. Small trial order available.

FAQ

Q: Do you have motors in stocks?

A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.

Q: What is the payment terms?

A: T/T, Western Union, Paypal, etc, easy for your business.

Q: What information you need provide if you want we recommend motors for you?

A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
