High Efficiency Rock Drilling Machine D545 Semi High Air Pressure Impactor
High Efficiency Rock Drilling Machine D545 Semi High Air Pressure Impactor
Specifications
Brand Name :
JYS
Model Number :
D545
Place of Origin :
China
MOQ :
1 Unit
Price :
By email. CNY, USD, EURO
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 units per year
Delivery Time :
45 working days
Packaging Details :
Standard Package, Delivered by RORO or Bulk Cargo
Certification :
ISO9001,ISO14001
High Quality Steel :
Yellow and Grey
Warranty :
1 year
Usage :
Ore, Coal, Water Well, mining used, Rock drilling
Condition :
Brand New
Type :
Rotary Drilling Rig, Core Drilling Rig, petrol breaker, ROCK DRILLING RIG After-sales service provided Engineers available to service machinery overseas
Drilling depth :
20m
Product name :
Quarry Blasting Borehole Mining Electric Hard Rock Drilling Machine
Color :
Yellow, Customize
Drilling diameter :
108mm-127mm
Feature :
High Drilling Efficiency
Description

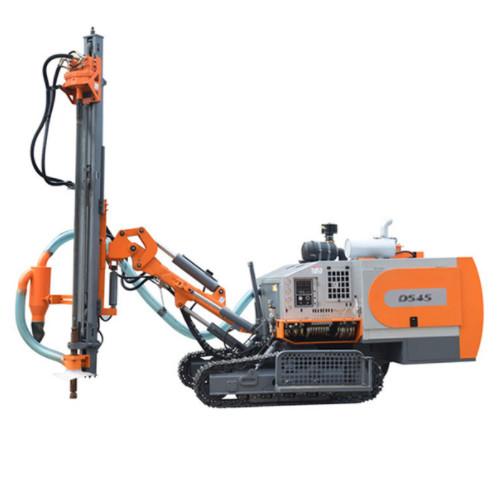

High Efficiency Rock Drilling Machine D545 Semi High Air Pressure Impactor

Advanced design conception and come out with great performance over cost value !!

1. Fixed International famous Cummins Engine.

2. Automatic Lubrication system to save the time and avoid the hard work of the mechanics. It also to extend the life time the machine.

3. Dust collector, with Two- stage dry type more powerful .

4. Feeding system, Fixed with Hydraulic braking motor, Chains , Sprocket with wheels and hoses to realizy fast and slow feeding and lifting .

5. Heavy duty chassis and oscillation oil cylinder then powerful off-road performance

(Hole deepth 1 rod 20m)

D545 Full Hydraulic Top Hammer Surface Drill Rig
Engine
Engine Model 6BTAA8.3-C260 (Tier II) 　
Rated Power 194KW 　
Rated Rotation Speed 2200 Rpm 　
Main specification
Working Pressure 17Bar Track Osillation ±14° 　
Displacement 15M3/min DTH Hammer 4' 　
Hole Diameter Range φ108-127 mm Rotary Torque 2479 N.M 　
Number of Rod 6+1 Rod Length 3000mm 　
Hole Depth 20m Feed Type Cylinder/ Chain 　
Length of Feed Beam(Total) 5340mm Feed Traveling Length 3200mm 　
Feed Extention 1200mm Max. Feed Speed 0.75m/s 　
Feed Force 21KN Max. Pulling Force 40KN 　
Traving Speed 3.0Km/h (high) Driving Force(Max) 71KN 　
2.0km/h (low) 　 　 　
Gradeability 25° 　 　 　
Capacity of FuelTank 420L Measure Size(LXWXH) 7100X2500X2800 mm 　
Ground Clearance of Chassis 360mmm Weight (Options Excluded) 10500Kg 　
