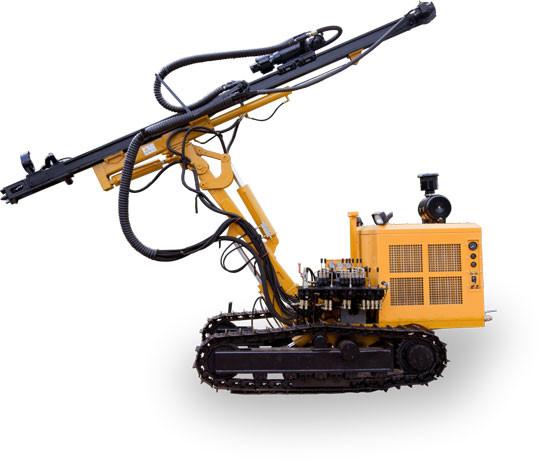

Hydraulic Rock Drilling Machine Surface Drill Rig HC728 Diesel Power Type
Hydraulic Rock Drilling Machine Surface Drill Rig HC728 Diesel Power Type
Hydraulic Rock Drilling Machine Surface Drill Rig HC728 Diesel Power Type
Hydraulic Rock Drilling Machine Surface Drill Rig HC728 Diesel Power Type
Specifications
Brand Name :
JYS
Model Number :
HC728 ;CYJ55
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation by Email. CNY,USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1800 Units per year
Delivery Time :
45 Working days
Packaging Details :
Naked or customized
Warranty :
1 Year
Usage :
mining used,Rock drilling
Condition :
New
Power type :
Diesel
Type :
ROCK DRILLING RIG
After-sales service provided :
Overseas third-party support available,Online support,Video technical support
Drilling depth :
30 m
Color :
Yellow,white
Drilling diameter :
30-42mm
Air consumption :
11-21 m3/min
Description

Hydraulic Rock Drilling Machine Surface Drill Rig HC728 Diesel Power Type

HC728 Track surface drilling Rig

1. Self-propelled Hydraulic drilling machine which produced with new type hydraulic technology and new gerotor motor, new planetary reducer system.

2. Large torques torage,feed and lift smoothily.

3. Travelling motor imported from EU.

4. Could be used to drill level-lower holes.

5. High gradeablity because of the imported travelling motor.

6. Semi-high air pressure impactor, high efficiency.

Model HC728
Worksite Rock hardness 6-20
Diameter of Hole mm 95-140 ( Standard 115)
Economic Deepth m 30
Gradeablity ° 25
Travelling Type Hydraulic Motor
Feed stroke m 3
Max. Lift Force KN 20
RotatingTurque N.M 2200
Rotatiing Speed r/min 0-90
Air pressure Mpa 1.2-2.4
Blast Consumption m³/min 11-21
Rated power KW 58
Horizontal Pendulum Angle of Drill Boom ° 92 (L),12 (R)
Travelling Speed Km/h 2-3
Clearance mm 380
Measurement mm 7000X2200x2100
operating Weight kg 5300
