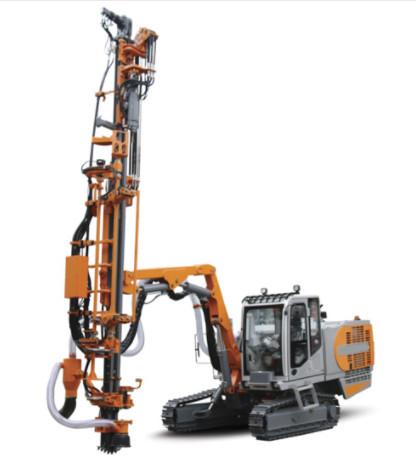

T630 / T635 Rock Drilling Machine , Hydraulic Crawler Drilling Machine
T630 / T635 Rock Drilling Machine , Hydraulic Crawler Drilling Machine
Specifications
Brand Name :
JYS
Model Number :
T630 / T635
Place of Origin :
China
MOQ :
1 Unit
Price :
By email, CNY, USD, EURO
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
50 working days
Packaging Details :
Standard Package , Delivered by RORO or Bulk cargo ship
Certification :
ISO9001, ISO14001
High Quality Steel :
Yellow and Grey
Warranty :
1 Year
Usage :
Ore, Coal, Water Well, mining used, Rock drilling
Condition :
Brand New
Power type :
Diesel
Type :
Rotary Drilling Rig, Core Drilling Rig, petrol breaker, ROCK DRILLING RIG After-sales service provided Engineers available to service machinery overseas,
Drilling depth :
13.5m (One Rod)
Color :
Customize
Drilling diameter :
42mm to 89 mm
Feature :
High Drilling Efficiency
Description

T630 / T635 Rock Drilling Machine , Hydraulic Crawler Drilling Machine

Advanced design conception and come out with great performance over cost value !!

1. Fixed International famous Cummins Engine.

2. Automatic Lubrication system to save the time and avoid the hard work of the mechanics. It also to extend the life time the machine.

3. Dust collector, with Two- stage dry type more powerful .

4. Feeding system, Fixed with Hydraulic braking motor, Chains , Sprocket with wheels and hoses to realizy fast and slow feeding and lifting .

5. Heavy duty chassis and oscillation oil cylinder then powerful off-road performance

(Hole Depth 1 rod 13.5M)

T630/T635 Full Hydraulic Top Hammer Surface Drill Rig (ZY102)
Engine
Engine Model 4BTA3.9-C125-II (Tier II) 　
Rated Power 93KW 　
Rated Rotation Speed 2200 Rpm 　
Main specification
Working Pressure 24Bar Track Osillation ±10° 　
Displacement 22M3/min DTH Hammer 4' 　
Hole Diameter Range φ42-89 mm Rotary Torque 860 N.M 　
Number of Rod 3+1 (Manual) Rod Length 3000mm 　
Hole Depth 13.5m Feed Type Cylinder/ Chain 　
Length of Feed Beam(Total) 7200mm Feed Traveling Length 3660mm 　
Feed Extention 1200mm Max. Feed Speed 0.75m/s 　
Feed Force 16KN Max. Pulling Force 40KN 　
Traving Speed 4.5Km/h (high) Driving Force(Max) 69KN 　
2.3km/h (low) 　 　 　
Gradeability 25° 　 　 　
Capacity of FuelTank 280L Measure Size(LXWXH) 11300X2430X2900 mm 　
Ground Clearance of Chassis 340mmm Weight (Options Excluded) 10500Kg 　
