Specifications
Brand Name :
JYS
Model Number :
CLW5250GPSD5
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotation, CNY, USD,EURO
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
3300 Units
Delivery Time :
55 working days
Packaging Details :
Naked , Delivered by RORO or Bulk Cargo Ship
Emission standard :
Euro 4
Drive wheel :
4X2;4X4;6X4;8X2,6*2
Fuel :
Diesel
Condition :
New
Gross vehicle weight :
25000
Transmission type :
Manual
Sprinkling area (m) :
> 16 m
Warranty :
1 Year
After-sales service provided :
Video technical support,Online support,Overseas service center available
Engine capacity :
6 - 8L
Tank volume :
18-22 Cub.meters
Color :
Customer's Requirement,Optional,Customer's Require,Any color
Product name :
Tank Water Truck,Water Sprinkler Truck,foton watering truck
Tank material :
Carbon Steel. Stainless Steel
Water tank truck type :
Water Spraying Tank Truck
Drive type :
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice,4*2
Name :
Water-Truck,Street Sprinkler,Sprinkling Watering Carts,water sprinkler bowser trucks
Description

High Pressure Water Sprinkler Truck Water Tanker Vehicle 1 Year Warranty

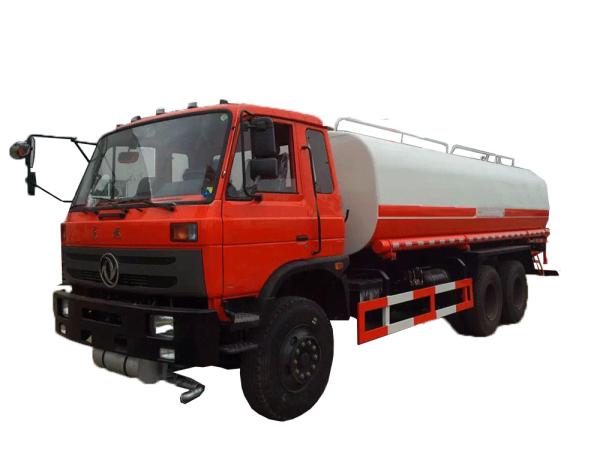

Dongfeng water tank vehicle CLW5250GPSD5 Fixed Dongfeng 153G cabin with air conditioner, Cummins engine. Tier V and 8 shifts gear box, high pull force, Max 44.1KN, with ABS system.

Water tank volume is 18-22 cub meters self suction water pump including hoses and spraying system. Popularly used in landscape engineering, water supplying, construction sites or fire protection engineering.

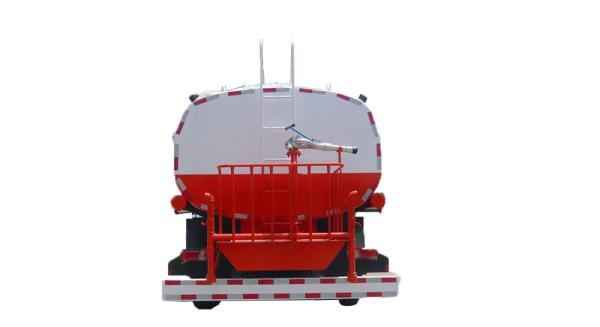

Standard with Spraying in front, Sprinkler system in the back and side, the high pressure water monitor on the platform with 360 rotation.

【Truck Main Specification】
Name Of Truck Water Tank Truck Model CLW5250GPSD5
Operating Weight(Kg) 25000 Capacity of tank(m3) 18-22
Rated Load weight(Kg) 14140 Overall Measurement (mm) 10325×2500×3200
Net Weight(Kg) 10665 Front Overhang/Rear Overhang (mm) 1515/3150,1250/3415,1450/3215
Number of person in Cabin 3 Max. Travel speed (Km/h) 90
Approaching angle /Departure angle(°) 29/21
Loading capacity of axles(Kg) 7000/18000(Two axles)
Remarks Capacity of tank:18-22 Cu.meters,Loading:Water,Density:1000Kg/m3,Measurement of tank (Length×Long axle× Short axle) 6900×2400×1550
【Specification Of Chassis】
Model EQ1258GSZ5DJ Name Loading water truck
Brand Dongfeng Number of Tyre 6
Number of Axle 3
Wheel base (mm) 4350+1300,4750+1300,5900+1300,4900+1300,5350+1300
Model of Tyre 10.00-20,10.00R20,295/80R22.5,11.00-20,11.00R20
Number of Plate spring Front Tread(mm) 1940
Fuel Diesel Rear Tread(mm) 1860/1860
Standard of Displacement GB17691-2005 III ,GB3847-2005
Engine Model Manufacturer Displacement (ml) Rated Power(Kw)
ISD210 50 Cummins engine company Limited 6700 155
