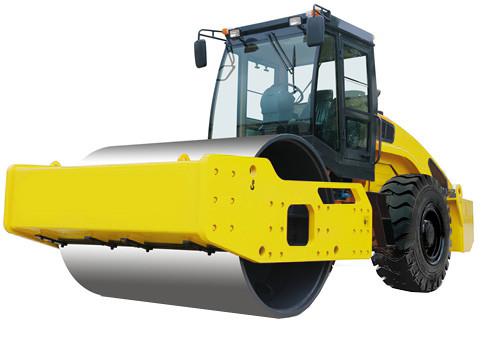

Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons
Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons
Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons
Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons
Specifications
Brand Name :
JYS
Model Number :
JV612H,JV614H,JV620H,JV622H
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotation, CNY, USD
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
3000 Units
Delivery Time :
45 working days
Packaging Details :
Naked , Delivered by RORO or Bulk Cargo ship
Description

Full Hydraulic Mini Road Roller Equipment Single Drum From 12 Tons - 22 Tons

Main features:
1. Hydraulic front and rear drum drive, multiple infinitely variable speeds, strong grade-ability.
2. Hydraulic vibration, start-vibration by electronic control, great exciting force with high compacting efficiency.
3. Hydraulic steering, articulated frame with flexible steering and operation.
4. Hydraulic service brake, electronic controlled parking brake, with brake release device which can be applied for dragging the machine for short distance.
5. Rear engine cover can be turned up for big angle for convenient maintenance.
6. Drive and vibration system are equipped with imported famous brand hydraulic components with reliable performance.
7. Tires with different tread patterns are optional.
8. Other brand engines are optional. air conditioner is for your choice.
9. Standard equipped with cabin.

Technical Specification:

Product Model JV612H JV614H JV620H JV622H
Operating weight (kg) 12000 14000 20000 22000
Rolling width (mm) 2130 2130 2130 2130
Vibration frequency (Hz) 28/32 28/32 28/32 28/32
Theoretical amplitude of vibration (mm) 1.9/0.9 1.9/0.9 1.9/0.9 1.9/0.9
Exciting force (kN) 280/180 310/200 385/260 395/275
Travel speed (km/h) 0～5.5 ,0～10 0～5.5 ,0～10 0～4.25 ,0～5.5
0～6.5 ,0～11.5		 0～4.25 ,0～5.5
0～6.5 ,0～11.5
Engine model QSB3.9-C130-30 QSB5.9-C150-30 WP6G190E330 WP6G190E330
Engine power/speed (kW/rpm) 97@/2300 113@/2000 140@/2200 140@/2200
Overall dimensions (mm)
(L*W*H)		 6140×2300×3050 6140×2300×3050 6240×2320×3050 6240×2320×3050
