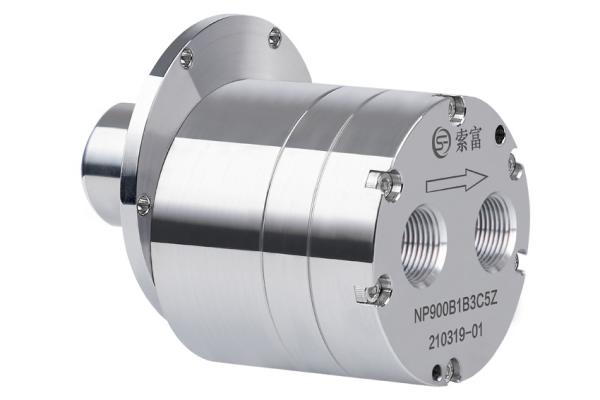

SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump
SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump
SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump
SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump
Specifications
Brand Name :
Suofu
Model Number :
NP900
Certification :
EU CE certification, ISO certification and ROHS certification，REACH certification
Place of Origin :
CHINA
MOQ :
1
Price :
Please contact with manufactures
Supply Ability :
Please contact with manufactures
Delivery Time :
Please contact with manufactures
Packaging Details :
Please contact with manufactures
Product name :
Fire pump
Body materials :
SS316/ /Aluminum alloy
Wear plate :
Ceramic (option*)
Gear& Bearing :
one-step injection moulded , andspecial filled PEEK /ceramics
Shaft :
High-precision zirconia ceramic
Magnet drive :
rare-earth magnet covered by PPS plastic
O-ring seal :
Viton/EPDM/PTFE/FVMQ/In/PT+SS316/CR
Usage :
Water，Perfluorohexanone
Description

NP micro magnetic drive gear pumps use the magnetic field to drive the rotation of gears.The pumps are sealed only with O-rings, and eliminate the risk of dynamic seal failure.Gears (formed through one-step injection moulding) and bearings made of specially filled PEEK materials, high-precision industrial ceramic shafts, and patented gear tooth profile design, all these components ensure the outstanding life expectancy and wear-resistance of our products.

Advantages of NP pump: High temperature resistance,High pressure resistance,Wear resistance,Erosion proof,Low operational noise,Self-priming capability,Long life expectancy,Dry-running for long time,Non-pulse and stable outlet

Nominal displacement 9mL/rev
Inlet-outlet differential pressure 40 bar (transport pure water)
Liquid temperature -120°C to 150°C
Life expectancy longer than 20000 hours in liquids without impurities;100-hour continuous dry running
Inlet vacuum -0.85 Bar (depends on rotational speed)
Electric motor brushed DC/brushless DC/canned magnet brushless DC/ordinary AC/variable frequency AC
Operation noise at the speed of 2000 rpm spur gear pump<55dB / helical gear pump<45dB
Rotational speed 100 ~ 4000 rpm
Thread for connectors standard type is NPT NPT 1/4’’,1/8’’,NPT 3/8’’ & NPT 3/4” and we offer other options
recommended inlet filter 400 mesh, and in a closed-cycle system the filter should be installed at the pump outlet. Its passable area should be large enough to avoid affecting normal liquid flow

SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump

SS316 Fire Pump High Temperature / Pressure Wear Resistance NP PumpSS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump

SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump

SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump

Suofu NP SERIES
SS316 Fire Pump High Temperature / Pressure Wear Resistance NP Pump
SERIES TYPE FLOW
42 Series NP020 0.2ml/rev
NP039 0.39ml/rev
NP060 0.6ml/rev
NP070 0.7ml/rev
51 Series NP100 1ml/rev
NP120 1.2ml/rev
NP170 1.7ml/rev
NP190 1.9ml/rev
60 Series NP240 2.4ml/rev
NP350 3.5ml/rev
98 Series NP400 4ml/rev
NP600 6ml/rev
NP900 9ml/rev
NP1200 12ml/rev
NP1700 17ml/rev
