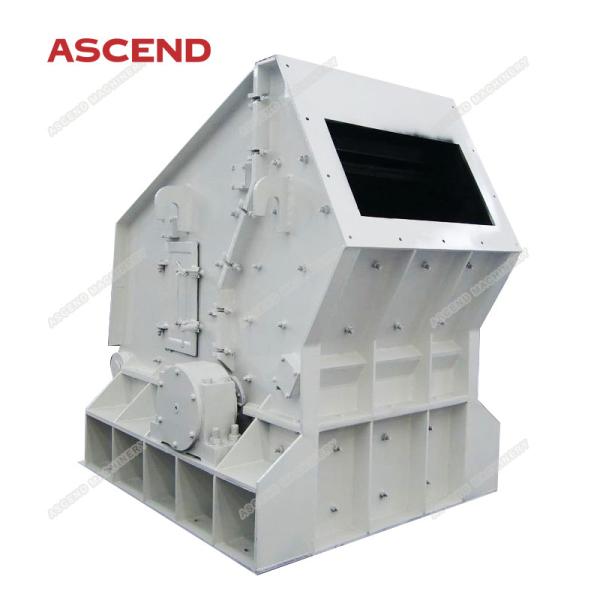

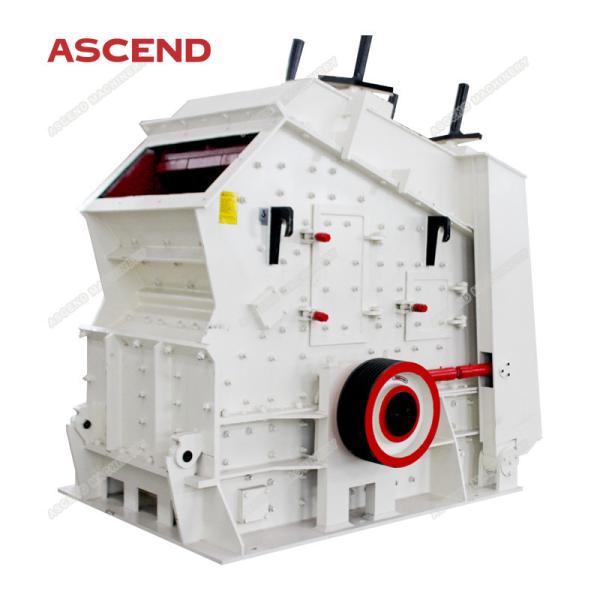

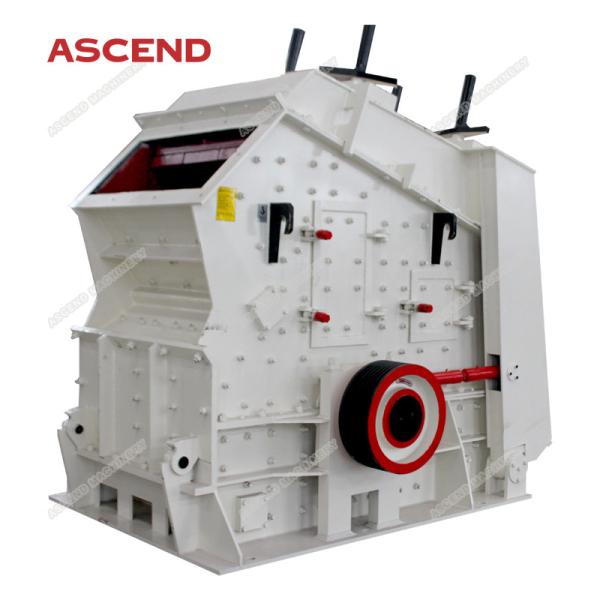

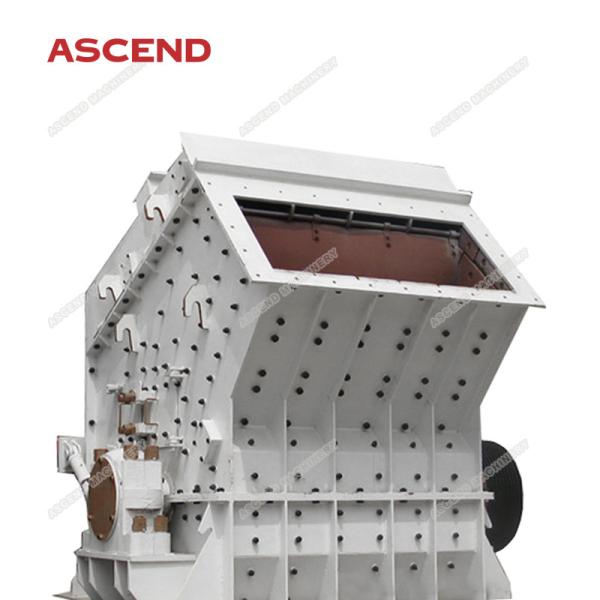

Engineers Available Impact Stone Crusher Machine , 10-350 Tph Mining Impact Crusher

The impact crusher is suitable for a variety of coarse, medium and fine materials whose size is no more than 500mm and compressive strength is no more than 350MPa due to the new manufacturing technology and unique design of the structure.

The impact crusher is mainly divided into two categories: the single-rotor and double-rotor. It features high crushing ratio, high capacity, simple crushing process, low energy consumption, and convenient maintenance and its finished products are cubic in excellent shape without any tension or cracks.

impact crusher, granite rock crusher , stone crusher advantages:

• Cost-effective and Energy-saving

  The impact crusher has a large feeding inlet and a large crushing chamber. It can process those large and high-hardness materials and the finished products have little stone powder.

• Optimum particle shapes

  The gap between the impacting plate and the hammer can be optionally adjusted to effectively control the discharge granularity, thus producing beautiful finished products in a uniform size.

• Unique Structure

  The machine is rigid and compact, and its rotor has high inertia.

• High Comprehensive Effect

  High chrome hammer is resistant to impact and wear and provides large impacting force.

Working Principle

The impact crusher is a mechanical device that uses impact energy to crush materials with medium hardness. The rotor rotates at a high speed under the driving force of the motor, and the ore obtains huge kinetic energy from the process. After entering the action area of the hammer, the materials are hit and crushed by the hammer on the rotor, then thrown at a high speed to the counter-attack device and broken again. Finally, they are rebounded from the impacting liner back to the zone and crushed. This is a repeated process, and the materials are broken in the first, second and third impacting chambers. When crushed into being in required particle size, the materials are discharged from the discharge port. Users can adjust the gap between the counter-rack and the rotor to achieve the goal of changing the materials’ discharging size and shape.

Specifications
