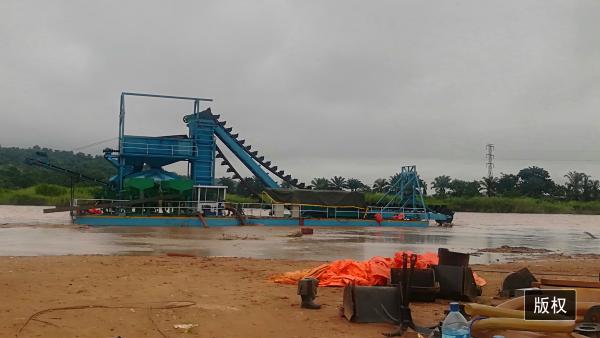

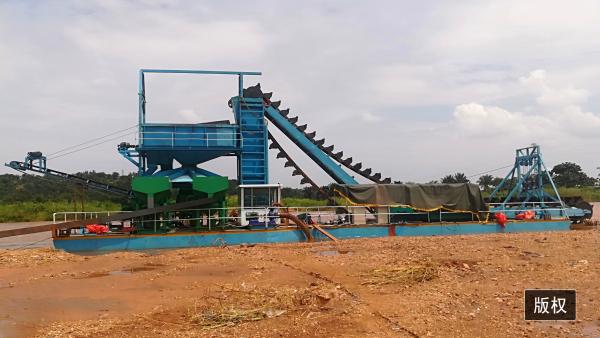

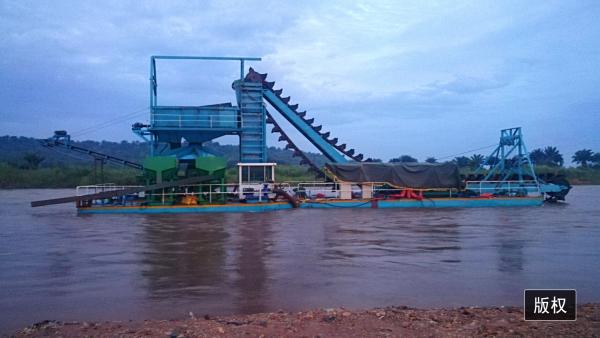

Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining
Specifications
Brand Name :
keda
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1 Units
Price :
USD100000-300000/ Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-30 days
Name :
bucket dredger
Application :
gold dredging, diamond dredging
Color :
Customized Color
Dredging depth :
15m
Type :
Bucket Dredger
Power type :
Diesel
Description

What is a bucket dredger?

A bucket dredger is equipped with a bucket dredge, which is a device that picks up sediment by mechanical means, often with many circulating buckets attached to a wheel or chain. A bucket dredger is a stationary dredger that is equipped with a continuous chain of buckets, which are carried through a structure, the ladder. The bucket dredger is anchored on six anchors.
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining

How does a bucket dredger work?

In the dredging process, the dredger swings around the bow anchor by retracting or releasing the winch board. The bucket filled at the bottom is emptied by dumping its upper part.The contents enter a chute, and the dredged material can be slid along the chute into a barge moored next to it. The chain is driven by the so-called upturner on the top of the ladder frame,It is connected to the diesel engine or directly to the electric motor or hydraulic engine through a belt.

Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining

Area of application

Bucket dredgers are only used in new or maintenance dredging projects when the initial depth of the area to be dredged is too shallow for trailing suction hopper dredgers and the distances involved are too long for hydraulic transport. For environmental projects, which require the dredging of ‘in situ densities’, the bucket dredger is suitable peace of equipment. When dredging for construction materials such as sand and gravel, or for minerals such as gold and tin ores, bucket dredgers are still frequently used.
Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining

Parameter of bucket dredger

N ITEM DATA
1 Dimension (L*W*H) 37*9.1*1.12M
2 Working capacity 120t/h
3 Dredging depth 15M
4 Dredging size 400mm
5 Dimension of bucket 700*500*350mm
6 Water flow 280m3/h

Company Profile

Bucket Chain Dredger Gold Dredging Equipment Working Capacity 120t/H Mining

Head Dredging Heavy Industry Co., Ltd. is a company specialized in producing dredgers, aquatic weed harvesters, gold mining machines and greenhouses. Head Dredging aims to meet the needs of our customers by providing competitive and high-quality services, such as dredging technology, water cleaning, mineral separation, etc.This product have many series, such as aquatic weed harvester, trash skimmer/hunter, transportation boat and other water surfaceproducts.Our company take integrity as the foundation of the development and stand firmly in the market by accurate market positioning aswell as excellent after-sales service. Our products are successfully exported to Indonesia, Malaysia, India, South Africa,Ethiopia, Vietnam, Mongolia, etc.
