Specifications
Brand Name :
Head Dredging
Model Number :
HD-40
Certification :
ISO9001
Place of Origin :
Shandong
MOQ :
1
Price :
15000
Payment Terms :
L/C, T/T
Supply Ability :
500 sets /Year
Delivery Time :
30 days
Packaging Details :
Container for Shipping
Warranty :
1 Year
After-sales service provided :
Online support
Condition :
New
Type :
Mini Harvester
Application :
water cleaning
Color :
Customer's Request
Description

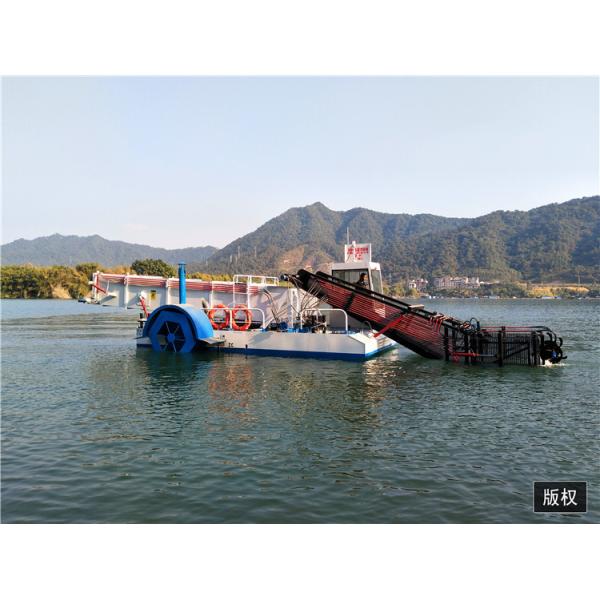

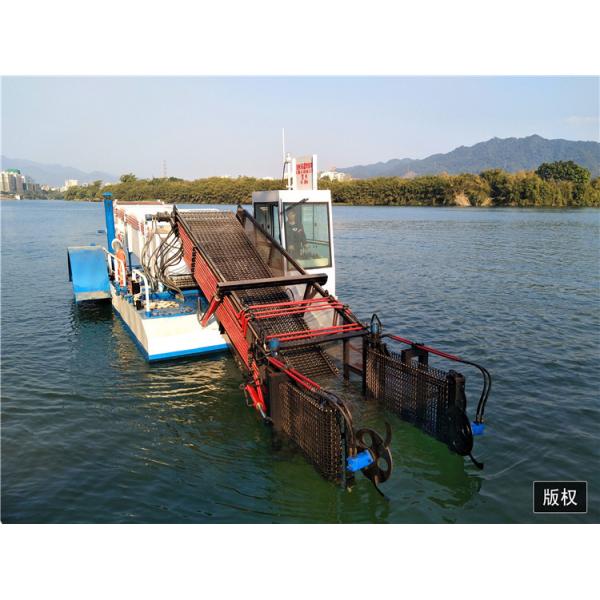

Reed Harvester/Mini Aquatic Weed Harvester Water Hyacinth Harvesting Machine Water Cleaning Equipment


1.The equipment can used in collect,transport,discharge water hyacinth,reed,algae and garbage in the water.
2.the operation system use full automatic centralized control, this can make the equipmend sail and go forward and back.
3.The equipment is small, light weight, easy to assemble, easy to transport.
4.the machine is made is welding steel,the material is CCSB(China Classification Society Standard) ship steel plates,the
equipment pained 4 layersof anti-rust marine paint.
5.the opearion system uses remote centralized control, this can make the equipment sail,go forward and back,adjust direction
and do the loading work.

CCSB Steel Mini Aquatic Weed Harvester For Reed Water Hyacinth HarvestingCCSB Steel Mini Aquatic Weed Harvester For Reed Water Hyacinth Harvesting

CCSB Steel Mini Aquatic Weed Harvester For Reed Water Hyacinth Harvesting


2. Basic Parameter

Item
HD-WH40
HD-WH60
HD-WH100
HD-WH150
1. Draught (m)
0.4-0.6
0.4-0.6
0.4-0.6
0.5-0.7
2.Harvesting width(m)
1.0-1.5
1.0-1.2
1.2-1.5
1.5-2.0
3.Loading capacity(m³)
1-5
3-5
8-12
15-26
4.Speed work(km/h)
2-4
2-4
2-8
2-8
5.Harvesting depth(m)
0.6
0.6-0.8
0.6-0.8
0.6-0.8
6. size Main collecting arm
4*1.2m-1.7*1.4m
4*1.2m-1.4*1.4m
5.5*1.2m-1.7*1.4m
6*1.7m-2.6*1.4m
7.Harvested area (m2)
1000
2000
3000
5000
8. Total weight (T)
5-6
6-8
8-10
18-30

CCSB Steel Mini Aquatic Weed Harvester For Reed Water Hyacinth HarvestingCCSB Steel Mini Aquatic Weed Harvester For Reed Water Hyacinth Harvesting

Our Service


1) Our company signs a long-time after-sale service agreement with customers.
2) We provide rational and pratical design according to customers' request.
3) Within warranty period, we provide free repair if quality problems emerge.
4) We provide free training of operation and maintenance for customers.
5) We supply high quality accessories in low price.
6) We make an excellent filing of customers for long-term following-up service.
