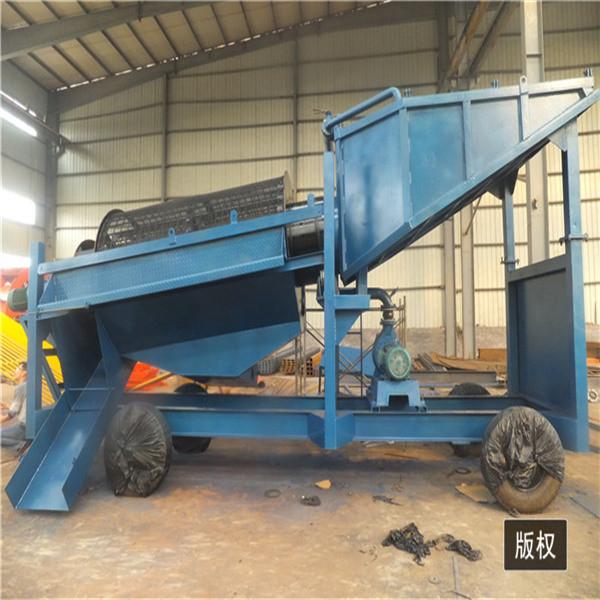

Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
Specifications
Brand Name :
Head Dredging
Model Number :
Gold trommel
Certification :
ISO9001
Place of Origin :
Shandong
MOQ :
1
Price :
$21500/set
Supply Ability :
500 sets /Year
Delivery Time :
30 days
Packaging Details :
Container for Shipping
Description

Gold Trommel /Gold Trommel Wash Plant / Portable Mini Gold Trommel Wash Plant/Mining Equipment

1.Feature
1).Portable placer mining plant 's widely used for portable gold rush plant
2).Easy to move,because of the small volume.
3).Feeding by manual.
4). High capacity and high power scrubbing, large capacity can reach 200-220tons per hour
5). The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
6). One high output electrical motor driving a gear system providing efficient torque
7). Adjustable rotary speed
8). The water with high pressure flushed the inwall of drum
9). Can accept material up to 230mm
10). Mechanical sealing of inlet chute - minimal spillage when over feeding
11). Drive loads absorbed within the drive frame and pivoting drive frame design - Foundations only have to support vertical load and are not critical for alignment ie minimal cost
12). Shell design less mass than conventional roller supported units - installation craneage requirement reduced

2.Applications

1). we design it to washing alluvial gold gravel, clay and sand,
2).it normaly use in Gold Trommel plant , placer gold concentrate plant, alluvial gold washing plant, river gold mining plant
30.It can input feeding size up to 230mm. processing capacity upto 200tons per hour
4). popular used in South Africa, Sudan, Ghana, South Amercia alluvial mining plant

3.Basic Parameters
No. Item
1 Parameter KDTJ-50 KDTJ-100 KDTJ-200
Dimension(mm) 6500*2500x2900 9300x2400x4200 10000x3200x4200
Trommel Screen Size 1200*3000mm 1500x4000mm 2000x5500mmmm
Working Capacity(t/h) 50-100t/h 150-200t/h 200-300t/h
Max. particle of material 150mm 150mm 150mm
Gold Mining Way Vibrating Chute and Gold Chute Vibrating Chute and Gold Chute Vibrating Chute and Gold Chute
2 Trommel Screen
Trommel+scrubber size 1200x3000mm 1500x4000mm 2000x5000mm
Scrubber Length 1000mm 2000mm 2000mm
Working form Chain wheel driving Chain wheel driving Chain wheel driving
3 Feeder Hopper
Size 3200x2200x1600mm 3600*3000*1800mm 4000*3200*1800mm
4 Gold Chute
Size 1000x4000mm 1000*6000mm 1000*6000mm
Quantity 1 2 3
Gold carpet Mitsubishi,Japan Mitsubishi,Japan Mitsubishi,Japan
5 Vibrating Chute 1set 2 sets 3sets
6 Water system

4.Working Principle


A: The rotary Gold Trommel plant is an autogenously rotating drum scrubber, utilising pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides.
B: Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end.
C: Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.
D. this Gold Trommel plant is widely used in placer gold mining plant with sticky clay raw ore .
Vibrating Chute Mini Gold Trommel Wash Plant Portable 220 Tons Capacity
5.Main Parts

The trommel screen mainly consist of motor,reducer,drum units,racks,ring of clamp,black block gine,discharge hole,
feed port,polyproplyene board, screen body etc.inclination of drum equipment ,motor is connected by reducer&the
drum unit,the drive drum rotate around its axis.

6.Company information


1)We attach the development of scientific research, and form strategic partnership with the major research institutions.
2)We had established good cooperation with Import and export trading company, established
Shandong magnetic equipment Research Instituting.
3)We have CAD Aided Design R & D center and physical mineral processing laboratory,
can work out reasonable and practical solution according to customer's technical requirements
and work site.
​​​​
7.FAQ
In order to provide you with efficient & suitable quotation and assistance for you,
could you kindly tell me the following information:
1)Working capacity(t/h)
2)What is th clay content(%)?
3)Is there any big stone in the ore? What is the maximum size?
If you have any quuestion about our company or products, please feel free to contact with me, and i will try my best to make you satisfied.
