Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Specifications
Brand Name :
BEIBEN
Model Number :
NG80B 4138K
Certification :
CCC/CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 UNITS/Month
Delivery Time :
30-45 work days
Packaging Details :
Package in Nude
Model: :
NG80B
Driving Type: :
8x4
Engine Power: :
340hp
Engine Model: :
Weichai Brand
Wheel base (mm) :
3800+1450
Overall Dimension: :
8530X2500X3430
Tire :
12.00R24
Color: :
Orange/Red/White
Description

North Benz Beiben Dump Truck 40 ton 50 ton 380hp 8x4 Dump Truck For Sale

Company Profile:

Beginning in 1989, CNGC Inner Mongolia First Machinery Group started imported from Germany NG80 heavy-duty tucks 20 models of foundation design, include: drawings, manufacturing process, technical standards and production equipment, At the end of 1989, the first China assembled Mercedes heavy trucks had finished from production line, It fills the blank that china could not produce high-grade heavy trucks, it lays the foundation of Beiben Company¡¯s future.

At the moment, BeiBen Heavy-Duty Company has established 3 producion bases which is in BaoTou, ChongQing and PengLai.

Main Specs:
1. Engine:Wei chai engine
2. Loading Weight: 40000kg to 60000KG
3. Superiority: Leader in heavy duty truck industry
4, left hand drive or right hand drive


Why choose beiben 8x4 dump truck ?
1. Good performance, durable and elastic
2. The lowest price with top quality in China
3. Standard materials according to technical drawing
4. OEM service, quality assurance
5. Professional supplier with many years experience

SPECIFICATION(ND3314B38)

Model 8x4 dump truck
Cabin Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C
Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model: WP10. 380E32 WEICHAI Diesel engine
MAX Horse power: 380HP/280KW
Displacement(L): 9.726liter (Euro 2 standard)
Max torque: 1500NM@1200-1600rpm
Bore/stoke: 126mm/130mm
Gear box Max torque:2000NM
Model: 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization
Speed: 12speed,2reverse
Axle(front/rear)
Front axle Double-shoe pneumatic brake, non-driving steering axle
Tandem Double-shoe pneumatic brake, casting, double reduction driving axle
Clutch Single dry frictional disc,Hydraulic boosting
Brake Service brake: Brake gap can be adjusted automatically, double circulation air brake system
Parking brake: Potential springs pressing on middle and rear wheels
Engine brake: Engine exhaust brake(EVB)
Steering

TAS85, driver sit at the left hand side
Electric Equipment
Operating voltage: 24Vnegative grounded
Starter: 24V,5.4KW
Alternator 28V,758W
Battery voltage 12V/135Ah,cigar lighter
Frame Fish belly, shape, variable width, variable sections, side beam structure.
Tyre 12+1 spare tyre with rim
12.00-R20
Suspension system: strongthen heavy duty Leaf spring type
Front/Rear 12/12/13
Dump body:
Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel
Lifting type: Front lifter “T” type hydraulic system.
Overall dimension(mm): 11730x2500x3484(Length x width x height)
Wheelbase 1950+4600+1450mm
Track:
Front/Rear 2045/1872
Approach/Departure angle 26/27
Front /Rear overhang 1410/2320
Max speed 90km/h
Kerb weight: 15500kg
Oil tank capacity 300L fuel tank

The specification and the picture just for reference, Final confirmed by us.

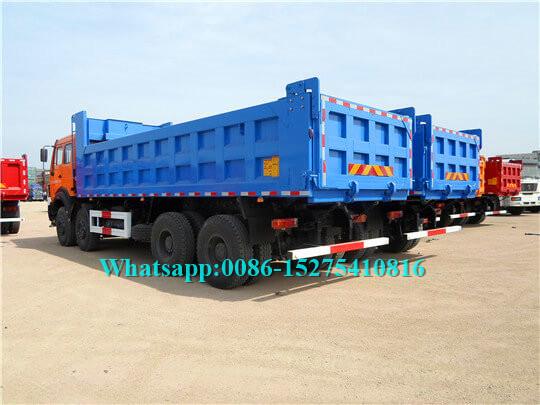

Products Photos:

Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service AvailableBlue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service AvailableBlue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service AvailableBlue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available

Our Services

Presale Serivce:

Professional sales team supply personalized service according to customer's requirement.

Order operation:

We will start production of your order within 3 days with strict quality control.

Shipping:

According to different shipping requirements,our company logistics department will ship the Beiben tractor truck to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.

After-sales Service:

Regularly callback to know the Beiben tractor truck working status and offer reasonable tech proposals.

Timely spare parts supply to guarantee the truck working continuously.

Our oversea engineers are ready all the time to serve.
