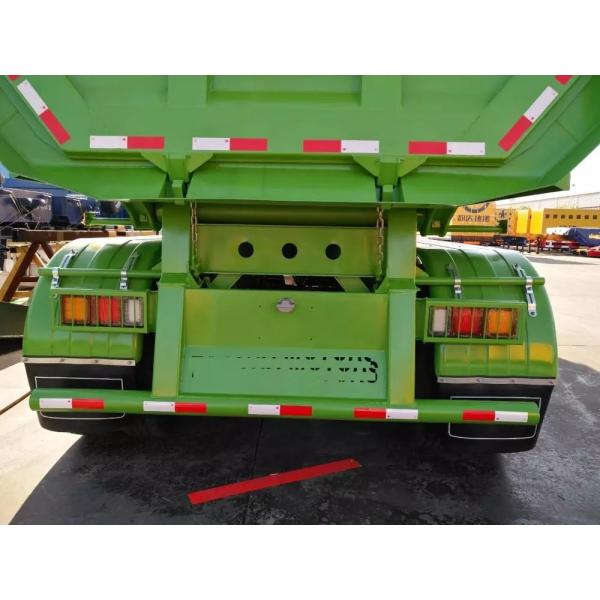

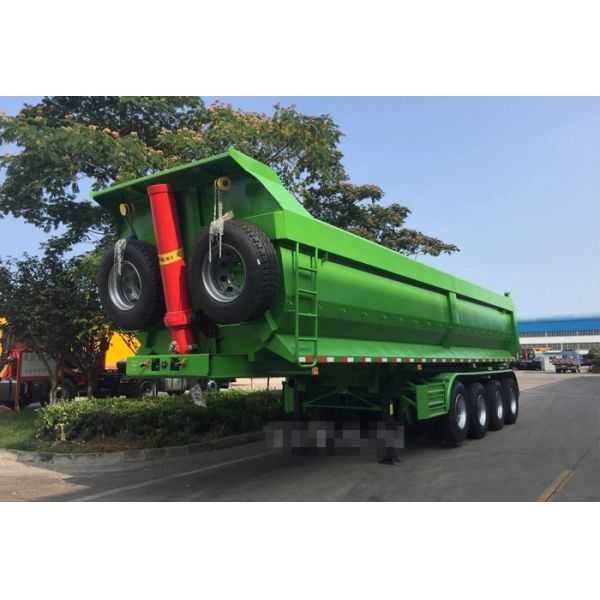

Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
Specifications
Brand Name :
SINOTRUK
Model Number :
HYUAN
Certification :
ISO/CCC
Place of Origin :
SHANDONG CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 units/month
Delivery Time :
20 work days
Packaging Details :
Nude
Overall Dimension :
11500x2500x3550mm
Volume :
28-48m3
Tool box :
1 sets(waterproof type)
Wheelbase(mm) :
6700+1310+1310
Suspension :
Mechanical suspension or air suspension
Thickness of plate :
Bottom: 6mm, Side: 4mm/6mm
Description

SINOTRUK 28-48m3 4 axle Hydraulic dump truck semi trailer with Optional color

Product description:

For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details. High quality has always been our advantage.You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company. You will get the out-standing quality assurance.The produces U Shape Dump Semi Trailer is ideal equipment to transport of for carrying sand crush stone rock and salt material,We can supply 2 axles, 3 axles, 4 axles tipper semi trailer, which loading capacity from 40 ton ton 80 ton for customer specific requirements.

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competition advantages:

1. Excellent and high-quality control
2. Long lasting working life time.
3. Suspension is usually American style,or german style
4. Support legs also can be selected
5. Brand can be FUWA, BPW, also other brands for selection.

6. We have been engaged in this industry for more than 20 years. High quality has always been our advantage.

Overall Size 11500x2500x3550mm
Box Volume 28-48m3
Tare Weight 7.85T-11T
Loading Weight 40-80T
Kingpin 50# or 90#
Brake system Dual line braking system
Thickness of plate Bottom: 6mm, Side: 4mm/6mm
Wheelbase(mm) 6700+1310+1310 or other
Axle 13T/16T capacity, FUWA / BPW Brand
Suspension Mechanical suspension or air suspension
Tire 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
Wheel rim 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
Landing gear JOST brand two-speed, manual operating, heavy duty landing gear
Steel Spring 8/8/8, 10/10/10, 12/12/12 pieces per axle
Frame Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. 16mm-25mm channel steel (Material is Q235 carbon steel)
Platform plate Steel Sheet 3mm thickness
Landing Leg JOST, FUWA or YAHUA brand 28T
Painting Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
Tool Box 1 sets(waterproof type)
Packing Polish with wax before shipping

Diesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80TDiesel Heavy Duty Semi Trailers 4 Axle Hydraulic Dump Truck 28-48m3 40-80T
