SHANTUI SP25Y 25T Multifunctional Crawler Hydraulic pipe layer tractor With CE for lifting pipe Special purpose

Description:

SINOTRUCK brand SPY25 high-drive crawler pipelayer is a new type of crawler-type hydraulic pipelayer developed by our company to track the development trend of international pipelayers, based on domestic and international market demand and based on modular design concept. The whole machine is composed of a high drive chassis, a counterweight mechanism, a boom operating device and a hydraulic system. The chassis breaks through the traditional crawler pipelayer design method, and the drive sprocket is separated from the walking frame, and is arranged to the final drive and steering. On the same axis of the brake clutch and the central drive, the track is arranged in a triangle, eliminating the impact load directly transmitted from the ground to the drive sprocket, which increases the service life of the drive system by 30%. The modular design of the transmission components makes the assembly simple and more Easy to disassemble and repair. The counterweight mechanism adopts four-bar linkage mode, and the coupling frame adopts multi-axis articulation and dynamic gap balance adjustment structure, which ensures the accuracy of the four-link movement and is convenient for disassembly and assembly to meet transportation requirements. The boom adopts A-shaped single-arm frame structure, and its lifting, variable amplitude and weight-receiving are realized by hydraulic drive and pilot control. The operation is convenient and flexible, the micro-motion performance is good, and the work is stable. The whole vehicle is equipped with various safety devices such as computer torque limiter, anti-tip protection frame and counterweight safety lock to ensure the safety and reliability of the whole machine operation.

Product Features

Delivering ultimate power,lift and value,the SP25Y features a Cummins engine,load feedback,overload prevention,anti-rollover protection and precise controls,Our fist offering for larger loads.

Detailed Images

Application

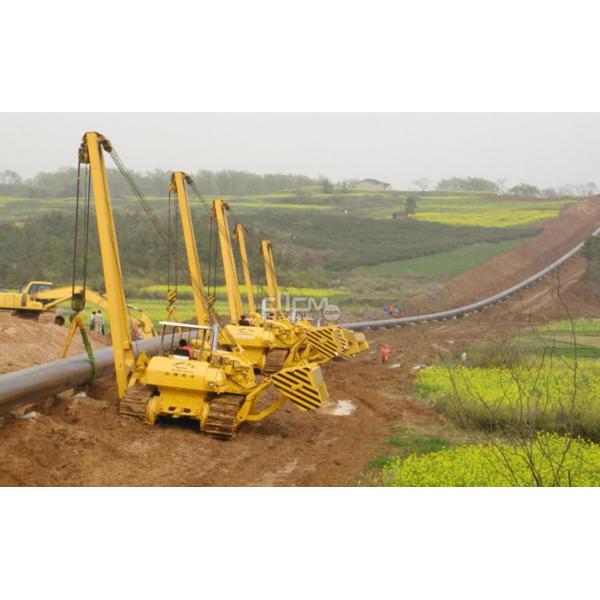

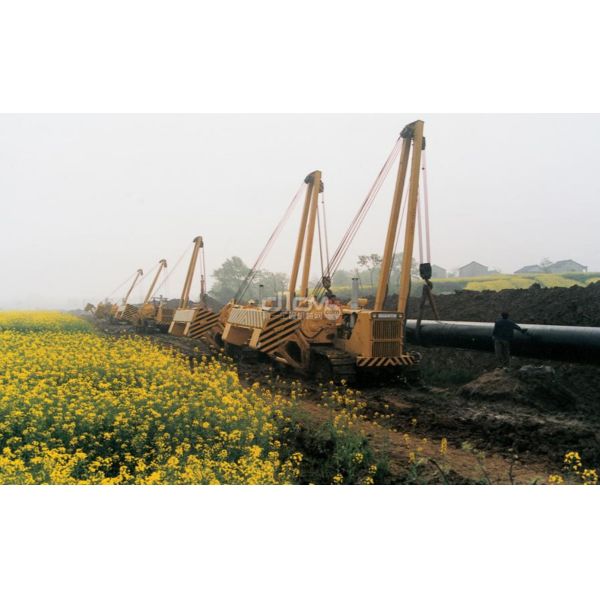

Piplayer is an important construction machine for laying large-caliber petrolum or natural gas pipelines, connecting their ends and doing ditch work.

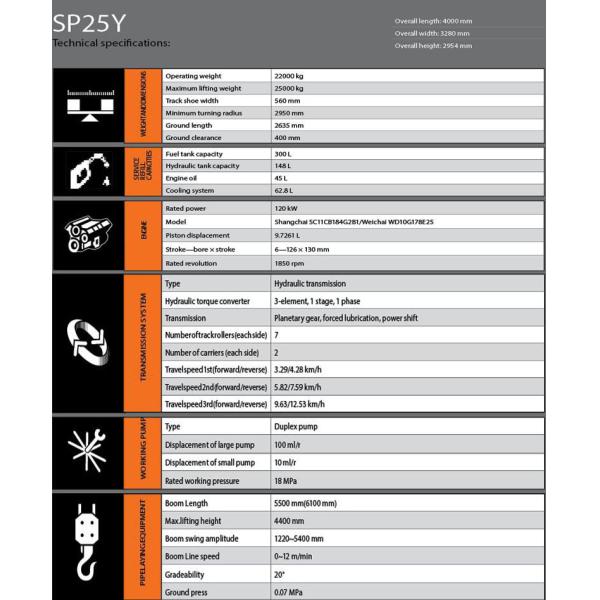

Technical parameters

SP25Y China pipe layer tractor With CE

Other ralated products

SP45Y

Eninge Model:Cummins NT855-C280S10

Rated Power: 169 kW
Operating Weight: 34.0 t

SP70Y

Eninge Model:Cummins NTA855-C360S10
Rated Power: 235 kW
Operating Weight: 49.5 t

SP90Y

Eninge Model:Cummins NTA855-C360S10
Rated Power: 257 kW

Operating Weight: 55 t
