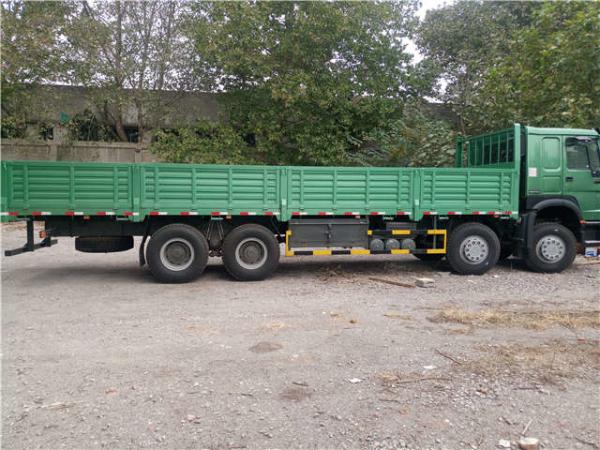

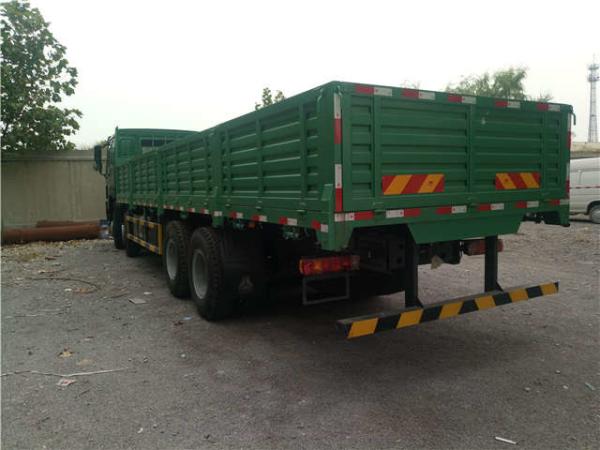

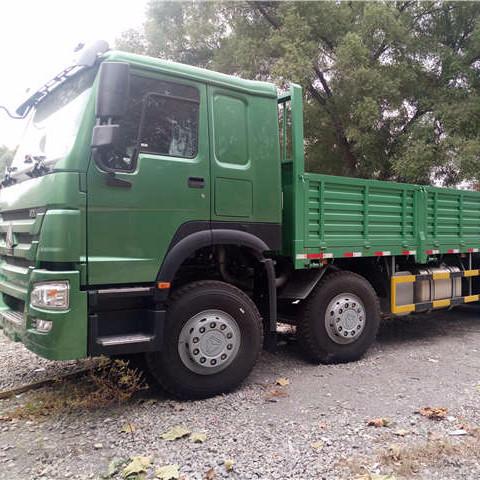

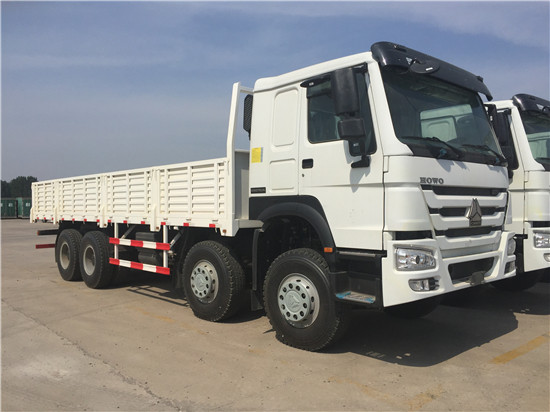

Long Distance Cargo Transport Truck 8x4 With Single Line Air Assisted Brake System
Long Distance Cargo Transport Truck 8x4 With Single Line Air Assisted Brake System
Long Distance Cargo Transport Truck 8x4 With Single Line Air Assisted Brake System
Long Distance Cargo Transport Truck 8x4 With Single Line Air Assisted Brake System
Long Distance Cargo Transport Truck 8x4 With Single Line Air Assisted Brake System
Long Distance Cargo Transport Truck 8x4 With Single Line Air Assisted Brake System
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1257N4641W
Certification :
ISO9001
Place of Origin :
JINAN CITY OF CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units/month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Carriage Internal Dimensions(mm) :
9400x2400x2400
Cubage (m3) :
54
Cab :
HW76(single sleeper,with air conditional)
Wheel base :
1800+4600+1350mm
Transmission :
HW15710 transmission
Clutch :
SINOTRUK Φ430 diaphragm-spring clutch
Description

SINOTRUK HOWO 8x4 Euro 2 cargo truck with HW76 cab and HW19710 transmission​

Description:

HOWO 8×4 cargo truck adopt adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export

standard packing of the manufacturer, be suitable for long distance transportation of

ocean and inland. The Seller shall be take measures against moisture,

shocks and rust according to the special needs of the commodity.


Competitive Advantage:

1. Single-line air-assisted brake system,safe and reliable.

2. The price is competitive.

3. All colors are available according to your choice.

4. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
5. Professional team for spare parts and aftersales services.

Specifications:
Body Carriage Internal Dimensions(mm) 9400x2400x2400
Cubage (m3) 54
Steel thickness of Carriage(mm) Floor:3mm/Side:1mm
Steel Aluminium alloy
Weight in kg Kerb weight (Kg) 13350
Gross vehicle weight (Kg) 30000

Dimension(mm)

 Dimensions(mm) Length(mm) 12350
Width(mm) 2550
Height(mm) 4000
Wheel base (mm) 1800+4600+1350
Performance Maximum driving speed (km/h) 92
Fuel consumption (1/100 km) 38
Cab Model SINOTRUCK HW76 Lengthen cab
single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
Engine Model WD615.47
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Horsepower 371
Maximum output Kw/r/min 273/2200
Maximum torque N.m/r/min 1460/1300-1600
Bore x Stroke 126x130mm
Valve 2
Displacement 9.726L
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃ opening begin, Rigid fan
Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch SINOTRUCK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Steering ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front Axle SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axles SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & Tyres Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrics

Operating voltage:24V,negative grounded

Starter:24V,7.5 Kw

Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light
Oil Tank Square type-400L Aluminum alloy fuel tank
