6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ1257M5841V
Certification :
ISO/CCC
Place of Origin :
SHANDONG JINAN
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 units/month
Delivery Time :
20 work days
Packaging Details :
Nude
Cab :
HW79 high-roof cab, double bunk
Transmission :
HW13710 or HW15710 transmission
Steering :
German ZF8098 Steering Gear Box
Tyre :
12.00R20 radial tyre
Oil Tank :
400L
Displacement :
9.726L
Description

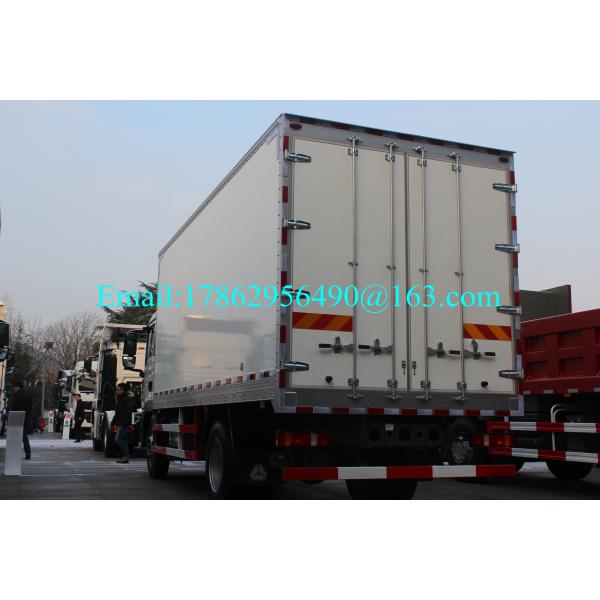

ZZ1257M5841V SINOTRUK HOWO 6x4 Van cargo Truck with ZF8098 Steering Gear Box

Product description:

HOWO 6x4 Van cargo truck adopt 336 HP WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.
And the brake system have huge advantages.Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake.

Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competition advantages:

1. Excellent and high-quality control
2. Long lasting working life time.
3. Suspension is usually American style,or german style
4. Support legs also can be selected

5. We have been engaged in this industry for more than 20 years. High quality has always been our advantage.

Model ZZ1257M5841V

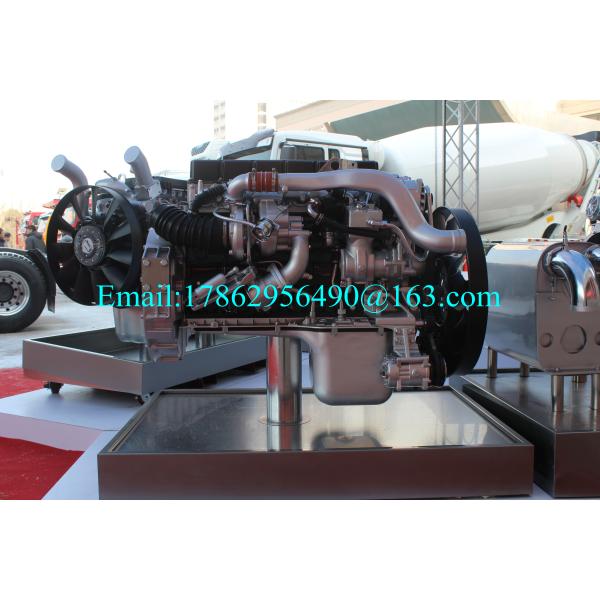

Engine Model WD615.62
Horsepower 266
Maximum output
Kw/r/min		 196/2200
Maximum torque
N.m/r/min		 1100/1100-1600
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled,
direct injection
Bore x Stroke 126x130 mm
Valve 2
Displacement 9.726L
Make SINOTRUCK (CNHTC), Euro II emission standard,
Thermostat with 80℃ opening begin, Rigid fan
Cab SINOTRUK HW79 high-roof cab, double bunk
Clutch SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission HW15710 transmission
Front Axle SINOTRUK HF7 Ton Front Axle, or HF9 Ton
Option: disc brake
Steering German ZF8098 Steering Gear Box ,hydraulic steering with power assistance,Ratio:22.2-26.2
Rear Axles ST16 Double Reduction Drive Axle, ratio: 3.93,4.42 or 4.8
HC16 Heavy reduction drive axle, axle,ratio:4.42;4.8
Brake System Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake
Tyres :12.00R20 radial tyre

Electrics		 Operating voltage:24V,negative grounded
Starter:24V,7.5 Kw
Batteries:2x12 V,165 Ah
Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light
Oil Tank 400L
Weight in kg Kerb weight 12030
Gross vehicle weight 25000
Front axle loading capacity 7000/9000
Rear axles loading capacity 2x16000
Performance Maximum driving speed (km/h) 102
Fuel consumption (1/100 km) 35

6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V6x4 Heavy Duty Cargo Van Box Truck With ZF8098 Steering Gear Box ZZ1257M5841V
