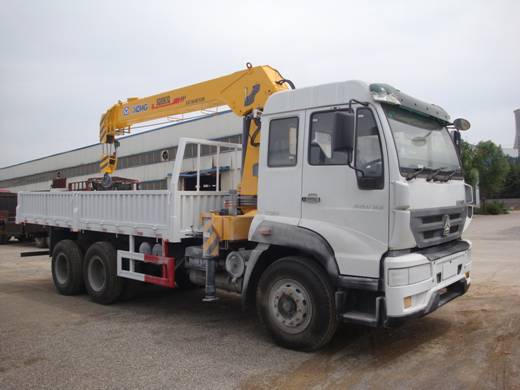

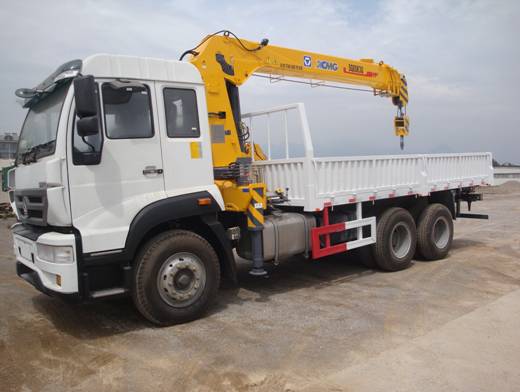

HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
Specifications
Brand Name :
SINOTRUK
Model Number :
XCMG
Certification :
CCC/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
Within 30-45 days after the receipt of the deposit
Packaging Details :
Nude
Dimension :
11700*2496*3635mm
Wheel base (mm) :
5825+1350
GVW :
25000kg
Gear box :
10 forwards& 2 reverse
Color: :
optional
Fuel Type: :
Diesel
Description

Sinotruk HOWO 6X4 truck with crane HOWO 8T crane truck with 4 booms Crane Truck

Description:

The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.

The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Advantages

1.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.

2.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.

3.Long standing reputation in this field.
4.Specialization ,standard and accurate meet your requirement.

5. The price is competitive.

6.Excellent and high-quality control

Specification

Description HOWO 6x4 truck with crane

Vehicle Main

Dimensions

 (L x W x H)mm 11700*2496*3635
Wheel base (mm) 5825+1350
Weight in KGS Curb Weight 15000
GVW 25000
Max. driving speed(km/h) 102
Engine Model WD615.69
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 336
Emission standard Euro II
Gearbox 10 forwards& 2 reverse
Fuel Tank 300L
Clutch Reinforced diaphragm clutch, diameter 430mm
Tire 11R20, 10+1 spare
Brakes Service brake: dual circuit compressed air brake
Steering Gear power steering, hydraulic steering with power assistance
Equipment for Crane Mounted Parts
Working Platform 360°turning(left or right), H-shape legs 360°
Cargo Box 8200×2300×500mm
Equipment

Wide cab

Five-segment U section boom

Single cylinder luffing and double-winch

Manual mechanical control

Spacious and luxury streamline cab
Crane specifications
Max lift capacity: 6300 kg
Max working radius 10 m
Lifting Max. Height 12.5m

HOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 BoomsHOWO 8T 6X4 Construction Crane Truck , Hydraulic Boom Crane With 4 Booms
