Specifications
Brand Name :
XCMG
Model Number :
QY35K5
Certification :
CCC/ISO9001/CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
Within 30-45 days after the receipt of the deposit
Packaging Details :
Nude
Model: :
QY35K5
Crane Type: :
Telescopic Boom Crane
Rated Load: :
36930kg
Product Name: :
Truck Crane
Color: :
Yellow
Fuel Type: :
Diesel
Description

Yellow Diesel Truck Crane QY35K5 / Telescopic Boom Crane with 36930kg Payload

Quick detail:

Condition: Brand New

Fuel Type:Diesel

Made year : 2016

Place of Origin:Shandong, China (Mainland)

Description:

We are specialized in heavy field for almost one decade, we have great experiences no matter in service and spare parts supply. So we are the credible

partner for you.

Advantages

Wide cab

Five-segment U section boom

Single cylinder luffing and double-winch

Manual mechanical control

Spacious and luxury streamline cab

U boom system

Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.

Compact boom head

Extend the jib length, which can extend the working radius to the most.

Hydraulic pipeline

The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.

Operating cab

It has large space and wide views. The control levers and instrument buttons are at hand.

Torque limiter

The colorful LCD display of the torque limiter can shows all the important operating information.

Engine

Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.

Specification

Dimension Unit QY35K5
Overall length mm 12620
Overall width mm 2500
Overall height mm 3350
Total weight in travel kg 36930
Front axle load kg 12330
Rear axle load kg 24600
Engine model 　 SC9DK320Q3
Engine rated power kW/(r/min) 235 / 2200
Engine rated torque N.m/(r/min) 1250 / 1400
Max. travel speed km/h 75
Min. turning diameter m 19.5
Min. ground clearance mm 260
Approach angle ° 17
Departure angle ° 15.7
Max. grade ability % 40
Fuel consumption for 100km L 30
Main performance 　 　
Max. rated total lifting capacity t 35
Min. rated working radius mm 3000
Turning radius at turntable tail m 3.055
Max. lifting torque kN.m 1200
Base boom m 10.5
Fully extended boom m 39.6
Fully extended boom+ jib m 54.6
Longitudinal outrigger span m 5.35
Lateral outrigger span m 6
Boom luffing time s 68
Boom full extension time s ≤155
Max. swing speed r/min ≥2.5
Max. speed of main winch (single rope) m/min ≥130
Max. speed of aux. winch (single rope) m/min ≥130

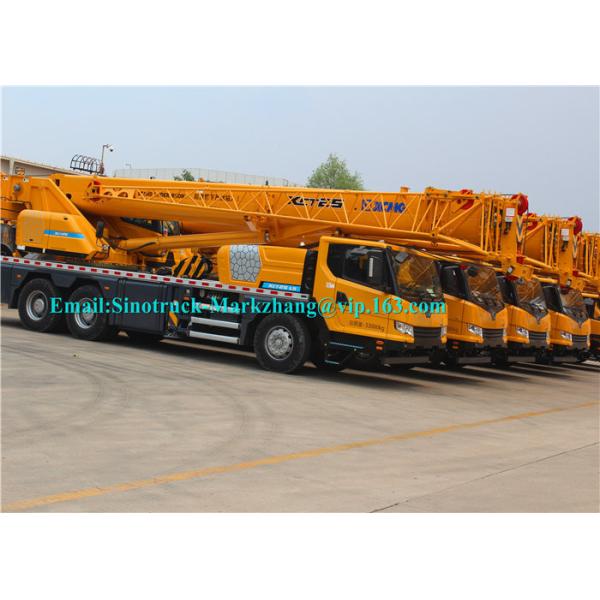

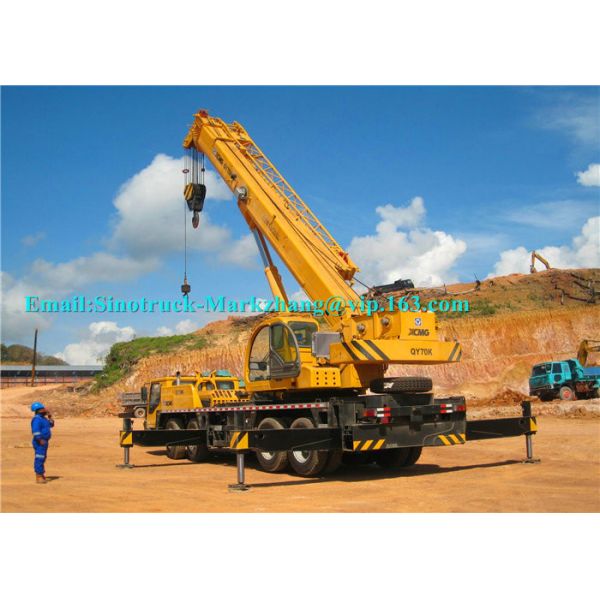

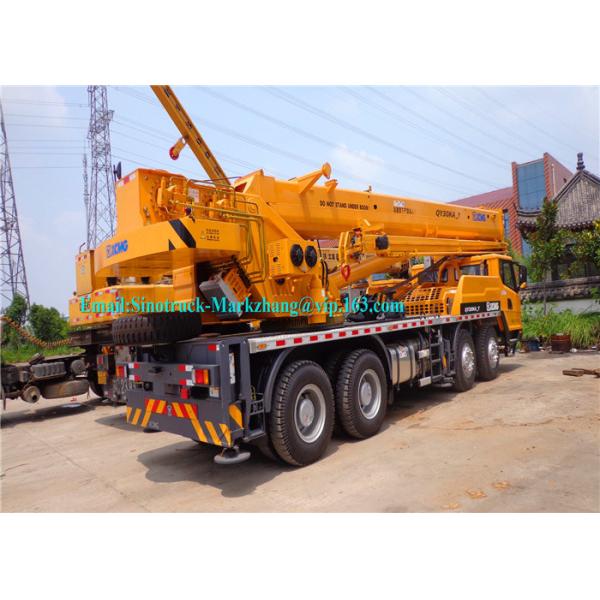

Photos

Diesel XCMG Truck Crane QY35K5 / Telescopic Hydraulic Crane With 36930kg PayloadDiesel XCMG Truck Crane QY35K5 / Telescopic Hydraulic Crane With 36930kg PayloadDiesel XCMG Truck Crane QY35K5 / Telescopic Hydraulic Crane With 36930kg Payload

Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar/Cambodia/Thailand/Malaysia
