9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1167M4611
Certification :
ISO9001
Place of Origin :
JINAN CITY OF CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 units/month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Model :
ZZ1167M4611
Chassis :
Sinotruk brand, HOWO
Cab :
HOWO76 cab, one sleeper, with A/C
Clucth :
Φ430 Diaphragm type
Wheel base :
4600mm
Capacity :
9 cbm
Description

Sinotruk HOWO 4x2 266 HP water tank truck with 9m³ tank volume and LHD Driving type

Description:

Sinotruk HOWO 4x2 266 HP water tank truck adopt new design cabin, the designer from Italy, and Powerful engine, reinforced axle, excellent performance.Adopt SINOTRUK WD615 series of 6-cylinder in line, 4-stroke, water-cooled, turbo-charged inter-cooled,direct injection engine.And the main parts adopt international well-known brands,for example German ZF8118 steering,German WABCO brake control system,HOWO series of transmission,BEHR water tanker,safety and reliable.And the many color choice, and the best cost and performance, deeply favored by oversea customers.

Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.


Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competitive Advantage:

1. Many color choice
2. 266 HP driver power,have a good climed the slope
3. Center-point frame articulated and small turning radius makes it convenient to
work in confined places.
4. Single-line air-assisted brake system.
5. The rear axle can swing around the center hanger frame, improved the going-through capability .
6. Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.

Specifications:

Model ZZ1167M4611
Traction type 4x2
Driving type LHD
Chassis Sinotruk brand, HOWO
Cab HOWO76 cab, one sleeper, with A/C

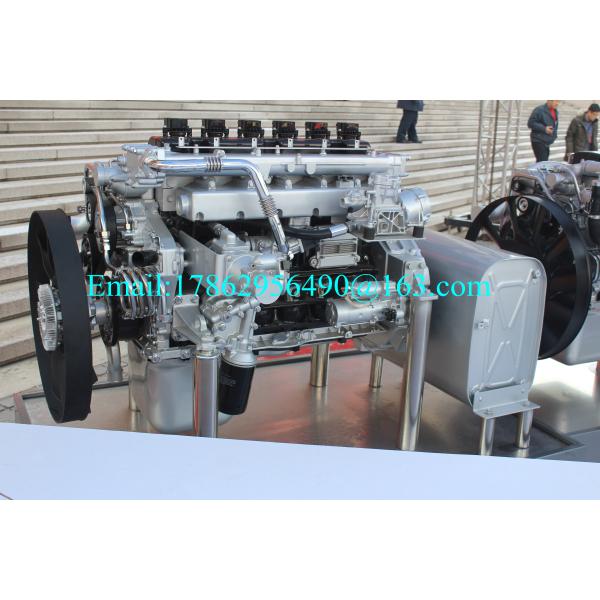

Engine WD615.62/266HP
Type 6 cylinders in line,turbocharged, directly injection,water-cooled,four strokes
Transmission (Gear box) HW15710
Clutch Φ430 Diaphragm type
Steering ZF8098
Front axle HF 7 tons with drum brake
Rear axle ST16 16T (HOWO strengthened axle, reduction driving axle)
Tyre 12.00-20
Spring 10/12
Fuel tank capacity (L) 400L
Max. speed (km/h) 102
Body
Capacity 9CBM
Thickness of steel (mm) 5
Speed (CMB/Hour) 60
Truck Dimensions (LxWxH, mm) 11000x2496x2958
Battery 2X12V/165Ah
Alternator 28V-1500w
Starter 7.5Kw/24V
Brake System
Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels

9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base

9 Cbm Capacity Water / Lpg Tanker Truck With LHD Driving Type 4600mm Wheel Base
