Specifications
Brand Name :
METONG
Model Number :
LMT5311TFC
Certification :
CE
Place of Origin :
CHINA
MOQ :
1unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
35 work days
Packaging Details :
Nude
Tank capacity: :
8000L
Production Capacity: :
3-4 km/h
Dimension(mm) :
11940×2496×3620
Working speed: :
2.5-10.5km/h
Spray width :
4000mm
Paving Width: :
4.0m
Description

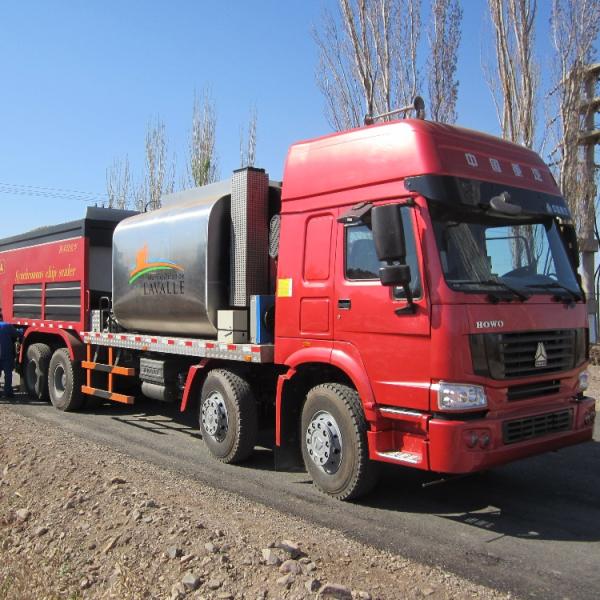

LMT5311TFC bitumen rubber asphalt synchronous chip sealer with 10.5km/h work speed

Product Description

The LMT5311TFC Rubber Chip sealer. The machine could sprayer rubber bitumen. It is the new variety of road maintenance equipment developed by METONG and is primarily used in the
construction of road surface layers or stress absorption interiate layer
(SAMI). It effectively solves cracking in road surfaces, and extend the service life of the road. Chip sealer designed to synchronously spraying asphalt / bitumen, and aggregate. Chip sealer technology suitable to the construction and maintenance of the all grade roads. It’s using computer controlling system for setting the sprayer value to ensure the quality of the materials onto the road construction.The device is complete with electrical control, high degree of automation ,, can accurately calculate the equipment during the construction and stone chips spreading asphalt spray volume amount of how much;material door control using inclinometer, ensuring the accuracy of the device material.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 35 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.

Features:

1. Excellent stress absorption and dispersion capacity
2. High wear resistance
3. High water resistance
4. High stability
5. Fast construction speed

Applications:

1. The stress absorbing layer between new roadbed and surface layers prevents
reflection cracks.
2. It provides a wearing layer between old and new asphalt pavement, which can
be used for preventive maintenance on the road.
3. Under-sealed layer of different road grades.
4. Bridge waterproof layer.
5. It also can be used for reconstruction of old cement pavement.Technical Parameters

Compentition advantages:

1. All colors are available according to your choice.
2. Fast production period, and quick arrangement of delivery.
3. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
4. Production time: within 35 working days
5. Logistic team, can cargo your truck fast and safety.

Name Rubber Chip Sealer
Model LMT5311TFC
Dimension (length/width/height mm) 11940×2496×3620
Tank volume (m3) 8
Aggregate hopper (m3) 12
Chassis SINOTRUK
Vehicle type 8×4 rear drive
Working speed(km/h) 3-4
Maximum flow of asphalt pump (L/r) 0.86
Maximum spreading width (m) 4
Asphalt spreading volume (L/m2) 0.5~3.0
Nozzles (mm) 34
Aggregate size 5~20
Drive system Hydraulic drive
