FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
Specifications
Brand Name :
FAW
Model Number :
CA4250P25K2T1E5A
Certification :
ISO9001
Place of Origin :
Qingdao
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000UNITS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
NUDE
Transmission Type :
Manua
Fuel Type :
Diesel
Emission Standard :
Emission Standard:
Drive Wheel :
6x4
Tractor truck Wheel Base :
3300+1350
Certifications :
ECE,CCC
Gross Vehicle Weight :
25000 kg
Engine Capacity :
> 8L
Description

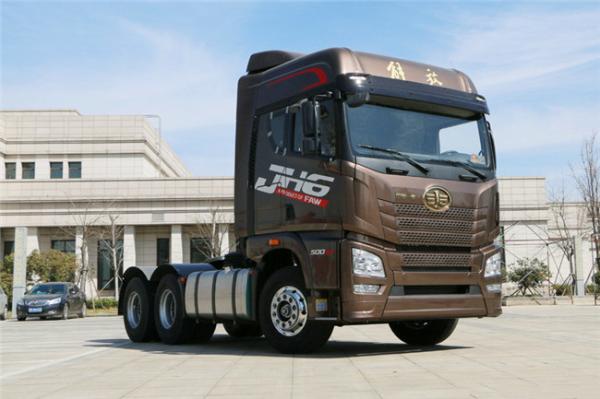

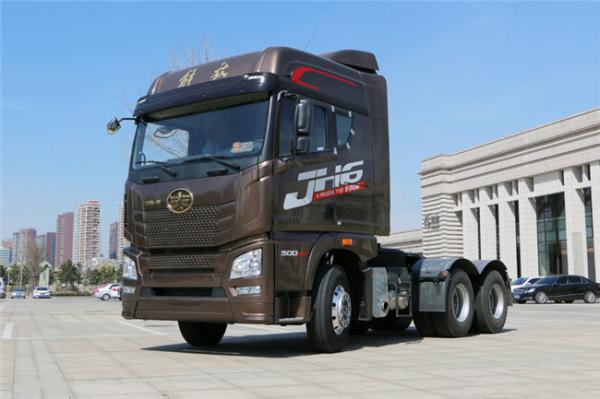

New FAW JH6 manual heavy tipper truck tractor left/right hand drive truck

Quick Details

Condition:New

Horsepower:> 450hp

Drive Wheel:6x4

Transmission Type:Manual

Emission Standard:Euro 2

Engine Capacity:> 8L

Fuel Type:Diesel

Brand Name:FAW

Size:6985X2495X3705(3910)

Gross Vehicle Weight:25000 kg

Product name:Tractor truck

Tractor truck Wheel Base:3300+1350

Economic peed(km/h):75-103km/h

engine model:WEICHAI WP12.460N/FAWDE CA6DM3-46

Product Features:

As one of the backbone forces of domestic heavy trucks, Qingdao Jiefang JH6 has continuously penetrated into the market for three years, taking users as the core, taking demand as the guidance, grasping the pain point quickly and grasping the market. It is understood that since JH6 products officially entered the market in May 2015, with its strong power, flexible control and comfortable driving experience, it has not only become an important partner of efficient logistics, but also gained a good reputation among users. In addition to the rising sales volume, it is also constantly refreshing the new record of the growth rate of domestic heavy truck market.

Product Specification:

Recommended Vehicle Model CA4250P25K2T1EA80 6X4 CA4250P25K2T1EA80 6X4

Mass P

arameter(kg)

Chassis net

weight kg

 8805kg 8870kg

MAX gross

kg

 25000kg 25000kg

Dimension

Parameter(mm)

Overall

Dimension

 6985X2495X3705(3910) 6495X2495X3705(3990)

wheel base

mm

 3300+1350 3300+1350

Performance

Parameter

Max.

Speed(km/h)

 126km/h 118km/h
Economic peed(km/h) 75-103km/h 75-103km/h

Max.

Gradeability(%)

 32% 34%
Cabin JH6/Flat floor/High roof/Row and a half/RH JH6/Flat floor/High roof/Row and a half/
Engine Model WEICHAI WP12.460N FAWDE CA6DM3-46

Rated

Power(kw/rpm)

 338/1900 kw/(r/min) 338/1800 kw/(r/min)

Max.

Torque(Nm/rpm)

 2110/1000-1400 N.m/(r/min) 2200/1000-1400N.m/(r/min)
Transmission Model EATON ETO-22113 CA12TAX230A5
Gears

manual shift gear,13

forwars gear,3 reverse gear

manual shift gear, 12

forwars gear,2 reverse gear
Axles Steering Axle max loading bearing 6500kg max loading bearing 7000kg
Drive Axle

single reduction 457, reduction

ratio 3.7, maximum load

13000*2kg

single reduction 457, reduction ratio 4.1,

maximum load 13000*2kg
Body 50#/90# 50#/90#
JOST/LD…… JOST/LD……
tyre 315/80R22.5 20PR/10+1 315/80R22.5 20PR/10+1
Emission Level E3-E5 E3-E5
Certifications ECE,CCC ECE,CCC
Remarks

Recommend

Market Type

 Cargo Type Daily necessities, department stores,
groceries (cigarettes, alcohol,
electrical appliances, etc.)		 Daily necessities, department stores,
groceries (cigarettes, alcohol,
electrical appliances, etc.)

Main Working

Condition

back and forth with full load,cargo

gross weight <=65T

back and forth with full load,

cargo gross weight <=65T
Operating Condition

suitable for long distant

transportation,load

distance>=100km
highway
common speed 70-80km/h

suitable for long distant transportation,

load distance>=100km
highway
common speed 70-80km/h
Driver Position left right
Customer Type

high and mid grade,

prefer quality and price

high and mid grade,

prefer quality and price

FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI OptionalFAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI OptionalFAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional

FAW JH6 Manual 6x4 Heavy Tipper Truck Tractor Left / Right Hand Drive Diesel WEICHAI Optional
