Specifications
Brand Name :
FAW
Model Number :
CA1191P1K2L3T1YA80
Certification :
CCC/CE/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units/month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Drive Wheel: :
6x4
Horsepower :
251-350h
Volume of water tank: :
15000L
Fuel Type :
Diesel
Condition: :
New
Gross Vehicle Weight :
25000
Description

New FAW Diesel 6x4 10 wheels 15000L Water Fog Cannon Suppression Dust Truck

Product Description:

The multi-function dust suppression vehicle is equipped with an environmentally- friendly dust-removal air-assisted sprayer . The chassis engine drives the fan and high - pressure water pump to realize long-distance spray , which has the characteristics of safe and reliable operation , long spraying range and small water consumption . It can be used for haze control , dust removal and cooling of urban streets , dust suppression of industrial and mining enterprises , as well as sterilization and disinfection in public places and green gardens. In addition , the vehicle is equipped with front flusher , opposite flusher, rear sprinkler , greening irrigating device and remote water monitor , which can realize water spraying , cooling flushing operation on the pavement and meets the requirements for urban billboard cleaning and road greenbelt irrigation.

Vehicle performance:

The main operation devices of HJK5180TDY5DF multi-functional dust suppression vehicle include two parts: dust suppression spray device and low pressure flushing device.

1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.

2) Low pressure flushing device

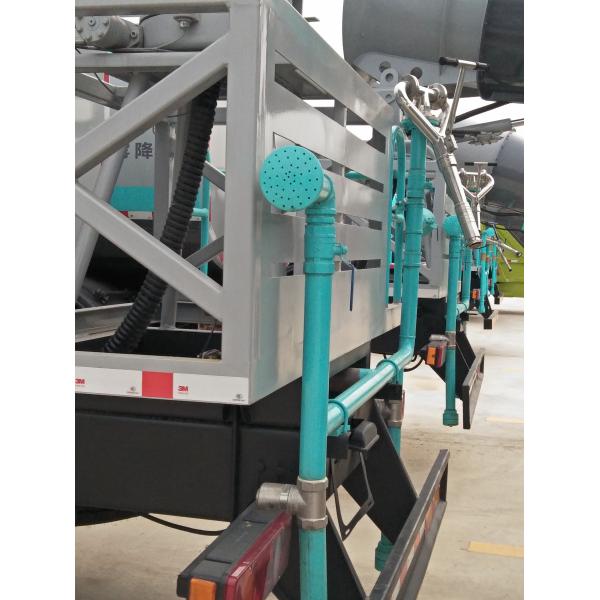

Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle , remote water cannon , greening irrigation, pressure outlet interface, etc.
Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.

Item

Parameter

Working specification

Working Speed

Low pressure washing

8-20km/h

Fog spray system

8-20km/h

Longest range of water fog spray

>120m

Water flow rate of fog spray

120~260L/min

Longest working time of fog spray

125min

Water flow rate of low pressure washing

600~800L/min

Low pressure washing width

≥24m

Water spray width

14m

Water cannon range

≥38m

Maximum volume of water tank

15m³

Drive performance

Highest speed at full load

94km/h

Brake distance(Full load at the speed of 60km/h)

≤36.7m

Minimum turning diameter

<19.7m

Mass parameter

Kerb weight

13100kg

payload

11900kg

GVW

25000kg

Structure Size

Overall dimension(L×W×H)

11830x2500x3900mm

Tread

Front wheel

1950mm

Rear wheel

1878mm

Approach angle

13°

Departure angle

Min. ground clearance

210mm

15000L Water Fog Cannon Suppression Dust Truck FAW Diesel 6x4 10 Wheels

15000L Water Fog Cannon Suppression Dust Truck FAW Diesel 6x4 10 Wheels

Vehicle application condition:

1) Haze settlement operation
In condition of severe fog and haze in the air , water fog spray operations can be carried out in important areas such as main roads , squares, air quality monitoring points. Fine particles floating in the air could be absorbed by atomized droplets and they settle on the road surface. It can reduce the concentration of pollutants by more than 70% and significantly improve the air quality. Its horizontal spray distance is greater than 100m, and vertical spray height is greater than 30m.


2) In the places of demolition blasting, mine excavation crushing and other work occasions which produce a large amount of dust. In this way , large flow of atomized droplets can settle dust in real-time and large-scale, effectively preventing dust pollution diffusion.

3) Drug spraying operation
It can spray herbicides and insecticides on farmland , grassland and mountain forests, and disinfectant spraying on special sites such as landfills and epidemic prevention areas. Compared with traditional manual spraying, the operation efficiency is more than 100 times higher.

4) Road washing operation
The car is equipped with a front duck-billed washing device, a middle-cone hedging device and a rear sprinkler working device, which can replace a common cleaning car for road surface washing operation. Automatic washing device can also be optional selected to wash the road surface.

5) Long distance water cannon operation

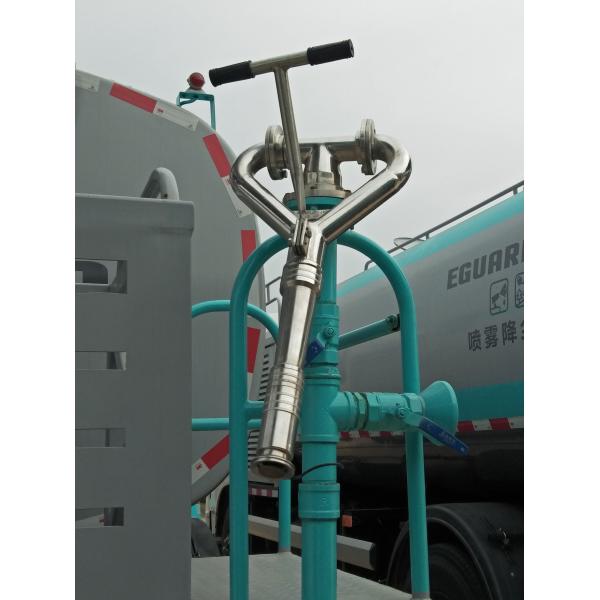

A stainless steel long-range water cannon with an effective range of more than 38 meters and a flow rate of more than 800L/min that installed at the rear of vehicle, which can be used for many purposes, including auxiliary fire fighting, watering of garden greening belts, etc.

6) Other application
Customers can also use the fog spray fans and waterways flexibly according to local specific needs , so that new functions can be realized . For example, using spray device for dust removal and cleaning operations on roadside trees or green belts; in heavy snow weather, in order to prevent snow from breaking trees and blocking roads, we can use the high speed airflow g
enerated by spray fans to blow up accumulated snow on trees.
