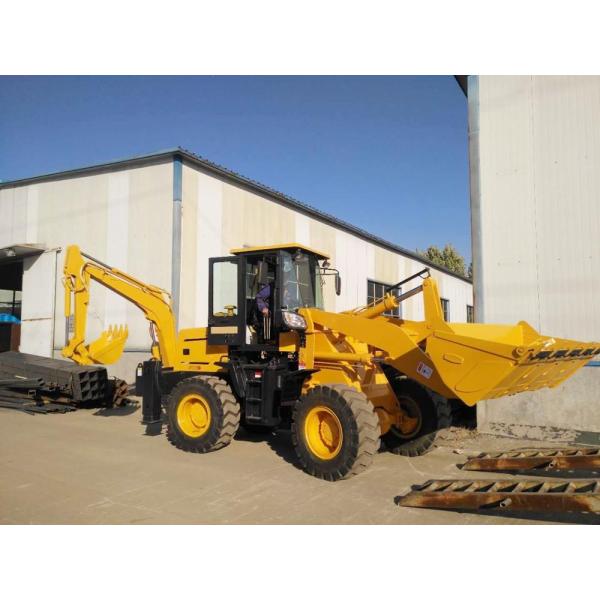

37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
Specifications
Brand Name :
WZ
Model Number :
WZ10-20
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 pieces per month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Model: :
WZ10-20
Machine Weight: :
3400kg
Condition: :
New
Dimension(Long * Breadth * High): :
5500*1720*2650
Power(W): :
37w
Color: :
Optional
Description

WZ10-20 Backhoe Loader Road Construction Machinery With 3.4 Tons Weight

Product information

Weichai four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin. It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO; its forward and backward directions are switched by electric hydraulic control. The loader working device is an eight-bar automatic leveling mechanism. The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working. The excavator working device can rotate 180 degrees along the gyration center at the back of the frame. The A-shaped stabilizer and the center-positioned excavating device are strong in working stability. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size. Its cab has a board view and is configured with rail-mounted upturning glass window.

Specification

Dimensions (mm) 5500*1720*2650
Operating Weight 3400 kg
Rated Load 1500 kg
Rated Power 40 kw (55 hp)
Backhoe Capacity 0.1 m³
Loader Capacity 0.75 m³
Backhoe Max. Digging Depth 2000 mm
Backhoe Max. Digging Height 3300 mm
Backhoe Max. Digging Radius 2900 mm
Backhoe Max. Dumping Height 1850 mm
Loader Max. Dumping Height 2800 mm
Loader Max. Dumping Distance 800 mm
Backhoe Max. Breakout Force 25 kn (2550 kg)
Loader Max. Breakout Force 36 kn (3672 kg)
Travel Speed 0 - 26 km/h
Gradeability 30°
Min. Turning Radius 3500 mm
Working Pressure 16 MPa
Wheel Tread 1630 mm
Wheel Base 2670 mm
Tire Model 20.5 - 16
Tire Pressure 250 KPa
Transmission Type Hydraulic

FAQ:

1.Q: How to get an accurate quotation?
A:To get a quotation list, please send inquiry or send email to us directly. The email addresses are shown in the contact detail page. As we have different models and different implements, please indicate following details in your inquiry email.
1) Output (how many HP) or Model No.
2 ) Cooling system (water cooling system / radiator)
3) Starting method (hand crank / electric (motor ) start)
4) Order quantity: sample order or container order
These are very important for providing you an accurate and favorable price.
2. Q: What’s your payment item ?
A: T/T, L/C.
3. Q:About the shipment
A:Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which doesn't include shipping cost.
If you need us ship the machine to your country, please also tell us the destination port.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than 10 years.
We have exported to 80 countries.

Photos

37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
