White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
Specifications
Brand Name :
SHACMAN
Model Number :
SX3257DM324
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
T/T, L/C
Supply Ability :
100 Unit/Units per Month
Delivery Time :
15-30 DAYS
Packaging Details :
NUDE
Drive Wheel :
6x4
Horsepower :
290
Gross Vehicle Weight :
12220
Capacity (Load) :
21 - 30t
Emission Standard :
Euro 2
Engine Capacity :
< 4L
Dimensions (L x W x H) (mm) :
7835*2496*3450
Description

SHACMAN F2000 Tipper 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive

Quick Details

Drive Wheel:6x4

Capacity (Load):21 - 30t

Horsepower:251 - 350hp

Condition:New

Transmission Type:Automatic

Emission Standard:Euro 2

Fuel Type:Diesel

Engine Capacity:< 4L

Gross Vehicle Weight:12220

Place of Origin:Jiangsu, China

Brand Name:Shacman

Dimensions (L x W x H) (mm):7835*2496*3450

Optional:Right hand drive

Optional color:White, Red, Black, etc

Product Description

The f2000 Series products are the latest success of SHACMAN. Introduced in 2009 it quickly became one of our top selling products. The f2000 has an improved driver's cab utilizing advanced technologies from the German truck giant, MAN. The power of the f2000 series comes from Wei Chai Euro III, IV engines or the Euro III, IV and V electric control engines Made by Cummins. f2000 series utilize technologies introduced by MAN in its front/rear axles and its suspensions, cooling system of the chassis, the intake/exhaust systems and the chassis structure/layout. Powerful, safe, reliable and comfortable, the f2000 is a refined product line positioned in the high-end market of the truck manufacturing industry. The f2000 series has many optional equipments to customize from; it is a new generation of products that meets the toughest demands and requirements for all purposes under any working condition.

Main Parameter
SHACMAN F2000 6×4 DUMP TRUCK
Cab MAN F2000 Cab Single bed Air conditioner
Dimension(Lx W xH)(mm) 8275×2500×3450mm
Total mass(kg) 25000kg
Kerb mass(kg) 11200kg
Rated mass(kg) 13670kg
Payload(kg) 25000kg
Approach / departure angel 16/66
Front/rear suspension(mm) 1525/1600
Max. gradeability (%) 28
Engine brand Weichai Engine
Engine model WP10.290E32,290hp
Rated output power 213kw
Torque(N.m r. p. m) 1160N.m/1200-1600rpm
Rated speed(rpm) 2200rpm
Emission Standard E-II
Displacement(L) 9.726L
Driving type 6×4
Axle number 3
Wheel base(mm) 3775+1400mm
Clutch φ430 diaphragm spring
Gearbox FAST 10JSD120,10 Forward&2 Reverse,Manual
Front axle 7.5T MAN 7500kg
Rear axle 16T STR 2×16000kg
Ratio 5.73
Steering ZF technology Left-hand drive(LHD)
Type 12R22.5,10+1pc
Brake system ABS(Four channel)
Tank capacity(L) 380L
Max. speed (km/h) 77km/h
Color Optional
Cargo box size(mm) 5200×2300×1350mm(16m³) bottom8mm,side4mm
Lifting style Middle lifting
Unit price(Fob Shanghai) Usd36,200/unit
1:Payment terms: Down payment is 30% of the total amount, the balance will be paid before delivery.
2:Delivery date: 40 working days after receiving the down payment.
3:The price's period of validity is 30days.

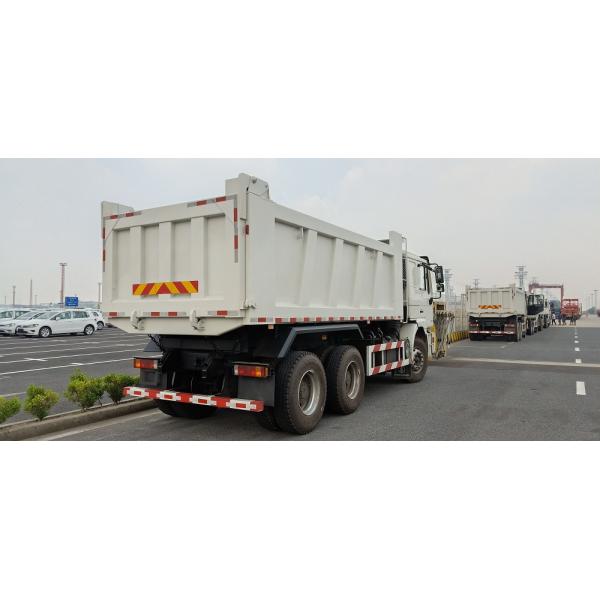

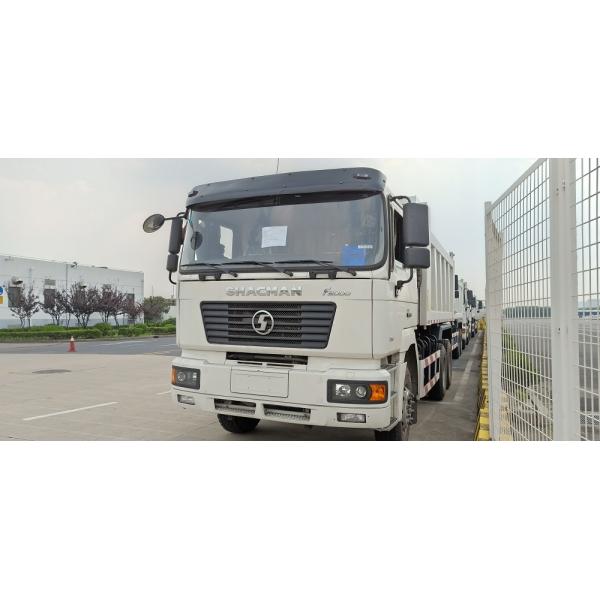

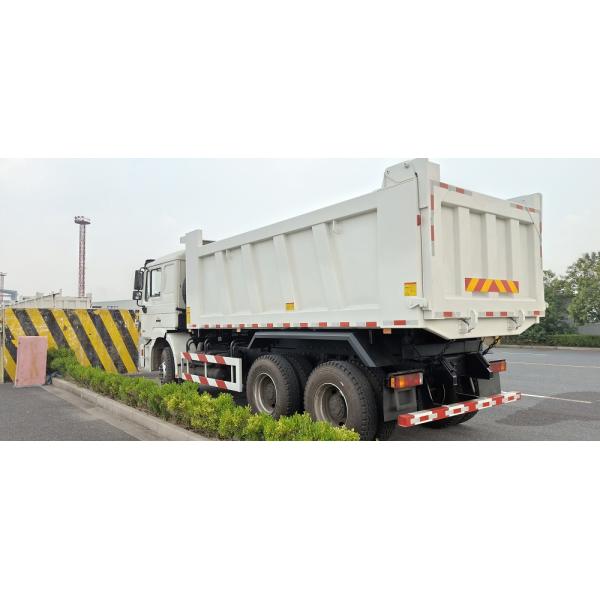

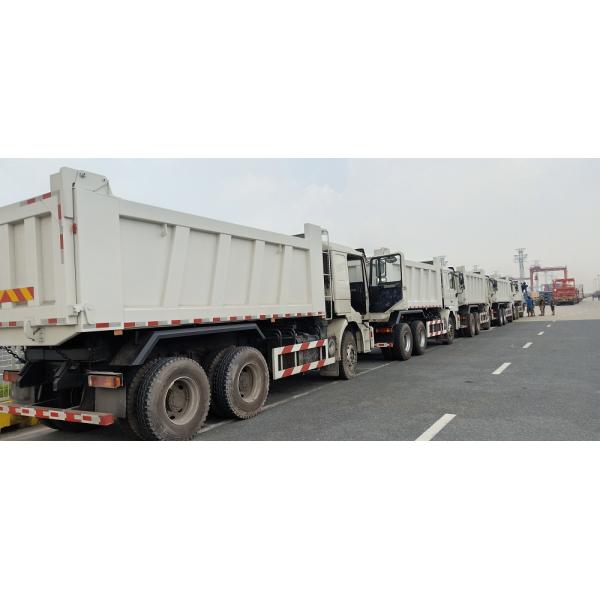

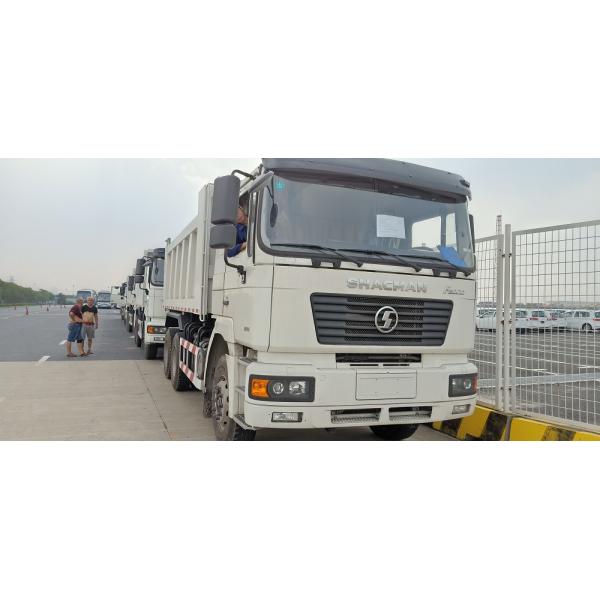

Product pictures

White F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive TipperWhite F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive TipperWhite F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive TipperWhite F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive TipperWhite F2000 6X4 Dump Truck 21-30 Tons Euro 2 Right Hand Drive Tipper
