Specifications
Brand Name :
HOWO
Model Number :
ZZ3257N3647A
Certification :
CCC/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Day dump truck
Delivery Time :
30-45 work days
Packaging Details :
Nude
Drive Wheel :
6x4
Horsepower :
336HP
Fuel Type :
Diesel
Gross Vehicle Weight :
12450
Tire :
12.00R20
Cab :
HW76
Rear axles :
HC16
Capacity (Load) :
25T
Description

SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper Truck 336Hp Euro 2

Product Description

A dump truck is a truck used for transporting loose material for construction, such as sand, gravel, or demolition waste . A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be dumped on the ground behind the truck at the site of delivery. It is also known as a tipper, tipper lorry, tipper truck.

Product Parameter

Truck Model ZZ3257N3647A (LHD)
Truck Brand SINOTRUK-HOWO
Dimension(Lx W xH)(unloaded)(mm) 8500X2500X3450
Cargo body size (L*W*H, mm(mm) 5200X2300X1350
Cargo body thickness(mm) bottom:8mm, side:6mm,
Lift type of Carriage Ventral lifting T type

Approaching angle/Departure angle(°)

 19/26
Overhang(front/rear) (mm) 1500/1670
Wheel base (mm) 3625+1350
Max speed(km/h) 75
Curb weight(kg) 124500
Loading Weight(kg) 250000
Fuel tanker capacity (L) 300L with locking fuel cap
Fuel consumption(L/100km) 20-40 L/100 km
Clutch Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

 Model WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
Horse Power, max(kw/rpm) 336HP, 2200
Emission Standard EUROII
Transmission Model HW 19710,10 forwards and 2 reverse

Brake system

 Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake

Engine exhaust brake

Steering system

Model hydraulic steering with power assistance
Front axle

HF9 , Steering with double T-cross section beam

Loading capacity:9000KG
Rear axle HC16, Casting axle housing, central double reduction with differential locks between axles and wheels
Color Red
Tire 12.00R20 tubelee tyre 11 pieces

Electrical system

 Operating voltage 24V,negative grounded
Starter 24V,7.35KW
Alternator 28V,1500W
Batteries 2*12V.165Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab HW76 cabin, with one sleeper.

Our Service

1. Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers new accessories with free.

2. Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will serve the global customers better.

3. We are serious about after-sales service.

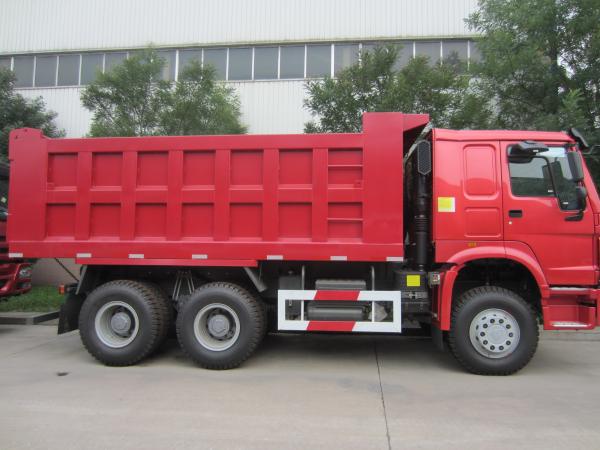

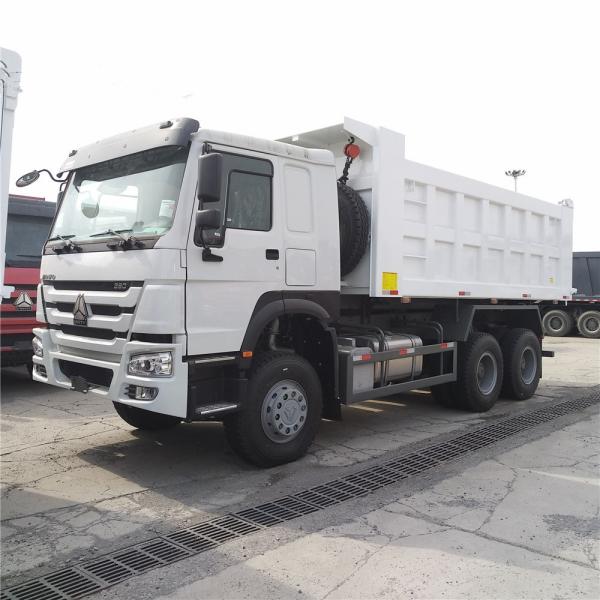

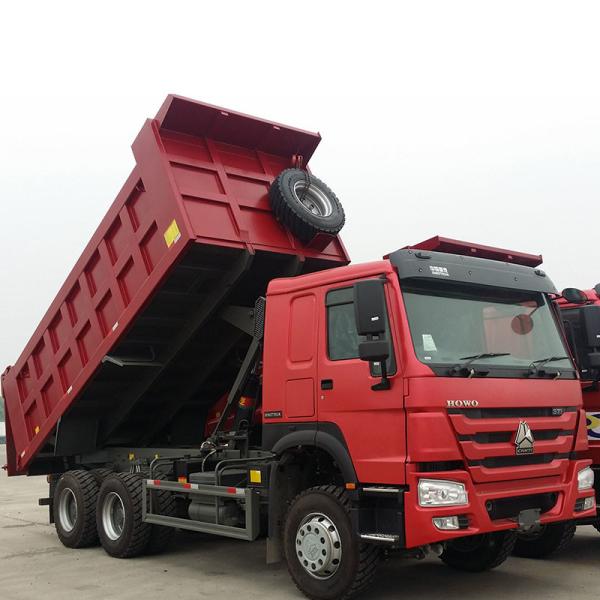

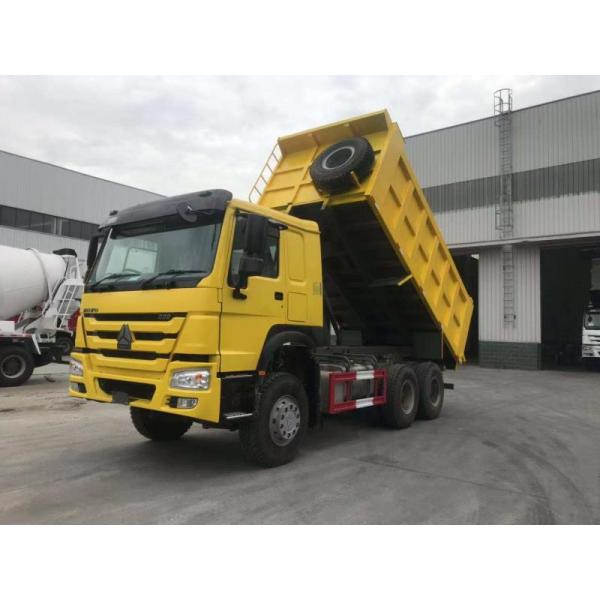

Product Picture
