Specifications
Brand Name :
HOWO
Model Number :
ZZ1107D3815
Certification :
CCC,ISO
Place of Origin :
Shandong, China (Mainland)
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 pieces per month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Sprinkling Area (m) :
> 16 m
Gross Vehicle Weight :
10000
Drive Wheel :
4x2
Transmission Type :
Manual
Emission Standard :
Euro 2
Tire :
8.25R16
Color :
Customer's Request
Fuel :
Diesel
Description

China SINOTRUK HOWO 4×2 Light 5000L Watering Cart Optional Color With Diesel​

Product description

water sprinkler is also named Water Tanker truck, water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle

The water sprinkler is suit to spray wash all kinds of road, trees, Lawn green, Building construction, high speed road.

With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail Cleaning and so on.

The water truck also can transport water, drinking water, discharge water and emergency fire function.

Water truck consist of water tank , PTO . water pump . pipeline system , inlet and outlet , platform chassis .

Chassis available : Foton , Sinotruk howo . FAW. Shacman , IVECO . etc

Water truck equipment optional : GPS . gimbaled nozzle , solenoid valve , pneumatic valve , cabin operation , external power . tank body corrosion and rust protection ,etc

Water truck capacity: 4cbm , 5cbm , 6cbm , 8cbm , 10cbm , 13cbm ,15cbm , 20cbm ,20-30cbm

We can custom water truck as customer’s requirement .

Product parameter

Truck Brand SINOTRUK—HOWO Light Water Tank Truck
Driving wheel 4x2
Driving type Left Hand Driving
Chassis Model ZZ1107D3815C1
Dimension(Lx W x H)(unloaded)(mm) 7500*2450*2750
Tank Volume 5,000L
Tanker body material Q235B
Thickness of tanker end/body 5mm
Front Spray water Duckbill type
Rear sprinkling Cylinder type
Water cannon with
Water absorption pipe(Inner steel ) 3” 3 meters
Approaching angle/Departure angle(°) 20/18
Overhang(front/rear) (mm) 1160/1835
Wheel base (mm) 3800
Leaf spring 9/12+9
Max speed(km/h) 90
Curb weight(kg) 2400
Total Weight(Kg) 10000

Engine

Model

4102

4- stroke direct injection diesel engine, 4 cylinders in line with water cooling

Fuel type Diesel
Horse Power, max(kw/rpm) 116hp
Displacement(L) 3.76
Emission EURO II
Fuel tanker capacity (L) Standard
Transmission Model WLY6T46,6 forwards and 1 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Front axle 2.7
Rear axle 7.2
Color Optional
Tyre 8.25R16 Steel , 6+1 Spare
Cab 2080 standard Cabin with air conditioner.

Manufactory

INTERNATIONAL STANDARD MANUFACTURING

Strength casting legend, advanced production technology ensures the first-class quality level,Professional heavy truck production lines of international standards create the most trusted card products for you.

SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.

Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.

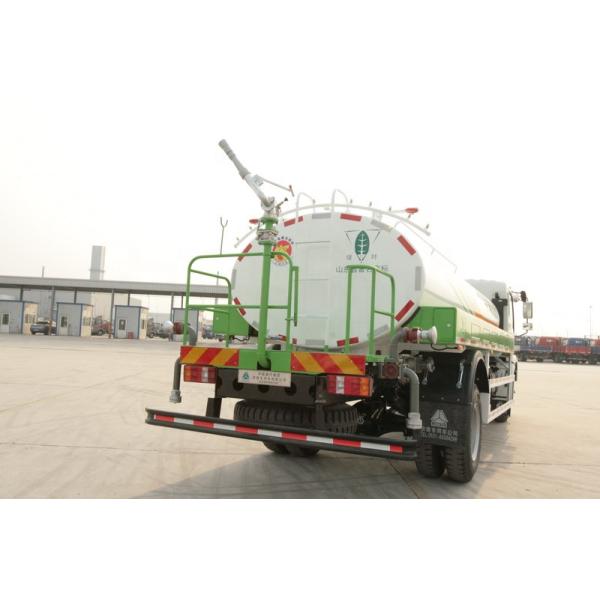

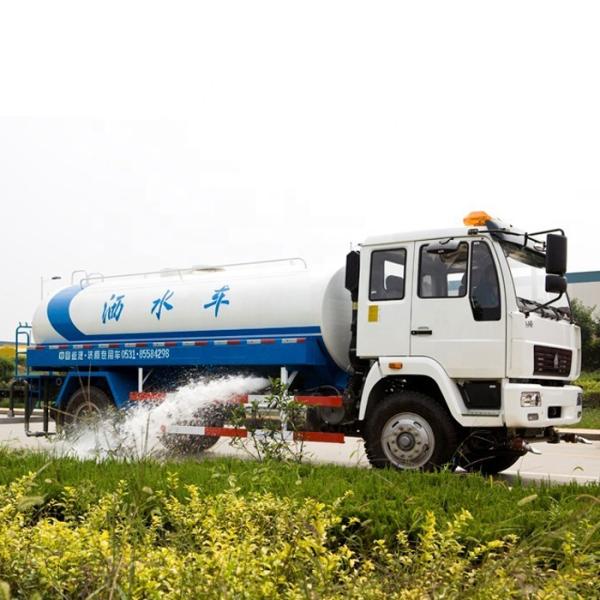

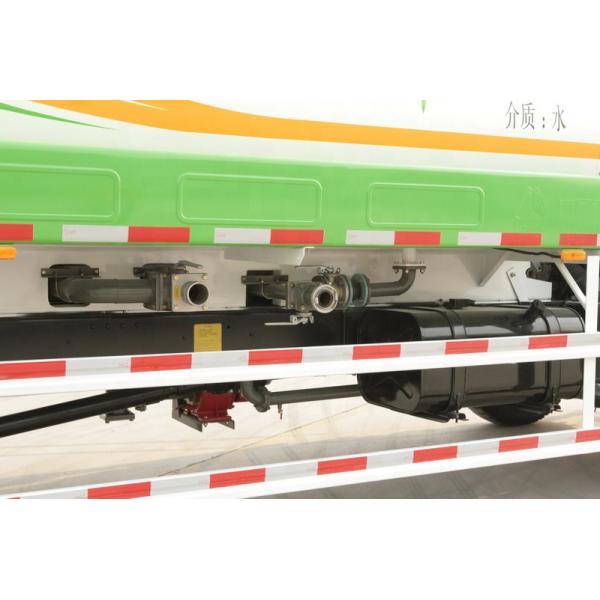

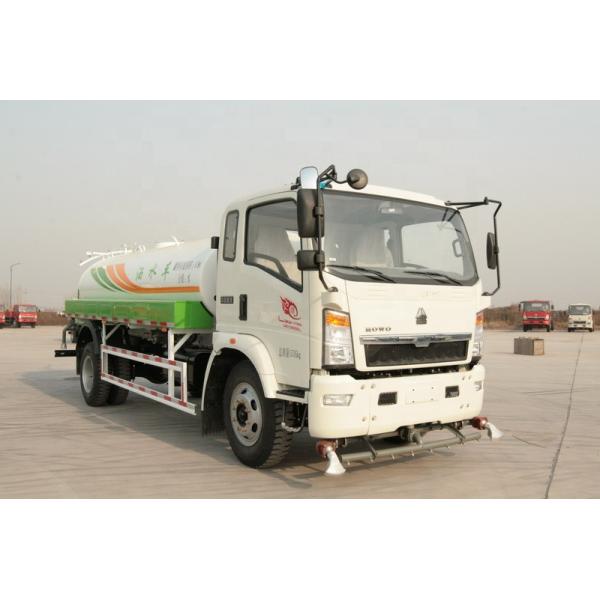

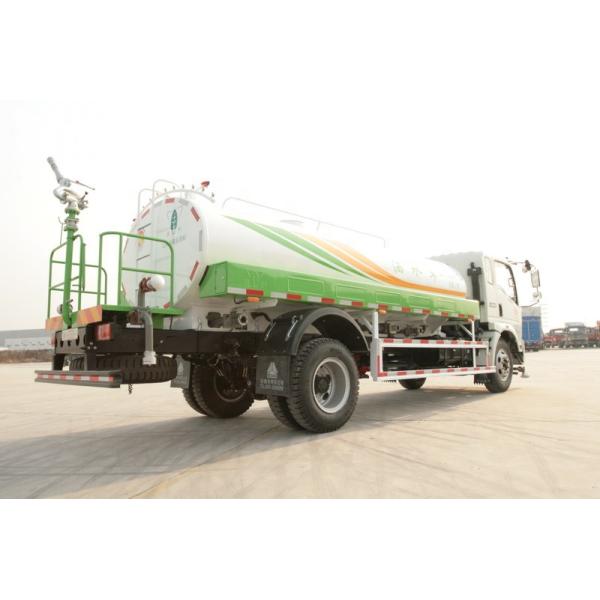

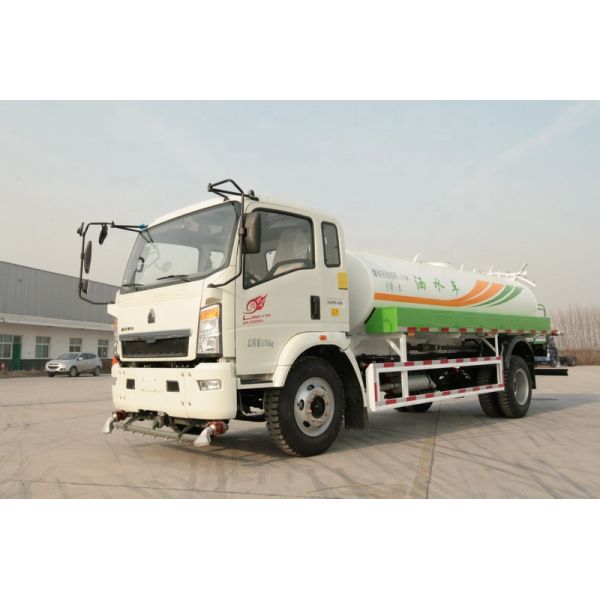

Product photo

SINOTRUK HOWO 4×2 Light 5000L Water Tanker Truck With Diesel / Water Spray VehicleSINOTRUK HOWO 4×2 Light 5000L Water Tanker Truck With Diesel / Water Spray VehicleSINOTRUK HOWO 4×2 Light 5000L Water Tanker Truck With Diesel / Water Spray VehicleSINOTRUK HOWO 4×2 Light 5000L Water Tanker Truck With Diesel / Water Spray VehicleSINOTRUK HOWO 4×2 Light 5000L Water Tanker Truck With Diesel / Water Spray VehicleSINOTRUK HOWO 4×2 Light 5000L Water Tanker Truck With Diesel / Water Spray Vehicle
