5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
5000-7000l Special Purpose Truck , Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height
Specifications
Brand Name :
Sinotruk
Model Number :
HOWO
Certification :
CCC/ ISO
Place of Origin :
JINAN CITY OF CHINA
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 UNITS/MONTH
Delivery Time :
30-45 working days
Packaging Details :
Nude
Tank Capacity: :
5001 - 7000L
Drive Type: :
4X2
Size: :
8405x2500x3540
Max. Work Height: :
50m
Storage: :
Water ,foam , Powder
Wheelbase: :
4500mm
Description

HOWO 5000-7000l Water Tanker Fire Eengine Foam Fire Fighting Truck With 50m Work Height

Specification:

GVW19870kg Driving Type 4x2
Model JDF5163GXFSG
Cab Double row, allowable 3+3 passengers
Engine(Hp) 180
Power(Kw) 196
Wheelbase 4500
Front/Rear Suspension 1430/2495
Steering Power steering
Approach/departure angle 14/12
Wheels & tire 9.00-20
Tire number 6+1
Tank Dimensions(mm)
Cubage (m3) Water tank 5
RHD or LHD optional
Overall Dimensions(mm) 8405×2500×3540
Curb weight (Kg) 11720
Engine Model MC05.18-40
Horsepower 180
Maximum output Kw 132
Maximum torque N.m 700
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Displacement 4.58L
Sinotruk brand, Euro 4
Driving passenger 2,3
Transmission 6 speed forward and 1 reverse, manual
Front Axle 5.5T
Rear Axle 10T
Brake System air brake ,exhaust brake
Color and LOGO customized
Electric system 24V

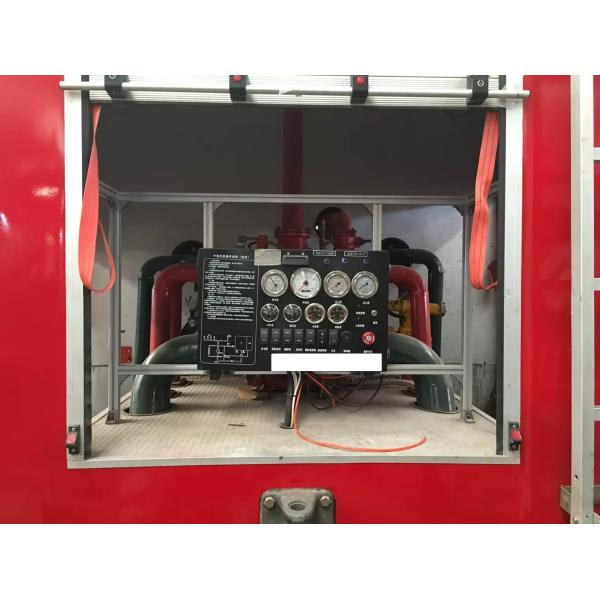

Fire equipment part Fire pump CB10/40 , rated pressure 1.0MPa, flow40L/s
Fire gun PL32 , flow 32L/s , jet distance ≥50m

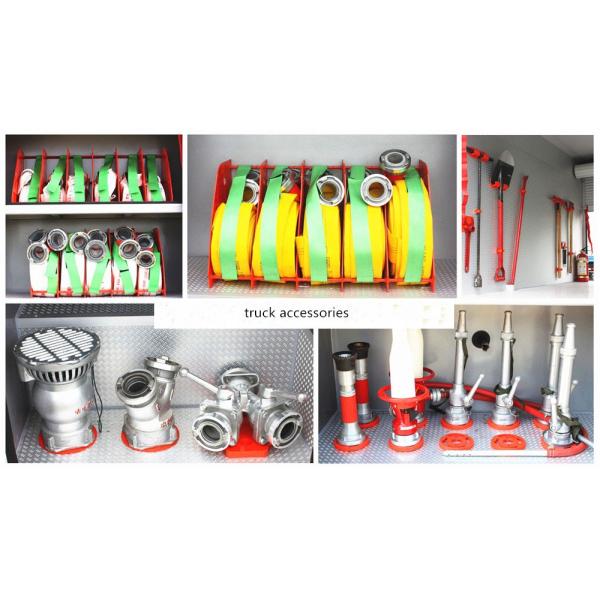

Standard configuration national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank.
Optional configuration foam type, dry powder type, stainless tank, other requirements.
Delivery date Within 20 days after receipt advance
Packing Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

Description:

1. Capacity: 2-15CBM;
2. Tank Material: cabon steel plate, stainless steel plate, etc;
3. Cab:Single row or double rows, Right/Left hand drive, with A/C;
4. Fire pumps: middle pressure pump, low pressure pump, high pressure pump, ordinary pressure pump, etc;
5. Other descriptions: Equipment box with 5-9 curtain doors, truck body with stoving varnish, 1100-1600mm alarm lamp, can be equipped with all kinds of fire fighting equipment.


Application:


It is widely used in urban public security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out a fire quickly, is an ideal fire fighting equipment.


Advantages:

1, The price is competitive; we are the direct channel to supply the fire-fighting truck

2, Powerful engine and strong frame, which can suit to all kinds of road conditions, especially for the tough roads

3, All colors are available according to your choice.

4, Fast production period, and quick arrangement of delivery.

5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and after-sales services.

Packaging & Shipping

1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners
