HBXG SD7N 230HP Engine Crawler Bulldozer With 404mm Min. Ground Clearance

Product Overview

1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

FAQ

1.Why chose you?

Product paremeters

Dozer Tilt

(not including ripper) Operation weight (Kg) 24300

Ground pressure(KPa) 71.9

Track gauge(mm) 1980

Gradient 30°/25°

Min. ground clearance (mm) 404

Dozing capacity (m³) 8.4

Blade width (mm) 3500

Max. digging depth (mm) 498

Overall dimensions (mm) 5982×3500×3402

(Including ripper) 7616×3500×3402

Engine

Type CUMMINS NT855-C280S10

Rated revolution (rpm) 2100

Flywheel power (KW/HP) 169/230

Max. torque (N•m/rpm) 1097/1500

Rated fuel consumption(g/KW•h) ≤235

Undercarriage system

Type The track is triangle shape.

The sprocket is elevated elastic suspended.

Number of track rollers (each side) 7

Pitch (mm) 216

Width of shoe (mm) 560

Gear 1st 2nd 3rd

Forward (Km/h) 0-3.9 0-6.5 0-10.9

Backward (Km/h) 0-4.8 0-8.2 0-13.2

Implement hydraulic system

Max. system pressure (MPa) 18.6

Pump type High perssure gears pump

System output(L/min) 194

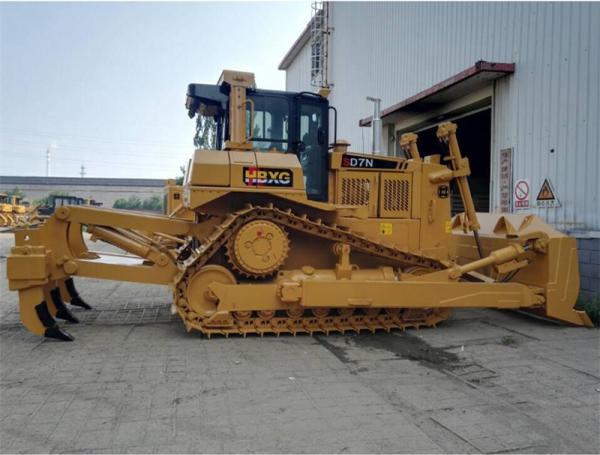

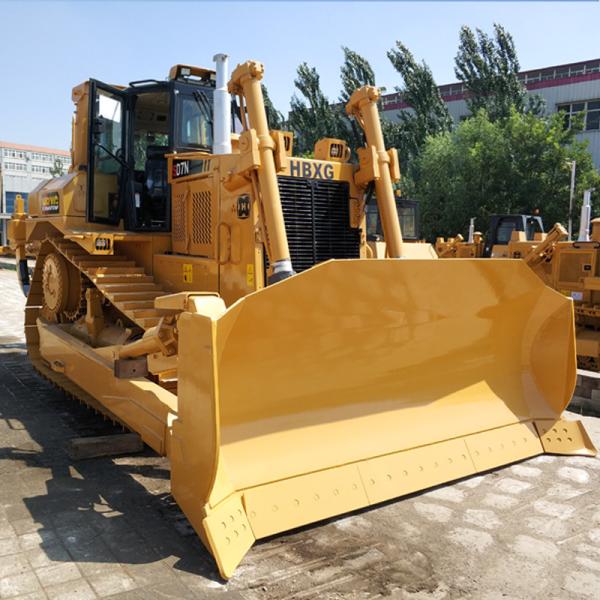

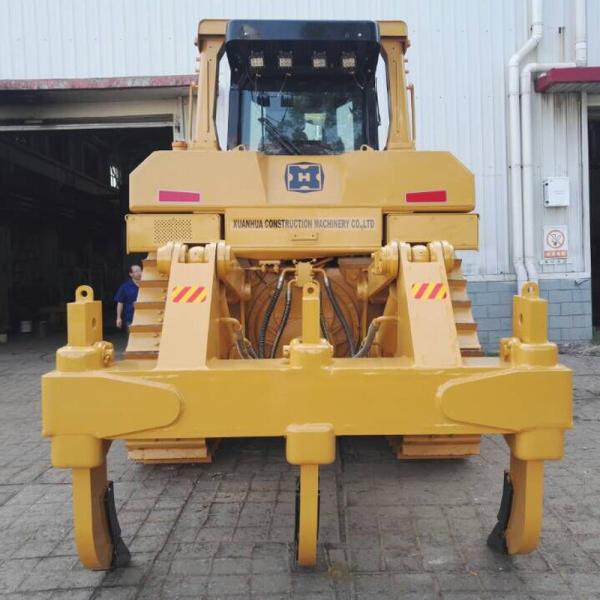

Product pictures
