4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
Specifications
Brand Name :
FAW
Model Number :
XZJ5310JSQJ5
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 piece
Price :
Nagotiation
Payment Terms :
L/C, T/T
Supply Ability :
500/piece/month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Feature :
Truck Crane
Application :
Engineering & Construction
Product name :
Hydraulic Truck Crane
Crane type :
Straight boom crane or folding crane
Drive type :
8x4
Overall dimension :
12000×2500×3884,3950,3691,3702(mm)
Box internal dimension: 8150,8100,8050,8000×2300×600(mm) Box intern :
8150,8100,8050,8000×2300×600(mm)
Description

FAW 8x4 Truck Mounted Crane, 12Ton Truck Crane / Truck With Crane ​

Product Description

Main specifications
Product model,name
Truck with crane
Gross vehicle weight(kg)
310000kg
Drive type
8x4
Payload(kg
11905,13480,13600,13620,12760,12880,12900,11970,13(Kg)
cab seats (man)
2, 3
Curb weight(Kg)
18900,17325,17205,17185,18045,17925,17905(Kg)
Overall dimension (mm)
12000×2500×3884,3950,3691,3702(mm)
Approach/departure angle (°)
19/12(°)
Box internal dimension(mm)
8150,8100,8050,8000×2300×600(mm)
Number of axles
4
Front/rear hang(mm)
1400/2750(mm)
Axle load(Kg)
6500/6500/18000
Wheelbase(mm)
2400+4100+1350
Max speed(Km/h)
86(km/h)
Chassis specifications
Chassis model
FAW
Tires No.
12
Tire specification
11.00R20,10.00R20,11R22.5,295/80R22.5
Steel spring number
9/9/11,10/10/11,10/10/10
Front track(mm)
1950/1950
Fuel type
diesel
Rear track(mm)
1847/1847,1878/1878
Emission standard
Euro 3/4/5
Transmission
8/9/12gears
Cab specification
Flat cab, tiltable luxurious interior trim, seat, and sleeper. with power steering, air conditioning can be equiped if customer requires.
Engine specification
Engine model
CA6DK
Displacement(ml)
7146ml
Power(Kw)
209kw
Optional
We can make the truck with crane according to customer's requests with the optional equipments below:

All kinds of truck with crane equipment.

Please advise us in advance if you have any special requests for the truck with crane, we can equip various kinds optional equipments for you.
Functions
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. Special used for cargo lifting and transportation of the larger wheel loaders or crawler loaders. The Cargo platform can extend to 3m.

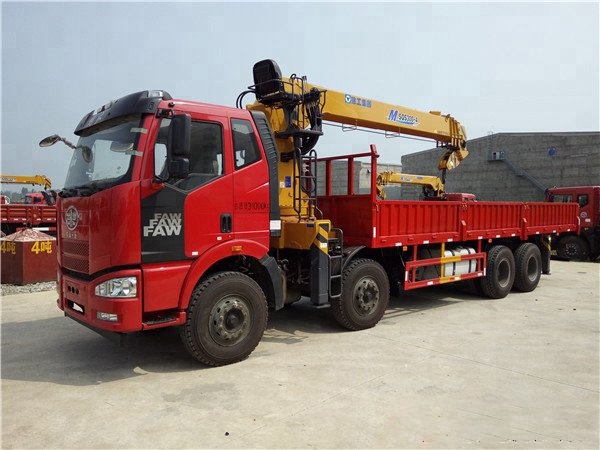

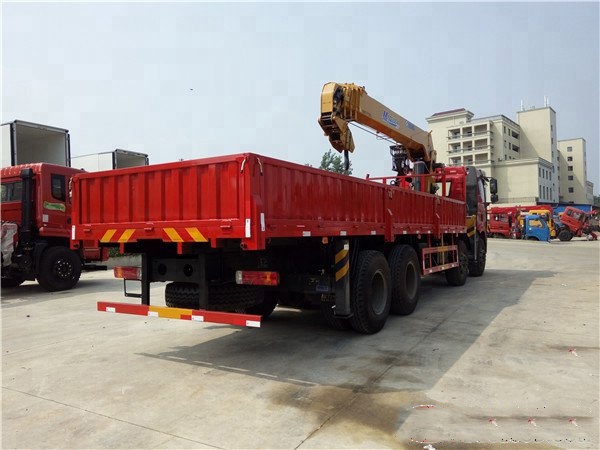

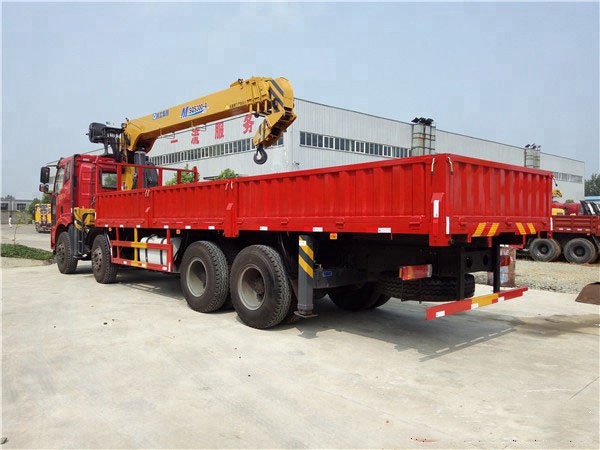

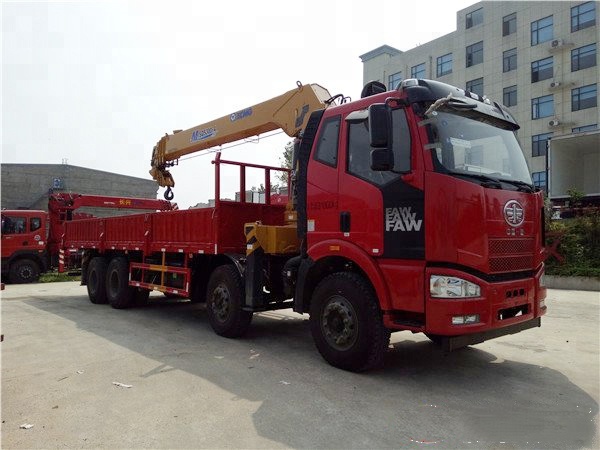

Product Pictures

4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane4 Axles 8x4 Truck Mounted Crane , 12 Ton Hydraulic Truck Crane
