Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Faw CLW5180JSQC 4*2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height
Specifications
Brand Name :
FAW
Model Number :
CLW5180JSQC
Certification :
CCC/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 units per week
Delivery Time :
30-45 work days
Packaging Details :
Nude
Model :
CLW5180JSQC
Span :
11m
Driving type :
4X2
Cargo Dimensions(mm) :
5500×2460×600
Color :
optional
Crane Max lifting height :
13m
Description

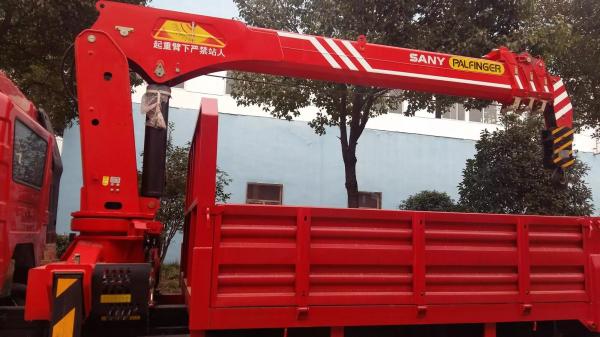

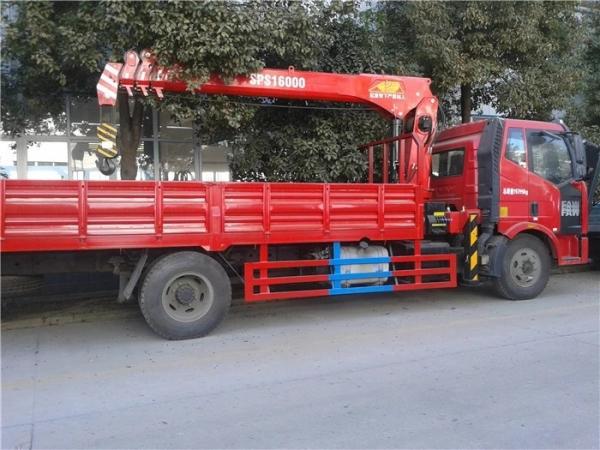

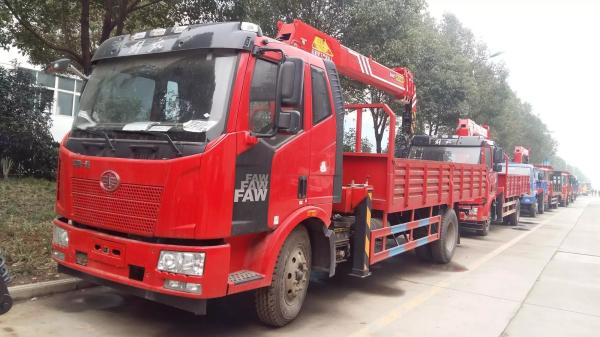

Faw CLW5180JSQC 4x2 Euro 3 180hp Boom Truck Crane With SQ6.3SA3 13m Lifting Height

Description:

Boom Truck Crane Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.Compact boom head .Extend the jib length, which can extend the working radius to the most.Hydraulic pipeline.The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.Operating cab.

Boom Truck Crane has large space and wide views. The control levers and instrument buttons are at hand.

Torque limiter

Packing:

1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners

Advantages

1. Supplying quick-wearing parts at the truck delivery.

2. Good quality parts produced by the truck manufacturing factory.

3. Only charge cost price for customer convenience.

4.Specialization ,standard and accurate meet your requirement.

5. The price is competitive.

6.Excellent and high-quality control

Specification

GVW18000kg Driving Type 4x2
Model CLW5180JSQC
Cab One and half row cab, allowable 3 passengers
Engine(Hp) 180
Power(Kw) 136
Wheelbase 5000
Front/Rear Suspension 1400/2300
Steering Power steering
Approach/departure angle 18/10
Wheels & tire 10-20
Tire number 6+1
Cargo Dimensions(mm) 5500×2460×600
Cubage (m3)
RHD or LHD optional
Overall Dimensions(mm) 9000×2550×3550
Curb weight (Kg) 9050
Engine Model BF6M2012-18
Horsepower 180
Maximum output Kw 136
Maximum torque N.m 660
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling, electronically controlled, diesel engine
Displacement 6.06L
FAW diesel engine, Euro 3, Euro 4 ,Euro 5 selective
Driving passenger 2,3
Transmission 8 speed forward and one reverse, manual
Front Axle 5.6T
Rear Axle 10T
Brake System air brake ,exhaust brake
Color and LOGO customized
Electric system 24V
crane Model SQ6.3SA3 Oil tank capacity 100L
Max lifting height 13m Max lifting moment 15.75T.m
Max working radius 11.1m Recommended power 20KW
Max loading 6300kg Weight of crane 2350kg
Type Straight arm Recommended hydraulic flow 40L/min
Arms number 4 Installation space 900mm
Turning angle 360 Rated hydraulic pressure 20MPa
Standard configuration truck crane equipped between the cabin and van body, mechanical leg
Optional configuration Any other famous brand crane, such as XCMG, SANY, it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional.
Delivery date Within 20 days after receipt advance
Packing Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
