3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ3257N3647A
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 pieces per month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Drive Wheel :
6x4
Horsepower :
251 - 350hp
Transmission Type :
Manual
Fuel Type :
Diesel
Capacity (Load) :
21 - 30t
Emission Standard :
Euro 2
Tire :
12.00R20
Description

Heavy Duty SINOTRUK 3 Axle HOWO 30 Ton Heavy Dump Truck In Africa Euro 2

Product Description

Sinotruck Dump Truck Product Advantages:

1.Popular dump truck both in domestic country and abroad.

2.10 Years export operation experience

3.Reasonable Price

4.Quick Delivery

5.Low oil consumption and longer lifespan.

Howo Dump truck applications:

1.The engine power 266hp-371hp,suitable for all kinds of roads.

2.Left hand driving and right hand driving for different countries.

3.Heavy loading dump truck,loading ranges from 15 tons to 70 tons.

4.For different weather and different environment,different trucks we can supply.No matter in Russia,Africa,south Amercia,middle east,southest Asia,it performs very well.

Product Parameters

SINOTRUK HOWO 336HP 6x4 dump truck
Truck Model ZZ3257N3847A
Steering type LHD or RHD
Dimension of box (LxWxH) 5800x2300x1500 mm
Thickness of box (mm) Deck:8mm;side:6mm
Lifting Type of carriage Middle Lifting,T type
Overall dimensions (LxWxH) 8607*2560*3386 mm
Approach angle/Departure angle(°) 19/23
front/rear suspension (mm) 1500/1870
Wheelbase (mm) 3825+1350
Max speed(km/h) 75
Vehicle Curb weight(kg) 12460
Gross mass (kg) 25000

Engine

 Model

SINOTRUK WD615.69,

4-stroke direct injection diesel engine,

6-cylinder in-line with water cooling,

turbo-charging and intercooling
Power, max(kw/rpm) 336 HP
Emission Euro2
Transmission/Gear box Model HW19710, 10 speeds forward ,2 reverse

Brake system

 Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model 8118,hydraulic steering with power assistance
Front axle HF 9,drum type
Driving axle HC16,16ton double reduction
Tire 12.00R20,radial tyres,11pcs (one spare)
Clutch φ430 diaphragm spring clutch,hydraulic control air power assisted
Cab

HW76,one bed,with A/C.

VOLVO technology ,comfortable cab.

4-point support floating suspension and shock absorbers,

up/down and front/back adjustable steering wheel,

VDO instrument and control module,safety belt ,

air horn,outer sun visor.

Electric system Battery 2x12V/165Ah
Alternator 28V-1500 KW
Starter 7.5 Kw/24 V
Color red,white,yellow. Optional as per customer’s requests.

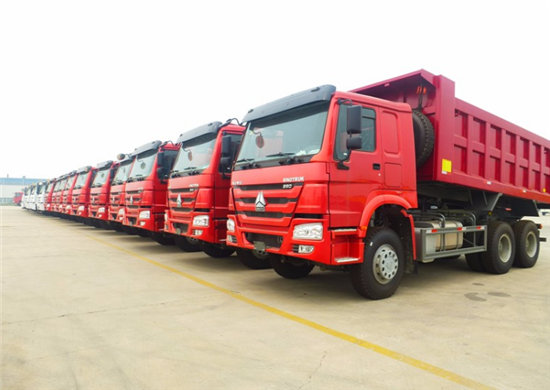

Product Picture

3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type
