Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
Specifications
Brand Name :
HOWO
Model Number :
CSC5317TQZZT5
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
11250X2500X3250
Driving type :
LHD RHD
Tires :
12.00R20
WHEELBASE :
1800+4600+1350
Emission Standard :
Euro 3
Transmission Type :
Manual
Loading capacity :
40tons
Description

HOWO 8X4 Crane 360 Degree Turning Crane Road Wrecker Truck Euro 3

Product Description

Sinotruk HOWO 50t Road Recovery Vehicle wrecker truck

Wrecker Tow Truck is also called tow truck wrecker ,wrecker truck. It is equipped with emergency operation equipment .When the car is breakdown on the road, an accident is happend, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded. Therefore, wrecker is also called the road emergency vehicle.USES: mainly used in road fault vehicle, urban peccancy vehicles and emergency rescue.

Features of sinotruck howo wrecker truck

1. Wrecker truck is fully hydraulic, and the power gets from the engine of chassis.
2. Wrecker truck receives its power by the Power Take-Off (PTO)/ Pump combination attached to the truck transmission.
3. Wrecker truck with the high pressure oil from pump flows through controlling valves and safe valves into the function components.
4. Each function can be controlled from the Control Stations located in rear compartments of the body and the Control Handles are clearly marked as to their functions and directions.
Product parameter
Specification of HOWO Wrecker Truck
Item Specification Item Specification
General
Truck Name Wrecker Truck Overall Dimension (mm) 11250×2500×3250
Truck Brand Chusheng Gross / Curb Weight (kg) 31000/20900
Truck Model CSC5317TQZZT5 Rated Loading Weight(kg)
Cab Flat cabin double beds Cab Capacity 3 persons
Approach / Departure Angle (°) 14/13 Front / Rear Overhang (mm) 1500/2000
Front / Rear Axle Load (kg) 6500/7000/8750/8750 Wheelbase (mm) 1800+4600+1350
Number of Axles 4 Max. Speed (km/h) 110
Quantity of Tyre 10 Tyre Model 12R22.5
Front Wheel Tread (mm) 2022/2022,2041/2041 Rear Wheel Tread (mm) 1830/1830
Leaf Spring 11/11/12 Traction System Wrecker Truck
Chassis
Chassis Brand Howo Chassis Model ZZ1317
Type of Fuel Diesel Emission Standard EURO 2/3/4/5
Engine (Motor)
Model Displacement (ml) Max. Power (KW/hp) Brand
D10.38-50 9726 206/280
Truck Body
Crane 16T18D

Our Service

1.One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.

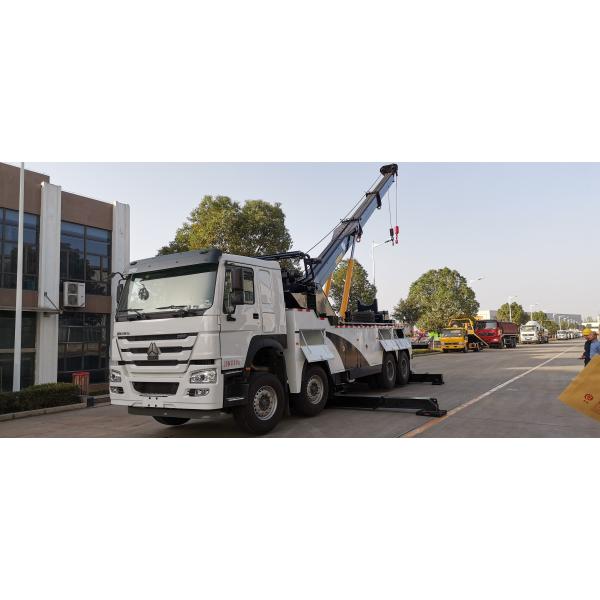

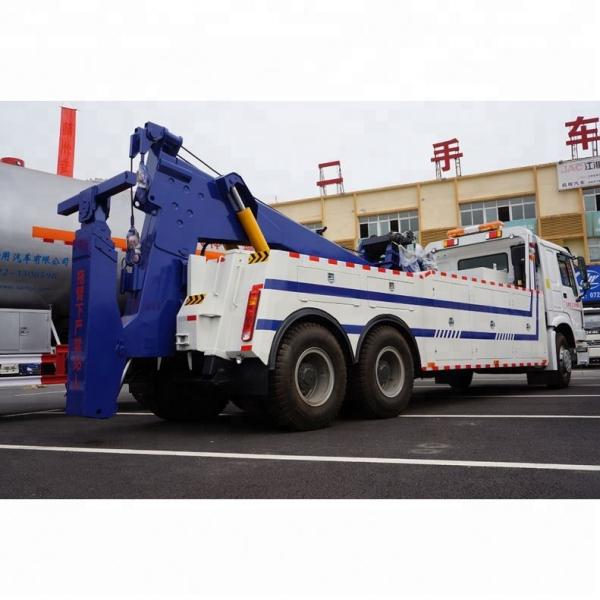

Product picture
Howo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree TurningHowo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree TurningHowo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree TurningHowo 8X4 Crane Crane Road Wrecker Truck Euro 3 360 Degree Turning
