Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
Specifications
Brand Name :
CSC
Model Number :
202002113
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Type :
Semi-Trailer
Product name :
3-axle Semi-trailer
Size :
11800*2500*2200
Max Payload :
30T ~ 100T
Capacity :
5~50m3
Brake System :
Dual Line Braking System
Suspension :
Mechanical Suspension
Material :
Steel
Description

China Three-axle 40ft 30tons Capacity Cargo Trailer Side Wall Semi Trailer Mechanical Suspension

Product Description

For the flat bed trailer, the most popular one is tri axles 40ft flatbed container semi trailer, except that also we can design to manufacture 2 axles 20ft container trailer, 3 axles 45ft container semi trailer, 53ft container truck trailer etc, specified as loading weight can be 30tons flatbed trailer, 40tons flatbed container trailer, and 50t container semi trailer, and 60 tons container cargo trailer.

Product Parameter

Container Transport Flatbed Truck Semi Trailer with Container Locks
Dimension(Optional) Axle No. Rated Load (kg) Tire No. Tire Size
20ft 2 40000 8 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
40ft 45ft 48ft 53ft 3 60000 12
40ft 45ft 48ft 53ft 4 75000 16
Wheel Base (mm) 1310
leaf-spring Pcs 10
Axle 13/16/18 T
Suspension Heavy Duty Mechanic Suspension with Leaf Springs
Main Beam Material Q345B manganese plates, automatic submerged arc welded
Brake System Dual line braking system with automatic braking system/chambers
Brake Air Chamber Double Model
Kingpin 2' or 3.5' Interchangeable
Landing gear 28T loading capacity with 80T static lifting capacity.
Platform 4-6 mm diamond steel plate
Brake System Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber Four double and two single chamber
Electrical System 24V, 7core socket, lights according to European standards.
Upper plate 14mm
Mainbeam Size Lower plate 16mm
Mid Web 8 mm
Height 500-520mm
Tool Box 1 box of standard tools
Spare tire carrier 2 sets
Color and Logo Depends on the buyer’s requirement.
Pin Height According to the height of the tractor saddle.
Painting Three coats painting; Any color will be available
Other Specifications The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince.
Application For 2x20ft or 1x40ft containers transport

FAQ

1. How long will I receive my product?

Answer: Usually 25-30 days after the deposit is received.

2. What's the payment terms?

Answer: TT, LC, Cash

3. What's the trade terms?

Answer: FOB, CIF, CFR etc.

4. How can I know the quality?

Answer: we can offer quality report; you can send someone to check or your autherize some agent to test.

5. How can I place order?

Answer: confirm the products details , sign the contract and then pay the deposit.

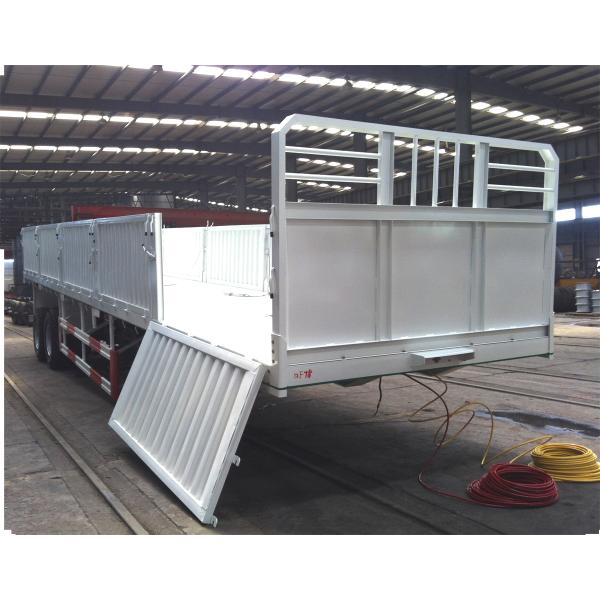

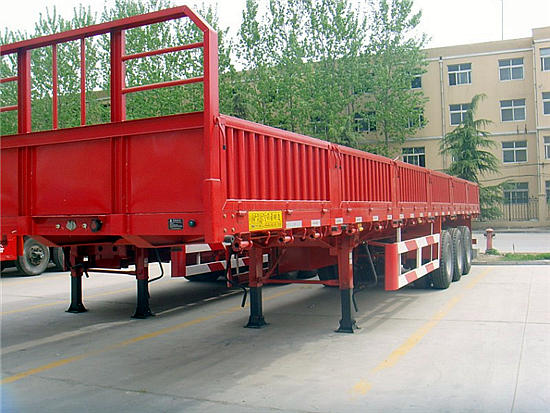

Product Picture

Three - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical SuspensionThree - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical SuspensionThree - Axle 40ft 30 Ton Cargo Semi Trailer Side Wall Mechanical Suspension
