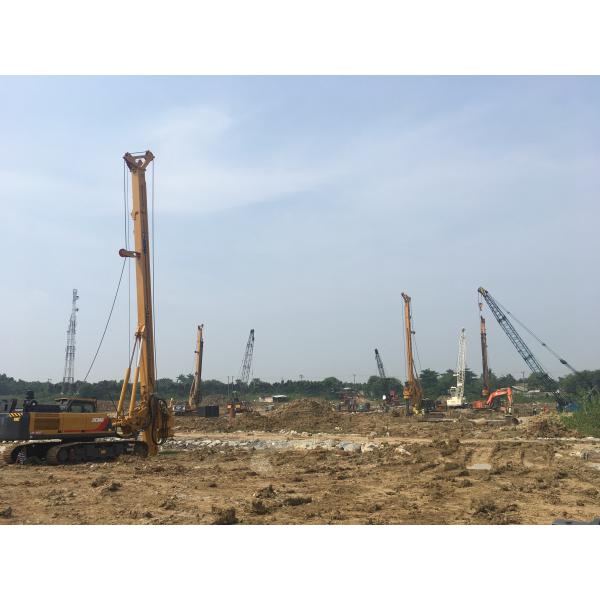

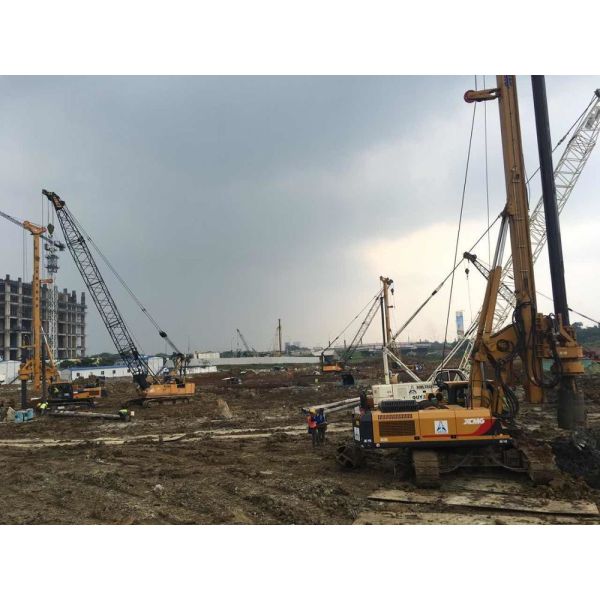

XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
Specifications
Brand Name :
XCMG
Model Number :
XR150D
Certification :
ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 set/month
Delivery Time :
10-30days
Packaging Details :
NUDE
Weight :
58000kg
drilling depth :
60m
Model :
CUMMINS QSB6.7
Voltage :
220V/380V
Dimension(L*W*H) :
8350*4200*20480mm
drilling diameter :
1800mm
Description

XCMG Official Manufacturer XR180D Mobile Rotary Drilling Rig Rock Drilling Machine

Product Quick Details

Condition:New

Type:Rotary Drilling Rig

Power Type:Diesel

Place of Origin:Jiangsu, China

Brand Name:XCMG

Usage:Ore

Voltage:220V/380V

Dimension(L*W*H):8350*4200*20480mm

Weight:58000kg

Certification:CE/ISO9001

Warranty:1 Year

After-sales Service Provided:Field installation, commissioning and training

Engine model:CUMMINS QSB6.7

Max. Drilling Depth:46m

Moving Type:Crawler

Rotary table slewing angle:360°

Product Features:

1,With the special hydraulic telescopic crawler chassis (TDP series) ofrotary drill rig and large diameter slewing bearing, it meets strong stabilityand easy transportation.

2,With the electronically controlled and turbocharged engine of Cummins,which is powerful and emissions meet Euro Ⅲ standards.

3,The hydraulic system adopts the limit of power control and positive flowcontrol, that makes the hydraulic system more energy and efficient.

4,With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope; a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.

5,The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.

6,Configure centralized lubrication system, which makes maintenancemore convenient.

7,Selection of a variety of specifications for Kelly-bar, meeting the efficient construction ofdifferent strata.

8,Multi-function such as crowd winch,spin-offof rotary drive,casing driver and hydraulic casingoscillator is optional selected.

9,The removable type key. Of rotary drive makes maintenance andexchange more convenient.

It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.

The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.

Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.

It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.

Product Specification:

Description Unit Parameter value
Max. drilling diameter mm 1800
Max. drilling depth m standard configuration
(5-section friction Kelly bar)46
optional configuration
(4-section-locking Kelly bar)
Allowable luffing scope (from center of drill rod to slewing center) mm 3560~3900
Drilling rig dimension in working condition (L*W*H) mm 8350*4200*20480
Drilling rig dimension in transport condition (L*W*H) mm 14255*3000*3455
Weight of overall unit (standard configuration, excluding drilling tool) t 58
Engine Model CUMMINS QSB6.7
Rated power/speed kW 194/(2200r/min)
Max. working pressure of hydraulic system MPa 35
Rotary drive Max. torque kN.m 180
Rotational speed r/min 7~27
Crowd cylinder Max. Pushing force kN 160
Max. Pulling force kN 180
Max. stroke mm 5000
Main winch Max. pulling force kN 180
Max. single-rope speed m/min 65
Diameter of the steel wire rope mm 180
Auxiliary winch Max. pulling force kN 50
Max. single-rope speed m/min 70
Diameter of the steel wire rope mm 16
Drilling mast Left/right inclination of mast ° 3/3
Front/back inclination of mast ° 5/15
Rotary table slewing angle ° 360
Traveling Max. traveling speed of the overall unit km/h 1.5
Max. climbable gradient of the overall unit % 35
Crawler Width of crawler plate mm 700
External width of crawler (min.-max.) mm 2960~4200
Center distance between two longitudinal wheels of crawler mm 4270
Average ground pressure kPa 94

Pictures

XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
