Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Specifications
Brand Name :
HOWO
Model Number :
CSC2019280
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 Unit/Units per Month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Condition :
New
Drive Wheel :
6x4
Transmission Type :
Manual
Tank Volume :
15001 - 30000L
Gross Vehicle Weight :
11030
Storage :
Oil
Horsepower :
351 - 450hp
Fuel Type :
Diesel
Description

Heavy Duty HOWO 20000L 20cbm 6x4 Tanker Truck For Transporting Oil

Product Description

Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.

1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.
2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
3.Tank shape: Optional for round square, oval, and round;
4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
5. Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

Product Parameter

Cabin Driving type 6x4 LHD Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC

HOWO 76 Standard cab, with two bunks, one bed, air-condition, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 9500x2496x3600
Wheel base (mm) 4300+1400
Wheel track (front/rear) (mm) 2022/1830
Approach/Departure angle(°) 16/15
Weight in KGS Tare Weight 11030
Rated loading Capacity 13840
Front axles loading capacity 1x7000
Rear axles loading capacity 2x16000
Max. driving speed(km/h) 90
Engine Brand Sinotruk
Model WD615.47
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371HP
Emission standard Euro Ⅱ
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L) 400
Tire 295/80R22.5 tubeless tire,
Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake
Tanker Body
Volume 20CBM
Thickness Tanker body: 5mm, End plate: 6mm
Independent compartment 2 independent compartments
Aluminum alloy API manhole cover, DN500mm, 2 sets with 2 breather valve
2 sets of DN100mm discharging valves
4” rubber hose, 2 pcs, 6m long

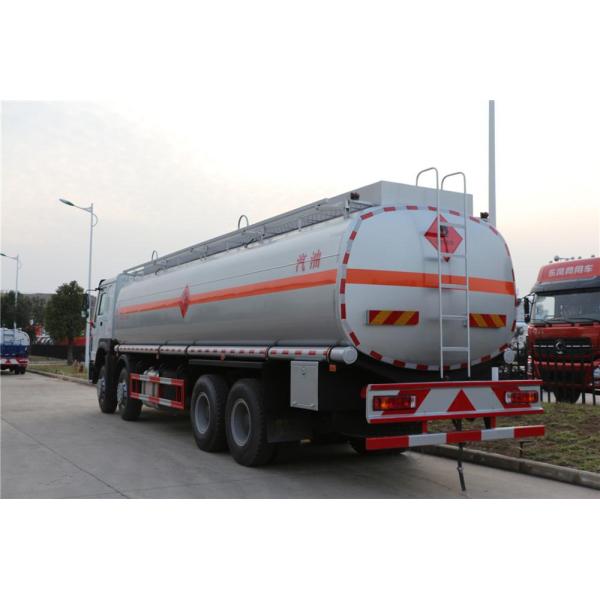

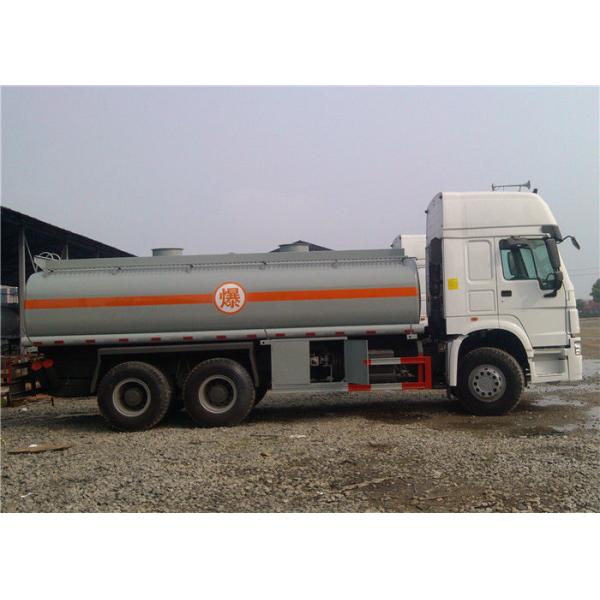

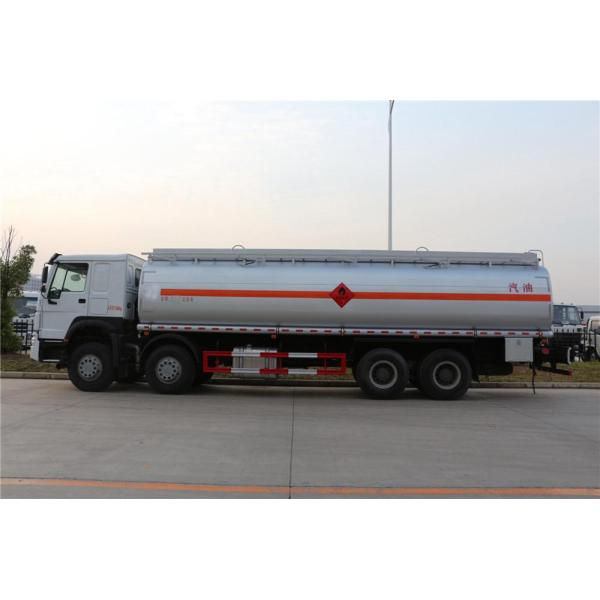

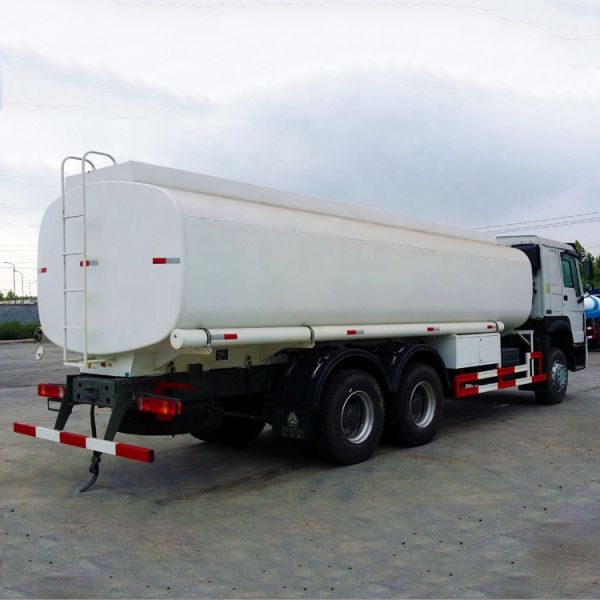

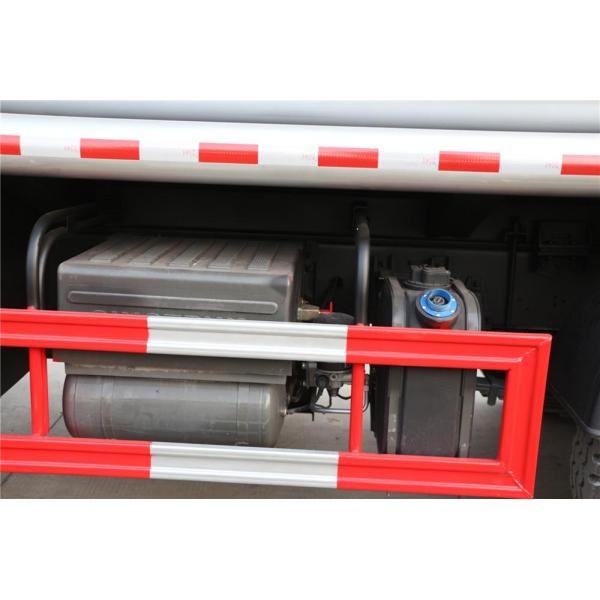

Product Picture

Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCCHeavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCCHeavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCCHeavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
