8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
Specifications
Brand Name :
HOWO
Model Number :
ZZ1317N4667W
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 Unit/Units per Month
Delivery Time :
35-40 work days
Packaging Details :
Nude
Transmission Type :
Manual
Storage :
Fuel
Fuel Type :
Diesel
Gross Vehicle Weight :
50000
Tanker Capacity :
28000L
Engine Capacity :
9726CC
Horsepower :
371HP
Drive Wheel :
8X4
Description

SINOTRUK HOWO 8X4 371HP 28CBM FUEL TANKER TRUCK MODEL ZZ1317N4667W

Product Description

HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.

Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.

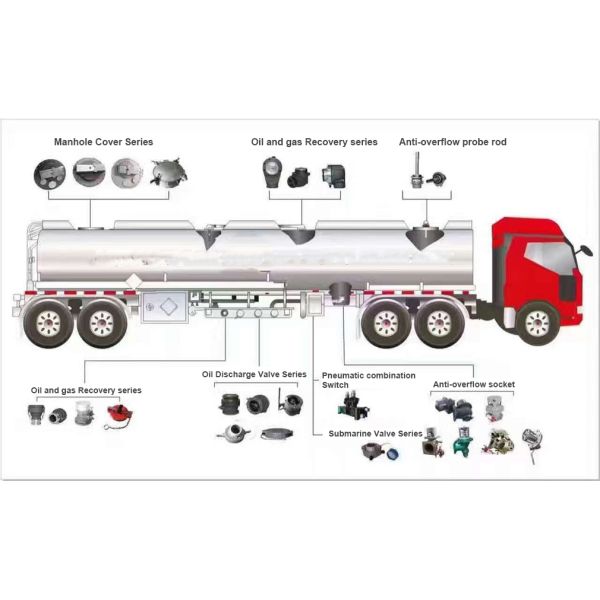

1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.
2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
3.Tank shape: Optional for round square, oval, and round;
4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
5. Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

Product Parameter

Model ZZ1317N4667W
Cabin HW79 High Roof Cabin, with two seats and two beds, with Air Conditioner and electric window. Option: HW76 with one bed

Engine

 Model WD615.47
Horse Power (Hp/rpm) 371/2200, Euro II Emission Standard
Max.Toruqe(Nm/rpm) 1460/1100-1600
Displacement L

9.726
Type 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
Transmission HW19710, 10 speeds forward and 2 speeds reverse.
Front Axle HF9, Steering with double T-cross section beam, Loading Capacity: 2X9,000kgs
Driving Axle HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42
Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System ZF8118, Hydraulic steering with power assistance
Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire 12.00R20
Fuel Tank Capacity (L) 400L Diesel Tank
Kurb Weight (kg) 14,500
Loading Capacity (kg) 35,500
Gross Vehicle Weight (kg) 50,000
Overall Dimension(L*W*H)(mm) 11984×2500×3785
Tank Capacity(m3) 28
Tank Material Carbon Steel
Nos of Compartment Customized design from 1 to 6
Wheelbase(mm) 1800+4600+1350
Max. Speed (km/h) 75

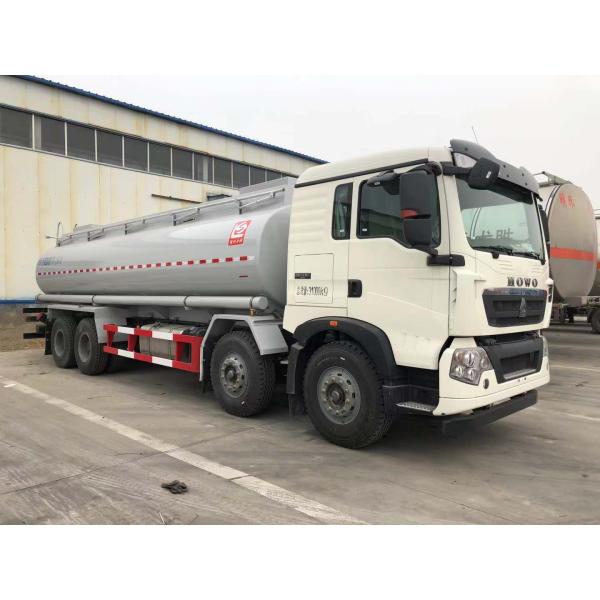

Product Picture

8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
