90 Ton Road Construction Equipment , Shantui Pipelayer Full Hydraulic Sideboom Pipeline Transport Hoisting Machinery
90 Ton Road Construction Equipment , Shantui Pipelayer Full Hydraulic Sideboom Pipeline Transport Hoisting Machinery
90 Ton Road Construction Equipment , Shantui Pipelayer Full Hydraulic Sideboom Pipeline Transport Hoisting Machinery
90 Ton Road Construction Equipment , Shantui Pipelayer Full Hydraulic Sideboom Pipeline Transport Hoisting Machinery
90 Ton Road Construction Equipment , Shantui Pipelayer Full Hydraulic Sideboom Pipeline Transport Hoisting Machinery
90 Ton Road Construction Equipment , Shantui Pipelayer Full Hydraulic Sideboom Pipeline Transport Hoisting Machinery
Specifications
Brand Name :
SHANTUI
Model Number :
SP90Y
Certification :
CE,ISO
Place of Origin :
China (Mainland)
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T
Delivery Time :
100sets/month
Packaging Details :
nude with wax painted
dimensions :
4750*3700*3360mm
Fuel tank capacity :
550L
Boom length :
8.6m
rated power :
257kw
Description

90 TON Shantui Brand PIPELAYER/Full Hydraulic Sideboom/Pipeline Transport Hoisting Machinery

Quick Details

Place of Origin:Shandong, China

After-sales Service Provided:Engineers available to service machinery overseas

Engine:NTA855

machine model number:SP90Y

Lifting capacity:90ton

condition:new

dimensions:4750*3700*3360mm

Fuel tank capacity:550L

Pump type:Duplex

Boom length:8.6m

rated power:257kw

Product Description

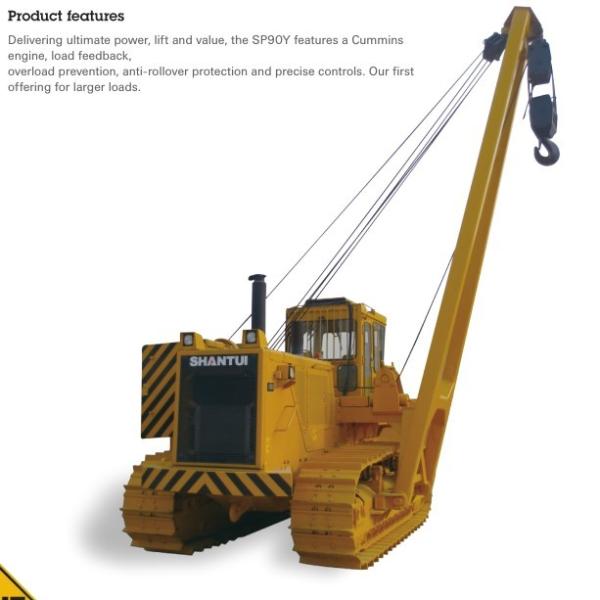

Delivering ultimate power, lift and value, the SP90Y features a engine, load feedback, overload prevention, anti-rollover protection and precise controls. Our first offering for larger loads.

Engine model: NTA855-C360S10
Operating weight of whole machine: 55000kg
Maximum lifting capacity: 90t

Shantui pipe layer is a product released by Shantui on the basis of integrating all advanced technologies of pipe layer products both home and abroad and sufficiently researching the market.

The whole machine feature high strength, high stability,and beautiful appearance.
The hook rod winch and working hydraulic system adopt joint venture products or imported products.
The pilot control mode is adopted for the operations of hook rod winch and counterweight.
The four-link counterweight structure is adopted.
Optional air conditioned cab is available.
The corresponding measures are taken in consideration of diversified environment adaptabilities.
The working device and the counterweight feature good disassembling and assembling performance.

Application

Piplayer is an important construction machine for laying large-caliber petrolum or natural gas pipelines, connecting their ends and doing ditch work.

PRODUCT SPECIFICATION

Overall dimensions (Length × Width × Height) 5630×5726×9215mm Operating weight of whole machine 55000kg
Engine model Cum mins NTA855-C360S10 Maximum lifting capacity 90t
Maximum lifting height 7000mm Boom luffing range 1.2-7.2m
Boom length 8.6m
