Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
Specifications
Brand Name :
HOWO
Model Number :
ZZ4257N3247W1
Certification :
ISO CCC GCC CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
300 Set/Sets per month
Delivery Time :
25-30 work days
Packaging Details :
Nude
Condition :
New
Horsepower :
351 - 450hp
Drive Wheel :
6x4
Emission Standard :
Euro 2
Engine Capacity :
> 8L
Fuel Type :
Diesel
Size :
6800 x 2496 x 2958
Engine :
WD615
Description

Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Optional Color

Product parameter

Vehicle series
HOWO 6x4 420 hp tractor truck
cab
HW76
Engine
Model
Euro 4:WD615/D12
Power(Ps/rpm)
(213-273)/2200 309/2000
Maximum torque(Nm/rpm)
(1160-1500)/1100-1600,1820/1100-1500
Displacement(L)
9.726/11.596
Transmission
SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction. WD615.87standardHW15710,WD615.69,WD615.47,D12.38 and D12.42standardHW19710
Clutch
Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.47,D12.38 and D12.42Engine standard430A,WD615.69standard430B , WD615.87standard430C
Front axle
HF7,rated load of 7t, drum-type;heavy load truck with HF9 drum-type, rated load of 9t
Rear axle
ST16 double reduction, speed ratio:3.93,4.42,4.8;heavy load truck with HC16 double reduction, speed ratio:4.8, 5.73
Steering gear
ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa
Suspension
Steer Axle
front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer
Drive Axle
front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
Braking system
Service brake
dual-circuit air pressure brake
Parking brake
spring storage energy without air
Auxiliary brake
Engine exhaust braking;standardABS,Engine EVB is Optional and optional auto clearance adjusting arm
Electric system
Voltage
24v
Generator
1540w
Batteries
12v/165Ah,2pieces
Starter Power
24v.7.5kw
Wheels & Tyres
Tyres
315/80R22.5
Optional
12.00R20; 12R22.5
Fuel Tank
Capacity
400 Liter 260L auxiliary fuel tank can be added
weight(kg)
Curb weight
9180/9230
Gross Vehicle weight
25000
Design loading capacity at fifth wheel
15640-15690
Vehicle Dimensions (mm)
L*H*W
6800×2496×2958
Wheelbase
3200+1350
Front overhang/Rear overhang
1500/725
Wheel track of front axle
2022
Wheel track of rear axle
1850
Performance
Maximum speed(km/h)
92/102
Maximum gradeability(%)
20
Minimum turning diameter(m)
15

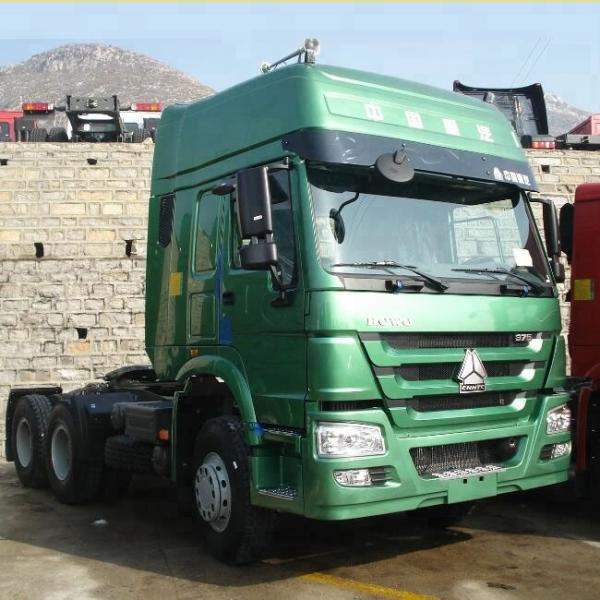

Product picture

Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8LSinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8LSinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Engine Capacity 8L
