Specifications
Brand Name :
SINOTRUK
Model Number :
QINGZHUAN
Certification :
CCC
Place of Origin :
Shandong,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500sets per month
Delivery Time :
30-45days
Packaging Details :
packed in nude
Type :
Semi-Trail
Use :
Truck-Trail
Pay Load :
40T
Suspension :
3 Axle Mechanical Suspension With 8 Pcs Leaf Spring
Steel Sheet :
Floor Thickness 6mm, Side Wall Thickness 4mm
Overall Dimension :
1050*2500*3600mm
Description

Product Description

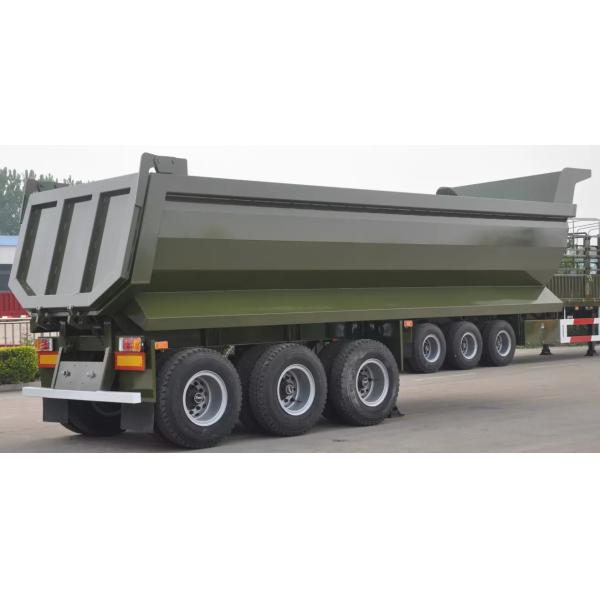

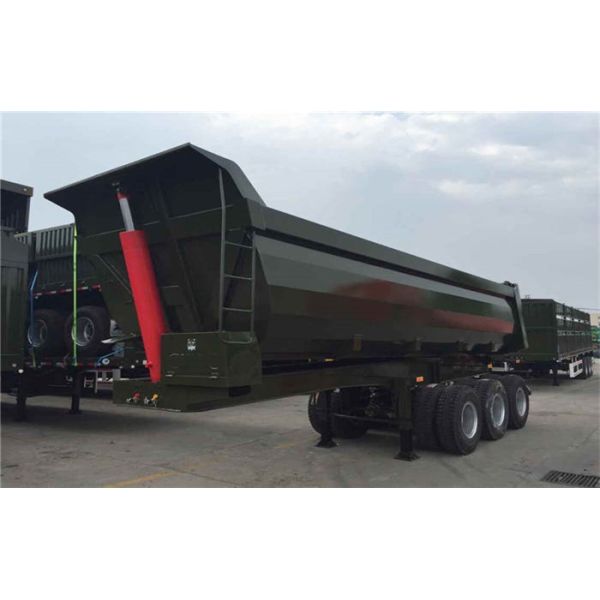

3 axles U shape 40 tons load capacity good quality rear dump tipper semi trail for sale

All specification and design can be customized !

Specification of U type three axles dump truck body semi trailer for sale
Overall Size 1050mmx2500mmx3600mm
Capacity 40 tons or Optional upon choice
Chassis High duty and extra durability designed I beam,opting for high tensile steel Q345,welded by automatic surbmerged-Arc processes.Top flange 14mm,width flange 140mm;Middle flange 10mm;bottom flange 16mm;width flange 140mm
Axle 13T capacity, FUWA Brand
Suspension Mechanical suspension
Leaf spring Leaf spring
Floor Checkered plate
Tire 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
Wheel rim 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
Kingpin 2’’/3.5’’ bolt-in king pin
Landing gear JOST brand two-speed, manual operating, heavy duty landing gear
Cylinder HYVA
Braking system WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
Painting Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
Accessories One standard tool box

Advantages:

1. Main-frame:High duty and extra durability designed I beam,opting for high tensile steel Q345,welded by automatic surbmerged-Arc processes.

2.Tipping mechanism: Rear dumping, side dumping mechanisms available for customer order.

3.Painting:Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint

4.Suspension:Bogie suspension; Air suspension; Mechanical suspension optional.

Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

U type three axles dump truck body semi trailer for sale

Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

U type three axles dump truck body semi trailer for sale

Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

U type three axles dump truck body semi trailer for sale

Quality Guarantee

- All spare parts are from famous brand or your Customized.
- All spare parts are testing before assembly.
- High quality automatic and manual welding.
- Quality control supervisor do inspection before delivery.
- Acceptance for third party inspection.

Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

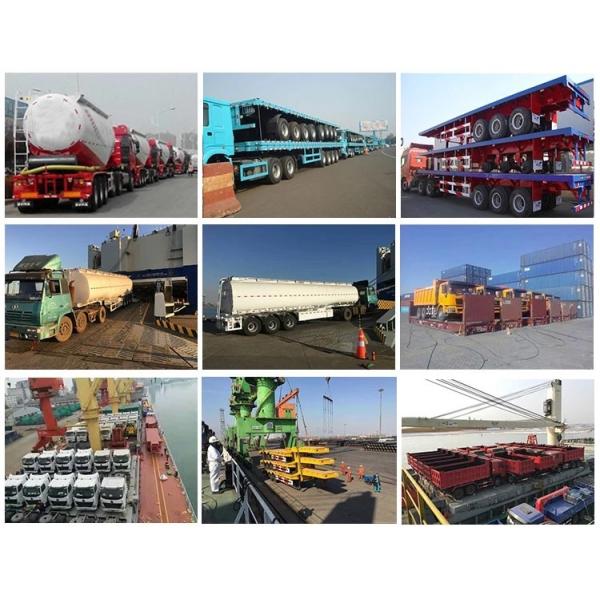

Packing & Delivery

Mechanical Suspension Heavy Duty Semi Trailers , U Shape 40 T Load Capacity Rear Dump Tipper Semi Trailer

After-sales Service

- Providing high quality and reliability products, free of charge during the warranty period for spare parts.
- 24 hours corresponding your feedback.
- Technicians fully supports on technology and maintenance.
- With a variety of trailer accessories and delivery within 3 days.
- Perfect and economic transportation arrangement.

FAQ

Q1. What is your terms of packing?
A: Generally, our goods is nude packing. We'll show you the photos of the products and packages before delivery.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% the balance before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF..
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A: 1. With high quality products and competitive price;
2. We respect each customer and sincerely do business, Win-Win Cooperation.
