8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
Specifications
Brand Name :
HSA
Model Number :
HZZ5318JQJ
Certification :
ISO/CC
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
5000/MONTH
Delivery Time :
30-45 Days
Packaging Details :
NUDE
Max. horizontal range Under Bridge: :
19m-22m
Overall dimensions: :
12565(L)x2500(Wx4000 (H)mm
Max. lowering depth: :
8m
Fuel Type: :
Diesel
Engine Power: :
239 KW
Max. Over-bridging of sidewalk: :
3000mm
Description

19-22m HZZ5318JQJ 8x4 Professional Platform Type Bridge Inspection Truck

Product Details:

Max. horizontal range 15M,17m 19m, 22M
Max. lowering depth 8000mm 8000mm
Width of platform 1000mm 11000mm
Space required on bridge 2600mm 2600mm
Max. load on platform 600KG 800 kg
Max. load on telescopic platform 300KG 400 kg
Max. Over-bridging of sidewalk 2500mm 3000 mm
Max. crossing of sound barrier 3500mm 4200mm
The first scope of rotation 0-90° 0-90°
The second scope of rotation 0-1800 0-1800
Max. self-propelled speed 15m/min 15m/min
G.V.W 25000KG 31000KG
control system Wireless remote control, Panel control, emergency manual control Wireless remote control, Panel control, emergency manual control

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Cost Effective Solution:

Optimized and cost effective Chassis ( China FAW, SINOTRUK, Swedish Volvo, SCANIA optional) we can also design according to customer's local brand chassis brand

.

Reliable Performance:

We design and manufacture all series bridge inspection truck from 12m to 22m

Our platform type bridge inspection truck are widely used in all kinds of under-bridge project: Such as inspections, repairs, stripping operations, painting and sandblasting, general maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

Good capabilities of high-spanning and wide-spanning, suitable for different operating conditions. Self-propelled ability during operation, max. moving speed 15m/min. Deploying time is only 5 minutes.

More Safety Design:

Key Parts with Europe brand (Such as control system, Hydralic system, Electric system)

Standby gasline generator make sure the woker safety during hydraulic fault.

Four inboard hydraulic stabilizers to ensure the truck stable during work

adopt mechanical, hydraulic and electrical triple limit, with the function of interlocking

180° work platform rotation

400kg/800kg work platform capacity

Two drive systems:

Main Hydraulic system: Truck engine P.T.O.

Back-up system: 10kw gasoline generator

Four inboard hydraulic stabilizers

Wireless remote, panels and emergency three operating mode.

Multi-party video communication system.

Self-propelled hydro-static drive

Self-erecting in single lane in 5 minutes

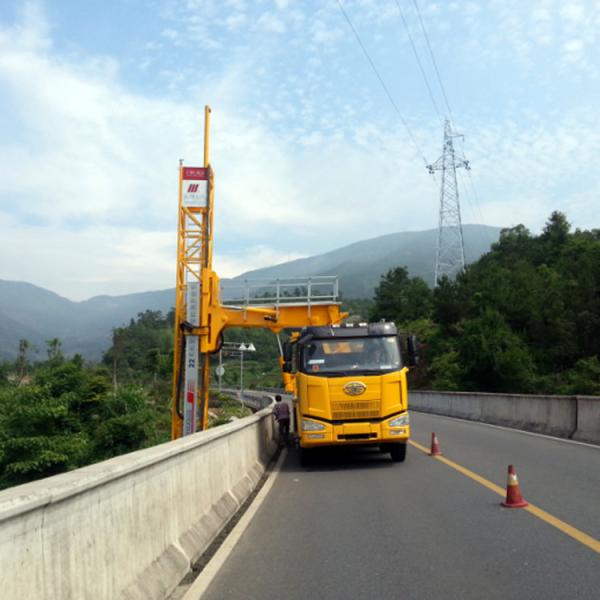

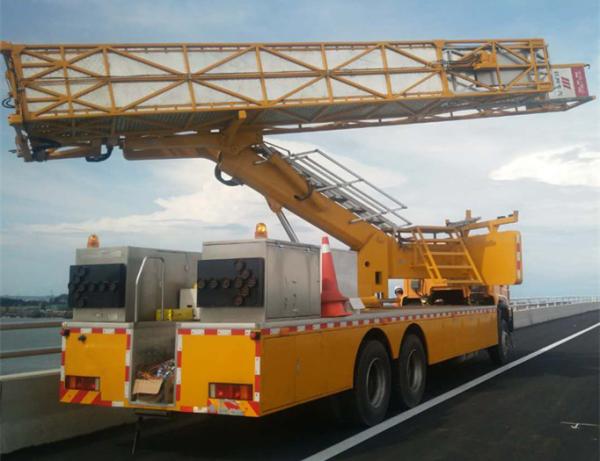

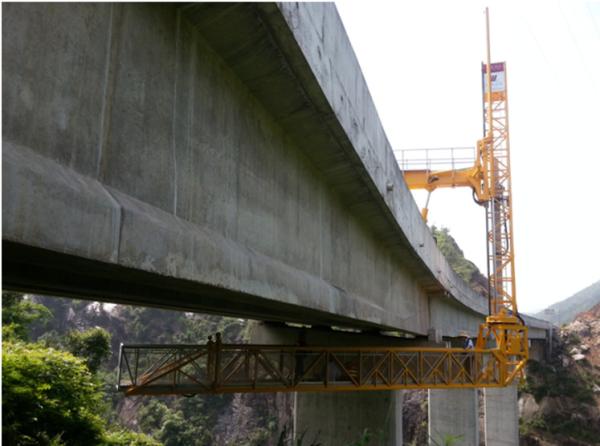

Reference pictures:

8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ8x4 Professional Platform Type Bridge Inspection Truck With FAW Chassis 19-22m HZZ5318JQJ
