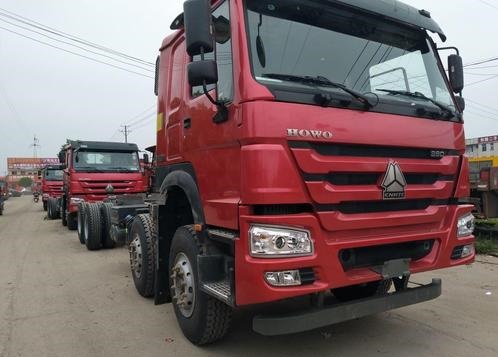

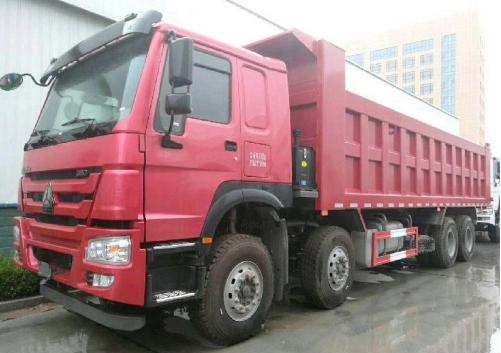

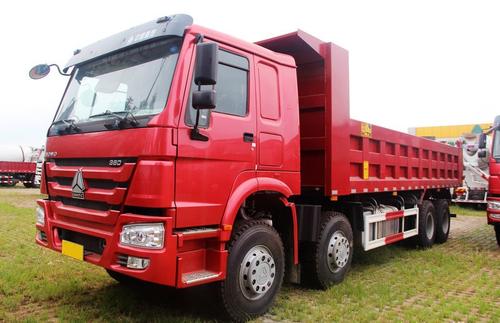

8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ3317N3067W
Certification :
ISO9001
Place of Origin :
Shandong，China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500sets per month
Delivery Time :
30-45days
Packaging Details :
packed in nude
Drive Wheel :
8X4
Transmission :
HW19710 Transmission
Engine :
WD615.47,371HP
Color :
Optional
Fuel Type :
Diesel
Keywords :
Dump Truck
Description

HOWO 8x4 12 wheeler drive 371/420 hp Heavy Duty Mining Dump/Tipper Truck For Transporting sand stone ore ZZ3317N3067W

Product Specification

SINOTRUK ZZ3317N3067W
Traction type LHD
Drive System 8×4
Cabin HW76 Cabin, One sleeper, Air Conditioner
Engine Brand SINOTRUK
Model WD615.47 EuroII
Rated power 371hp
Engine displacement 9.726 liters
Gearbox HW19710
Clutch 430 Diaphragm type
Steering
Axle Front HF9
Rear HC16, double reduction , ratio:5.73
Max. running speed (km/h) 75
Tire 12.00-20
Fuel tank 300L
Kerb weight (kg) 14930
Total mass (kg) 31000
Wheel base (mm) 1800+3000+1350
Overhang (mm) (front/rear) 1500/1670
Track (mm) (front/rear) 2022/1830
Approach / departure angle(°) 19/26
Dimensions(L*W*H)(mm) Overall 9445×2496×3453
Dump body 6500x2300x1500
Thickness (mm) Floor 8mm,front 6mm,side 4mm
Hydraulic lifting system Front lifting

Description:

HOWO brand. now is the hot sales brand of overseas market, the popular model is with 18m³, 20m³, 30m³ dumper bucket capacity using in road project solution, mining site , and other urban construction etc.SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Applications:

It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Competitive Advantage:

1. Warranty: one year

2. Production time: within 35 working days

3. Shipping: we have logistic team, can cargo your truck fast and safety.

4. Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

(All pictures are for reference only.)


8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
8x4 12 Wheeler Drive Heavy Duty Mining Dump Tipper Truck For Transporting Sand / Stone Ore ZZ3317N3067W
Export Market:
Africa:
Egypt, Sudan, Libya, Tunisia, Algeria, Morocco, Azores, Madeira, Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, Burundi and Seychelles, West Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d’Ivoire, Ghana, Togo, Benin, Niger, Nigeria and Canary Islands, Chad, Central Africa, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of the Congo, Sao Tome and Principe, Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, South Africa, Swaziland, Lesotho, Madagascar, Como Luo, Mauritius, Reunion, St. Helena, etc.

South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
