Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ5707V4040CJ
Certification :
ISO9001
Place of Origin :
Shandong，China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500sets per month
Delivery Time :
30-45days
Packaging Details :
packed in nude
Keywords :
Mining Dump Truck
Drive Wheel :
6X4
Engine :
D12.42T2，420HP
Capacity Load :
61-70t
Emission Standard :
Euro 2
Fuel Type :
Diesel
Description

Sinotruk HOWO 70T Load Capacity 6X4 Drive 420HP Mining Dump Truck

Product Specification

Representative vehicle modelZZ5707V4040CJ




Cab

ModelHW7D



Type

Sketch covering, grand view and single side reinforced mine truck
dedicated cabCab. Suspension is helical spring with shock absorber , air conditioner and heater.
High Steel Bumper


Engine

ModelD12.42T2,420HP,EURO II
Displacement11.596L
TypeSix cylinders inline,two valve,supercharge postposition,supercharge intercooler
Clutchstandard 430A pull-type diaphragm spring Clutch,Hydraulic control air assisted.


Transmission

HW21712,Transmission with main and auxiliary transmission structure,main transmission with double counter shaft,auxiliary transmission with
planetary reduction .with HW70 PTO.


Front Axle

HF12 one-piece-casting I beam rigid boxing-style mine dedicated front axle


Drive Axle

AC26 double reduction (central reduction+wheel reduction),one-piece-casting axle housing,with wheel and interaxle differential lock,speed ratio:10.47,Optional8.51
Suspensionfront and rear leaf spring suspension,rear Suspension is integral type equalizing suspension
Steering System ZF,steeringbox,ZF steering pump and steering reservoir


Breaking System

Service brake:dual- circuit air pressure brake,parking brake:spring storage energy without air,auxiliary brake:Engine exhaust braking


Electrical System

Single wire system,negative earth,voltage:24V；generator:1540w；starter:7.5KW；battery:12V/
180Ah；2 pieces,Engine air inletel ectric heating.

Tyre

14.00-25,with one spare tire

Tank volume LD-shape 500L
Kerb weight Kg26000
Gross Mass Kg 70000
Rated load Kg 44000
External dimensions(length x width x height)mm8800x3600x4100
Wheelbase mm4000+1500
Front/rear overhang mm 1500/1000
Wheel track(front/rear) mm2741/2520
Minimum ground clearance (nuder front axle) mm340
Approach/departure angle .32/40
Maximum speed km/h50
Max climbing ability %42
Minimum turning diameter m22
Dump box size (length x width x height) mm5800 x 3150 x 1800
Thickness Botto 14 mm；Side 12 mm
Dump box volume m333


Product Description

HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.

Competitive Advantage

1) all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
2) using the high strength steel, make it has a long service life
3) The front lifting type domestic advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4) excellant apperance of cabin, safety, reliable
5) low fuel consumption
6) strong enough engine
7) with all kinds of truck model, which can fulfil your requirements
8) the key parts adopt the world's top technology products
9) based on strong technical support and top level technology make the trucks with high quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency

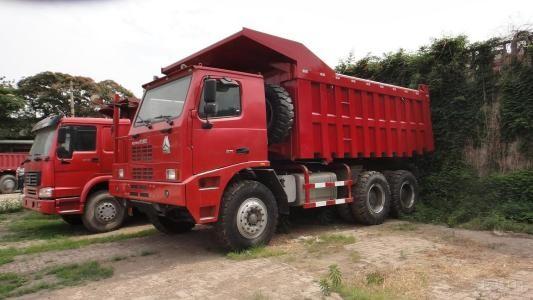

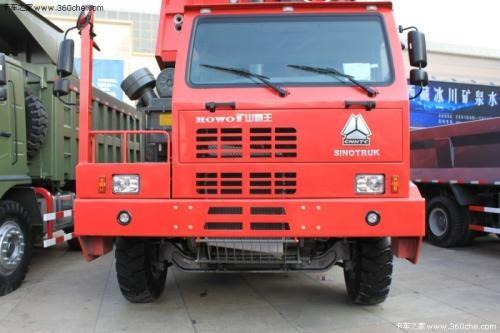

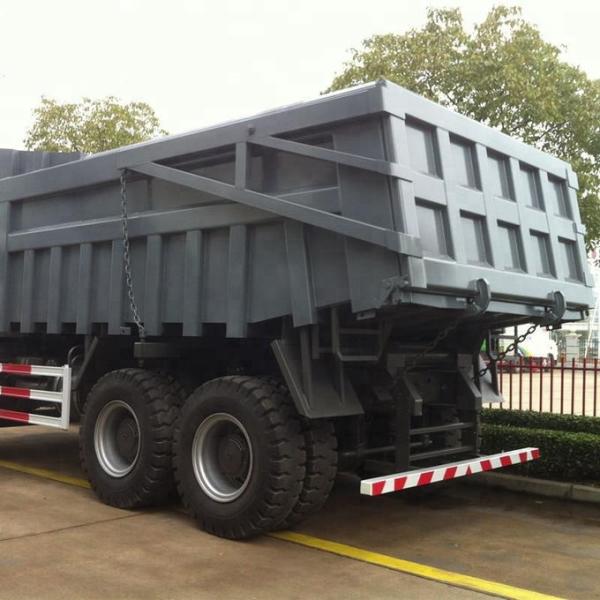

Product picture

Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP

Sinotruk HOWO Mining Dump Truck 70T Load Capacity 6X4 Drive 420HP
