XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
XCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
Specifications
Brand Name :
XCMG
Model Number :
XR180D
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Condition :
New
Power Type :
Diesel, Electric
Voltage :
220V/380V
Weight :
58000kg
Max. Drilling Diameter :
1800mm
Usage :
Coal
Dimension(L*W*H) :
14255*3000*3455mm
Max. Drilling Depth :
46m
Description

XCMG Borehole Drilling Machine XR180D Rotary Drilling Hydraulic 58000kg​

Product description

1,With the special hydraulic telescopic crawler chassis (TDP series) ofrotary drill rig and large diameter slewing bearing, it meets strong stabilityand easy transportation.

2,With the electronically controlled and turbocharged engine ,which is powerful and emissions meet Euro Ⅲ standards.

3,The hydraulic system adopts the limit of power control and positive flowcontrol, that makes the hydraulic system more energy and efficient.

4,With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope; a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.

5,The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.

6,Configure centralized lubrication system, which makes maintenancemore convenient.

7,Selection of a variety of specifications for Kelly-bar, meeting the efficient construction ofdifferent strata.

8,Multi-function such as crowd winch,spin-offof rotary drive,casing driver and hydraulic casingoscillator is optional selected.

9,The removable type key. Of rotary drive makes maintenance andexchange more convenient.

Product parameter

Main parameters as below, customerized equipment according to your work condition is acceptable.
Description
Unit
Parameter value
Max. drilling diameter
mm
1800
Max. drilling depth
m
standard configuration (5-section friction Kelly bar)46,
optional configuration (4-section-locking Kelly bar)
Allowable luffing scope (from center of drill rod to slewing center)
mm
3560~3900
Drilling rig dimension in working condition (L × W × H)
mm
8350×4200×20480
Drilling rig dimension in transport condition (L × W × H)
mm
14255×3000×3455
Weight of overall unit (standard configuration, excluding drilling tool)
t
58
Engine
Model
QSB6.7
Rated power/speed
kW
194/(2200r/min)
Max. working pressure of hydraulic system
MPa
35
Rotary drive
Max. torque
kN •m
180
Rotational speed
r/min
7~27
Crowd cylinder
Max. Pushing force
kN
160
Max. Pulling force
kN
180
Max. stroke
mm
5000
Main winch
Max. pulling force
kN
180
Max. single-rope speed
m/min
65
Diameter of the steel wire rope
mm
180
Auxiliary winch
Max. pulling force
kN
50
Max. single-rope speed
m/min
70
Diameter of the steel wire rope
mm
16
Drilling mast
Left/right inclination of mast
°
43527
Front/back inclination of mast
°
43600
Rotary table slewing angle
°
360
Traveling
Max. traveling speed of the overall unit
km/h
1.5
Max. climbable gradient of the overall unit
%
35
Crawler
Width of crawler plate
mm
700
External width of crawler (min.-max.)
mm
2960~4200
Center distance between two longitudinal wheels of crawler
mm
4270
Average ground pressure
kPa
94

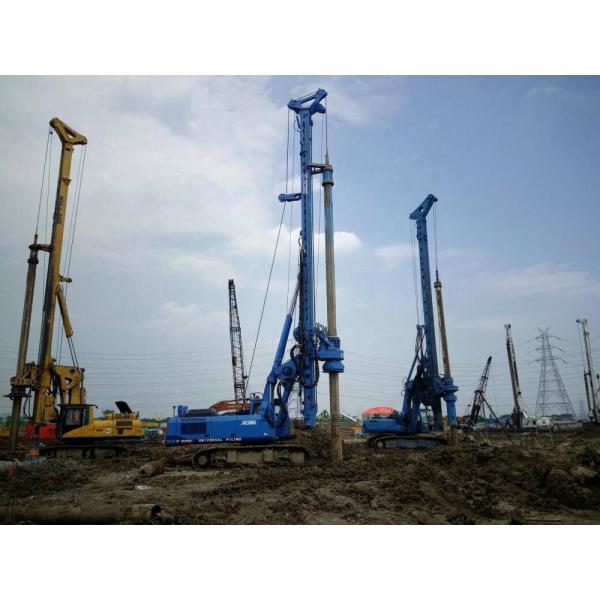

Product picture

XCMG Water Well Drilling Machine XR180D 58000kg Electric Power TypeXCMG Water Well Drilling Machine XR180D 58000kg Electric Power TypeXCMG Water Well Drilling Machine XR180D 58000kg Electric Power TypeXCMG Water Well Drilling Machine XR180D 58000kg Electric Power Type
