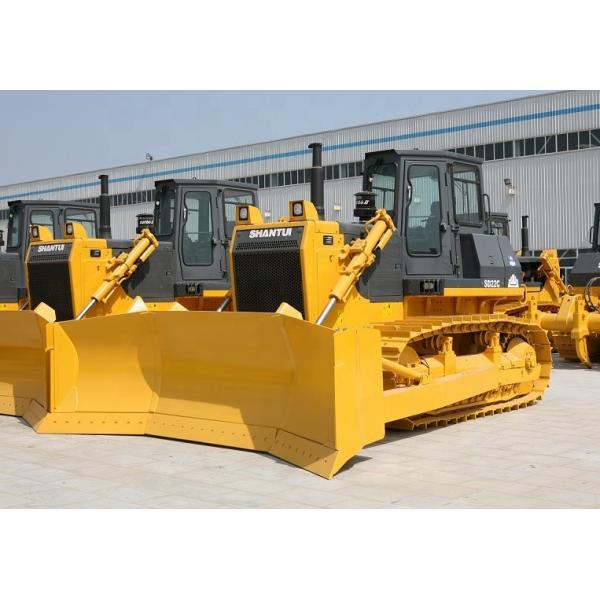

SHAN TUI Power 230HP Heavy Machine Bulldozer Straight - Tilt Blade With Angle Blade With Semi - U Blade
SHAN TUI Power 230HP Heavy Machine Bulldozer Straight - Tilt Blade With Angle Blade With Semi - U Blade
SHAN TUI Power 230HP Heavy Machine Bulldozer Straight - Tilt Blade With Angle Blade With Semi - U Blade
SHAN TUI Power 230HP Heavy Machine Bulldozer Straight - Tilt Blade With Angle Blade With Semi - U Blade
SHAN TUI Power 230HP Heavy Machine Bulldozer Straight - Tilt Blade With Angle Blade With Semi - U Blade
SHAN TUI Power 230HP Heavy Machine Bulldozer Straight - Tilt Blade With Angle Blade With Semi - U Blade
Specifications
Brand Name :
SHAN TUI
Model Number :
SD23
Certification :
ISO CE
Place of Origin :
Shandong, China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
30days
Packaging Details :
Nude
Dimension(L*W*H) :
5528*3725*3741
Rated Power :
230HP
Condition :
New
Gross power(kw/rpm) :
179/240/2000
Engine :
Cummins NT855-C280S10
Dozing capacity :
7.8/8.4/5.4
Blade size W*H(mm) :
3725*1395/3860*1379/4365*1107
Description

SHAN TUI Heavy Machine Bulldozer SD23 Bulldozer Power 230HP Straight-tilt Blade With Angle Blade With Semi-U Blade

Quick Details

Machine Weight:24.6

Dimension(Long * Breadth * High):5528*3725*3741

Warranty:1 Year

After-sales Service Provided:Video technical support, Online support

Place of Origin:Shandong, China

Brand Name:SHANTUI

Condition:New

Moving Type:Crawler Bulldozer

engine:Cummins NT855-C280S10

gross power(kw/rpm):179/240/2000

net power(kw/rpm):169/230/2000

blade type:straight tilt blade/Ublade/semi-U blade/angle blade

blade size W*H(mm):3725*1395/3860*1379/4365*1107

dozing capacity:7.8/8.4/5.4

max drop below ground of blade:540/540/560

lift height of blade:1210/1210/1240

number of carriers(each side):2

number of track rollers(each side):7

Supply Ability

Supply Ability:

100 Unit/Units per Month

Packaging & Delivery

Packaging Details

Nude

Port

Shanghai Qingdao

Lead Time :

Quantity(Units) 1 - 1 >1
Est. Time(days) 7 To be negotiated

Product Description

SD23 crawler bulldozer adopts advanced technologies, including hydraulic drive, hydraulic control, electronic monitoring, and high capacity blade, and is fitted with ROPS, hexahedron cab with good visual field, air conditioning system, and ergonomic control system, featuring reasonable structure, advanced performances, and simple operations.

1.The high power Cummins NT855-C280S10 with high-efficiency turbocharger is equipped to expand the high-efficiency working zone of engine and achieve lower fuel consumption.

2.The mature and stable hydraulic torque converter, the high reliability power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability.

3.The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.

4.The full box-type main frame features high carrying capacity against impact load and bending moment, in which the application of high performance materials and high strength castings makes the main frame stronger and the high quality welds guarantee the life cycle of the main frame.

5.The advanced fuel-saving hydraulic circuit features low energy consumption and convenient maintenances, with the working pressure up to 19.1MPa.

6.The integrally injection molded instrument panel features beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market.

7.The chassis system features powerful traction and durability and high adaptability and stability under various complicated working conditions.

8.In accordance with ergonomic principles, the gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver with adoption of servo control system, featuring light and flexible controls.

9.The standard straight tilting blade features powerful cutting force and durability, with optional U-blade at the user's choice. The single-shank ripper features adjustable penetrating angle and powerful penetrating force, with optional three-shank ripper and traction frame at the user's choice.

Parameter

230 HP
SD23
Technical
specifications:		 Blade Type Straight-tilt Angle U-Blade
Min. ground clearance: 405 mm 405 mm 405 mm
Operating weight: 23.45 t 23.67 t 24.6 t
Min. turning radius: 3.3 m 3.3 m 3.3 m
Ground pressure: 0.078 MPa 0.078 MPa 0.078 MPa
Gradeability: 30° 30° 30°
Track gauge: 2000 mm 2000 mm 2000 mm
ENGINE Model & type

Cummins NT855-C280S10; in-line, water-cooled;

4-cycle, overhead valve direct injection,

turbocharged diesel
Rated revolution 2000 rpm
Rated power 169 kW
Number of cylinders 6—139.7 x 152.4 mm (bore x stroke)
Piston displacement 14.010 L
Min. fuel consumption 217 g/kW·h
Maximum torque 1036 N·m@1400rpm

POWER

TRANSMISSION

SYSTEM

 Torque converter 3-element, 1 stage, 1 phase
Transmission

Planetary gear, multi-disc clutch,

hydraulically connected, forced lubrication
Main drive

Spiral bevel gear, splash lubrication,

single-stage speed reduction
Steering clutch

Lubricated, multidisc, spring loaded,

hydraulically separated, hydraulic control
Steering brake

Lubricated, floating, direct on-off hydraulic

inter-linking operation
Final drive

2-stage speed reduction of spur gear,

splash lubrication
TRAVELSPEED Gear 1st 2nd 3rd
Forward 0~3.8 km/h 0~6.8 km/h 0~11.8 km/h
Reverse 0~4.9 km/h 0~8.5 km/h 0~14.3 km/h

UNDERCARRIAGE

SYSTEM

 Type

Swing type of sprayed beam,

suspended structure of equalizer bar
Carrier rollers 2 each side
Track rollers 7 each side (single flange 5, double flange 2)
Track type 39 each side (assembled single-tooth shoes)
Width of track shoes 560 mm
Pitch 216 mm

HYDRAULIC

SYSTEM

 Maximum pressure 19.1 MPa
Pump type Gear pump
Discharge (Tondem 2000 rpm) 194 (2000 rpm) L/min
Bore of working cylinder × no. 110 mm × 2
BLADE Blade type Straight-tilt Angle U-blade
Dozing capacity 7.8 m3 5.4 m3 8.4 m3

Efficiency

(Theoretical value 40 m)

 330 m3/h 245 m3/h 365 m3/h
Blade width 3725 mm 4365 mm 3860 mm
Blade height 1395 mm 1107 mm 1379 mm
Maximum drop below ground 540 mm 560 mm 540 mm
Maximum tilt adjustment >1210 mm >1240 mm >1210 mm
Weight of blade 2900 kg 3372 kg 3350 kg

RIPPER

(OPTIONAL)

Maximum digging depth

of 3-shank ripper

 666 mm
Maximum lift above ground 555 mm
Weight of 3-shank ripper 2495 kg

Maximum digging

depth of single ripper

 695 mm
Maximum lift above ground 515 mm
Weight of single ripper 2453 kg
